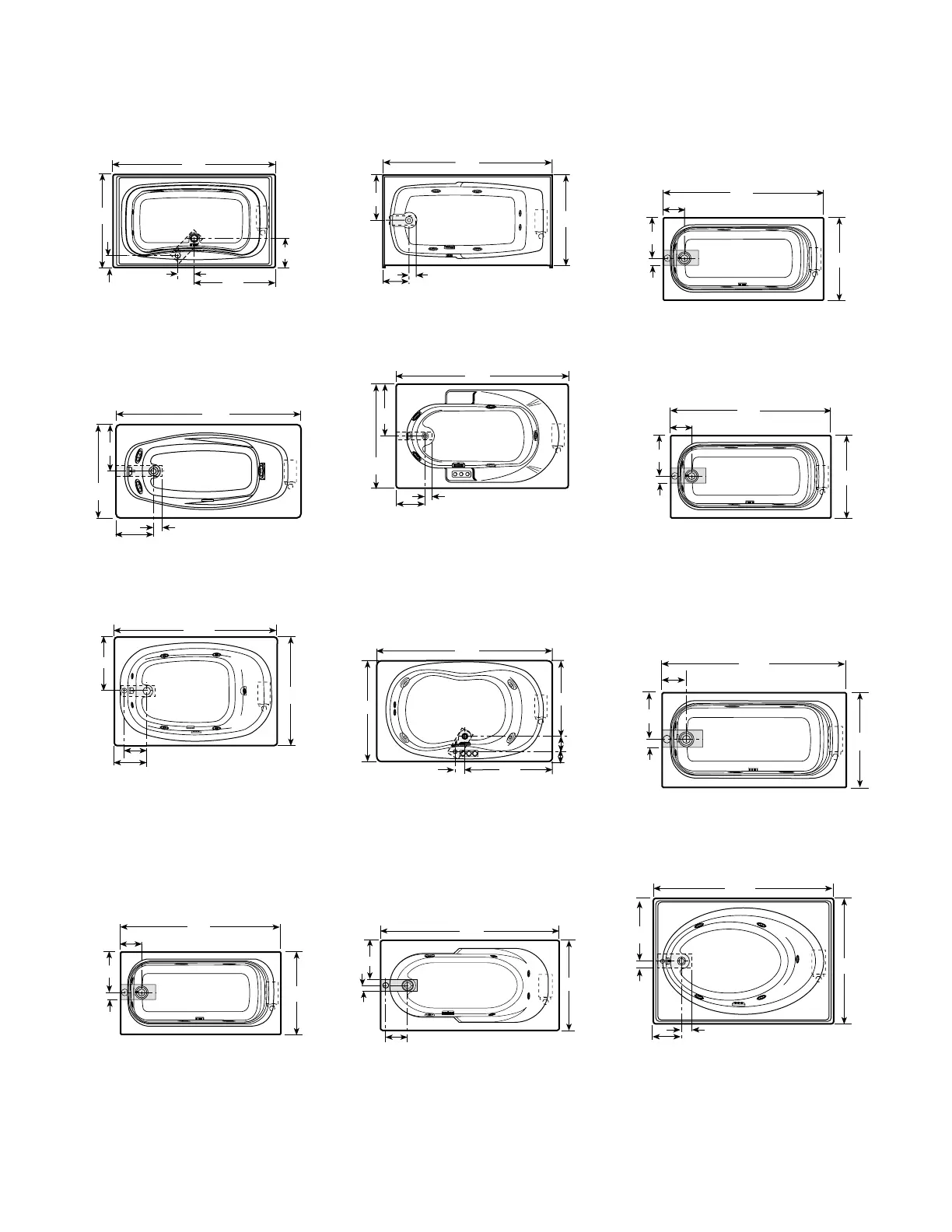

ROUGHING-IN REFERENCE
DIAGRAMAS EN PLANTA DE INSTALACIONES
Note: Unless otherwise specified, units are produced with left or right-hand versions.
Nota: Si no se ha especificado de otra manera, las unidades se ofrecen con la bomba a la izquiera o a la derecha.
LUXURA 5.5
15" x 5"
2-1/2"
* 66"
17"
34"
8-3/8"
2-1/2"
* 60"
16"
32"
15" x 5"
8-1/4"
LUXURA 5 WITH INTEGRAL SKIRT
LUXURA 5 CON FALDÓN INTEGRADO
MADIRA
* 60"
21''
42''
2''
2''
11" x 4"
8-1/2''
ALARIS
13-5/16"
36"
11 -
1/4"
5"
42"
* 72"
18-1/2" x 5"
AMIGA
* 72''
18''
36''
2''
16'' x 4''
14''
BIANCA
* 72"
24"
48"
8-1/2"
13-3/4"
13-1/2" x 4"
(Left-hand only as shown.)
(Mano izquierda (como mostrado) solamente)
