Jacuzzi J - 415 User Manual

Page 14
J-400

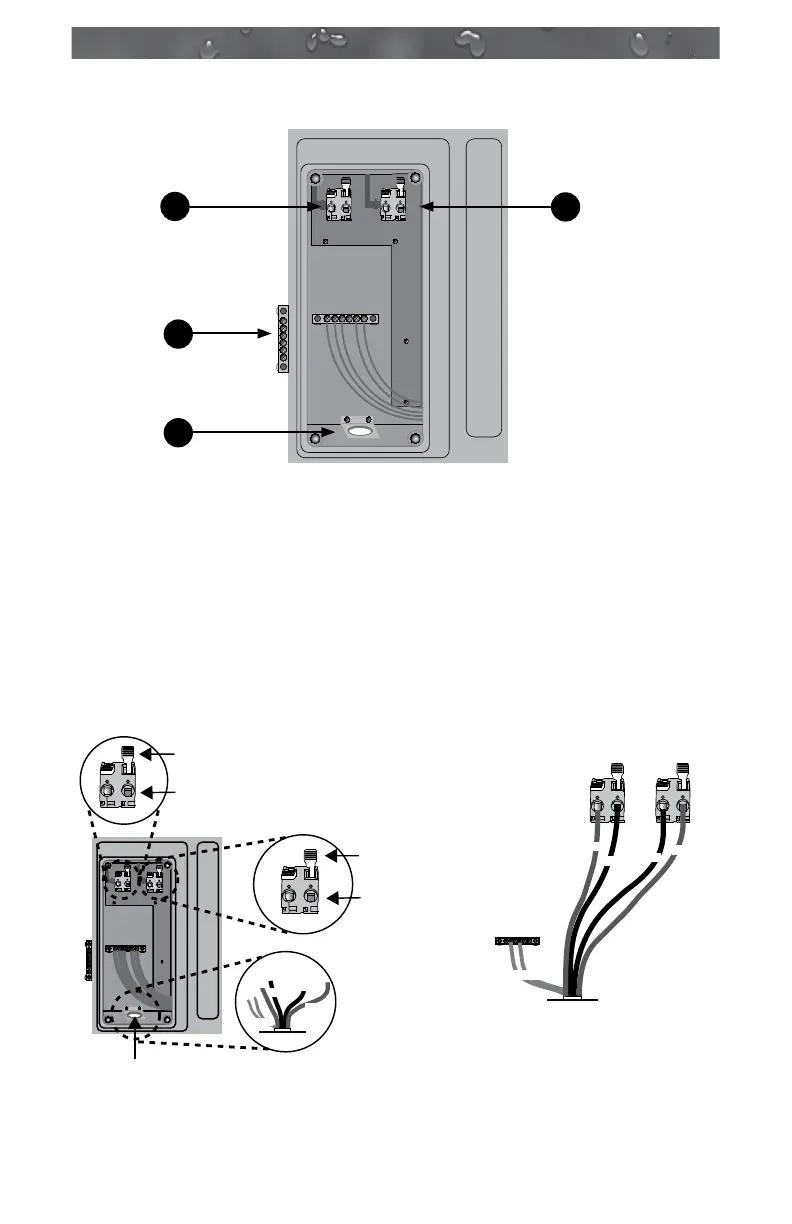

Figure D

L2L1L1L2
1. Main Terminal Block
2. Heater Terminal Block
3. Bonding Lug/Grounding Terminal
4. Power wires Entrance (Electrical tting and conduit must be
installed)
Figure E
Terminal Connection
(Export 230 VAC 50 Hz Connection Shown)
** May only require one green
grounding wire. Check your local
country codes.
*Electrical tting and conduit must be installed
L2
L1
L1
L2
Main Terminal Block
Lift white lever
by hand to pry
open the connector
Insert power
wires, secure
connection and
put the white lever
down
Power In*
L2
L1
Heater Terminal Block
Lift white lever
by hand to pry
open the connector
Insert power wires,
secure connection
and put the white lever
down
L1
L2
Power In
*
Green**
BRW
BRW
BLU
BLU
Power In
*
Main
Terminal
Block
Grounding
Lug
L2L1
L1L2
Heater
Terminal
Block
Green**
BLU
BRW
BRW
BLU
3
1
4
2
