Jacuzzi J - 415 - Massage;Waterfall Selector Diagram

Page 33
J-400

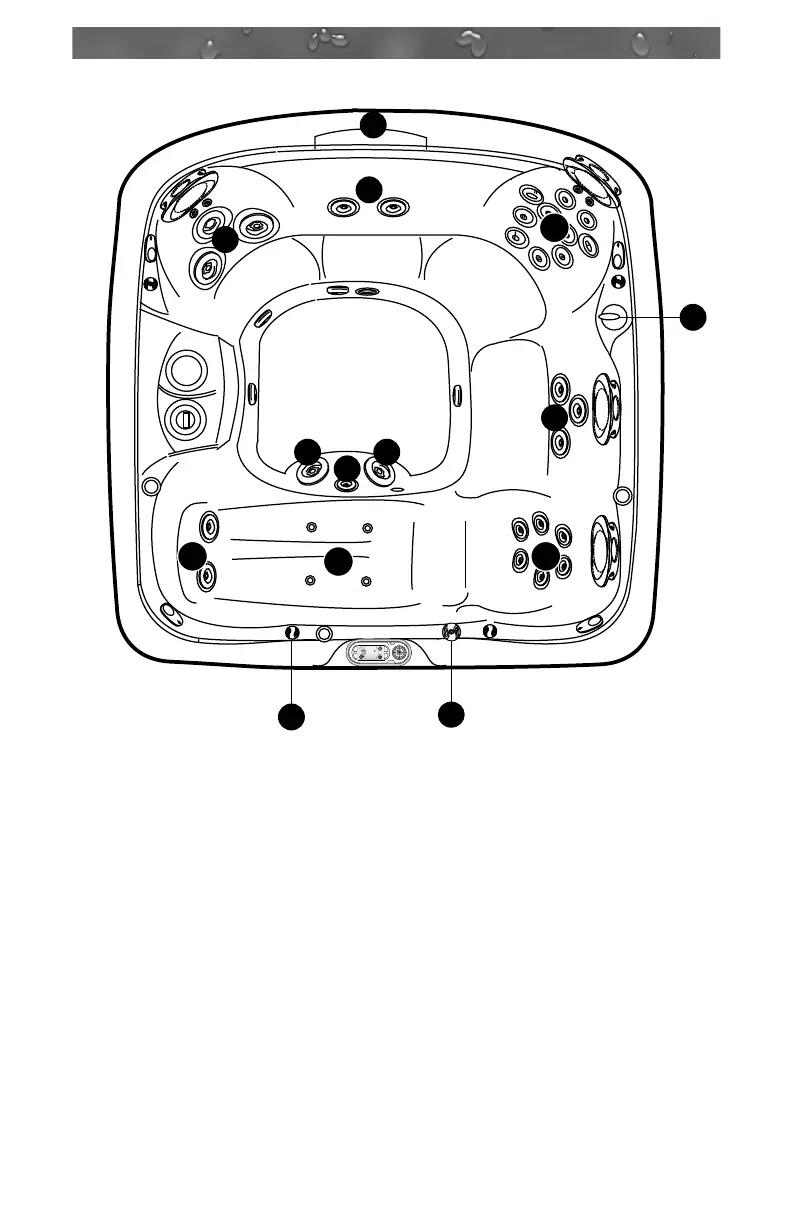

9.11 J-465 Massage/Waterfall Selector Diagram
Massage Selectors (1)
• Massageselector1divertsjetspumpNº1outputbetweenjetgroups
1a-1b.
Mass Aspiration Jet Flow Control Valve (2)
• Valve(2)controlsoutputtofootwellIXJet.
Waterfall Selector (3)
• Waterfallselector(3)controlscirculationpumpoutputtowaterfall.
Jets Without Massage Selector Controls (4)
• Jets(4)arealwaysonwhenjetspumpNº2isrunning.
98
F
4:05 PM
1a
1b
1b
1b
4
4
4
44
1
2
3
3
2
Spa operation subject to change without notice
