JET/AIR CONTROLS J-480
J-480

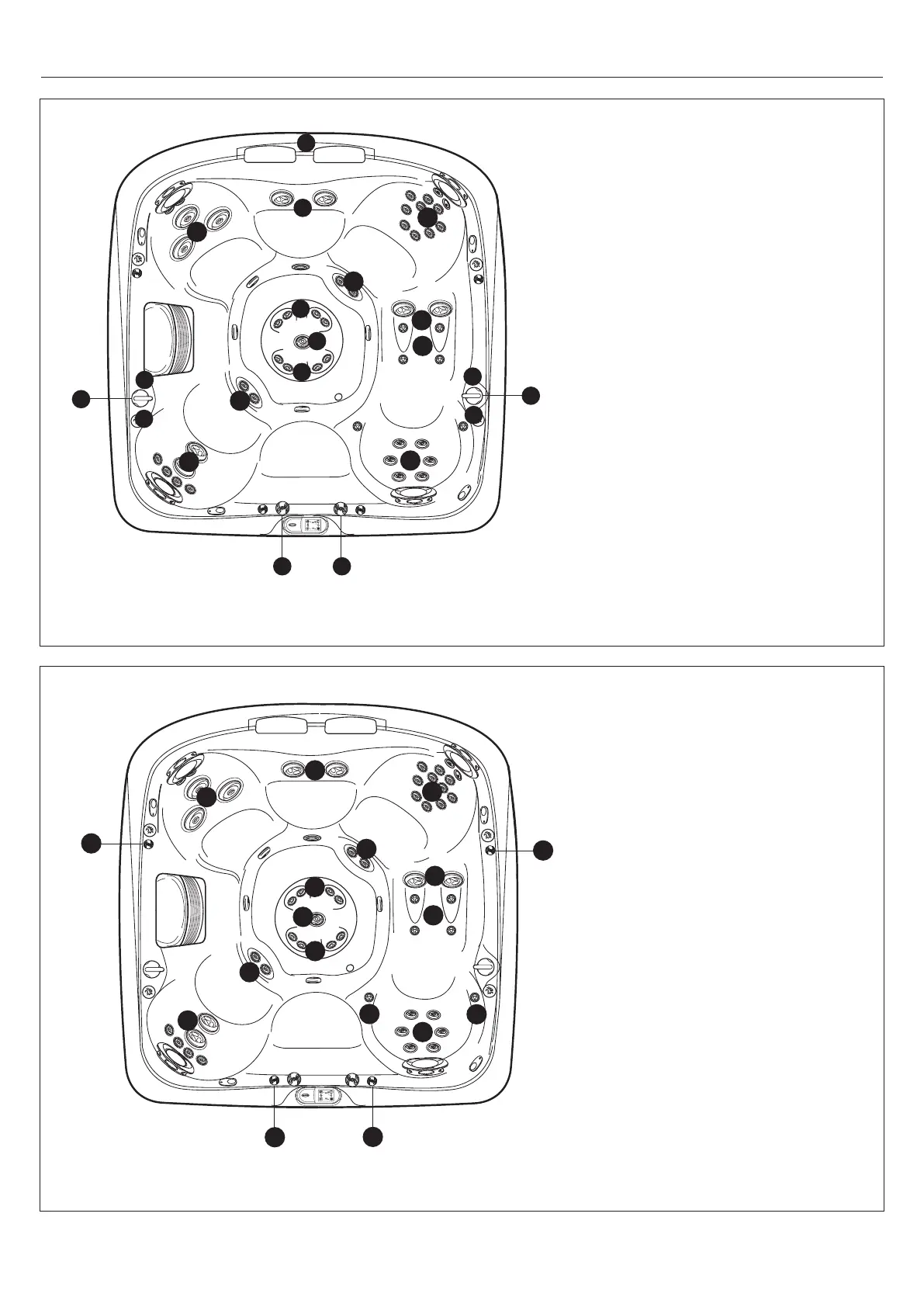

Air Controls Operation
• Rotate air controls 1-4 to add air to desig-
nated jet groups.
• Center footwell IX Jet (5) draws air at all times
when jets pump is running. This jet has no air
control.
J-480
Massage Selectors (1-2)
• Massage selector 1 diverts pump 1 output
between jets groups 1a-1b.
• Massage selector 2 diverts pump 2 output
between jet groups 2a-2b.
Waterfall Selector (3)
• Waterfall selector 3 controls circulation
pump output to waterfalls.
IX Jet Flow Control Valve (4)
• Valve (4) controls output to footwell IX Jet
when jets pump 2 is running.
Jets Without Massage Selector Controls
(5)
• Jets 5 are always on when jets pump 1 is run-
ning.
