35
J-470
A. Control Panel
B. Waterfall Control Valve
C. Air Control Valve (4 ea.) Introduce Air to Specified Jet
Groups
D. Optional Audio System Speaker (4 ea.)
E. Adjustable Pillows (4 ea.)
F. Cup Holder (4 ea.)
G. Massage Selectors (2 ea.) Controls Specified Jet Groups
H. Waterfalls (2 ea.)
I. FX Jets (6 ea.)
J. ProClearTM Plus Polishing Filter Bag
K. ProClearTM Floating Skimmer And Filter Cartridge with In-
tegrated Chemical Dispenser.
L. NX Jets (2 ea.) And MX2 Jets (3 ea.)
M. FX2 Jets (2 ea.)
N. NX Jets (2 ea.) And RX Jets (10 ea.)
O. FX2 Jet
P. Lighted Seat Logo
Q. Footwell Filter Suction Covers (3 ea.)
R. Bottom Filter Suction Cover
S. Waterfall Filtration Return
T. FX Calf Jets (2 ea.)
U. FX Footwell Jets (4 ea.)
V. IX suction jet (lighted)
W. Drain/heater input/optional ozone return fitting
X. Suction jet flow control valve (lighted)
Y. Optional Audio System Receiver
Z. FX Jets (4 ea.) FX2 Jets (2 ea.)
AA. iPod connector

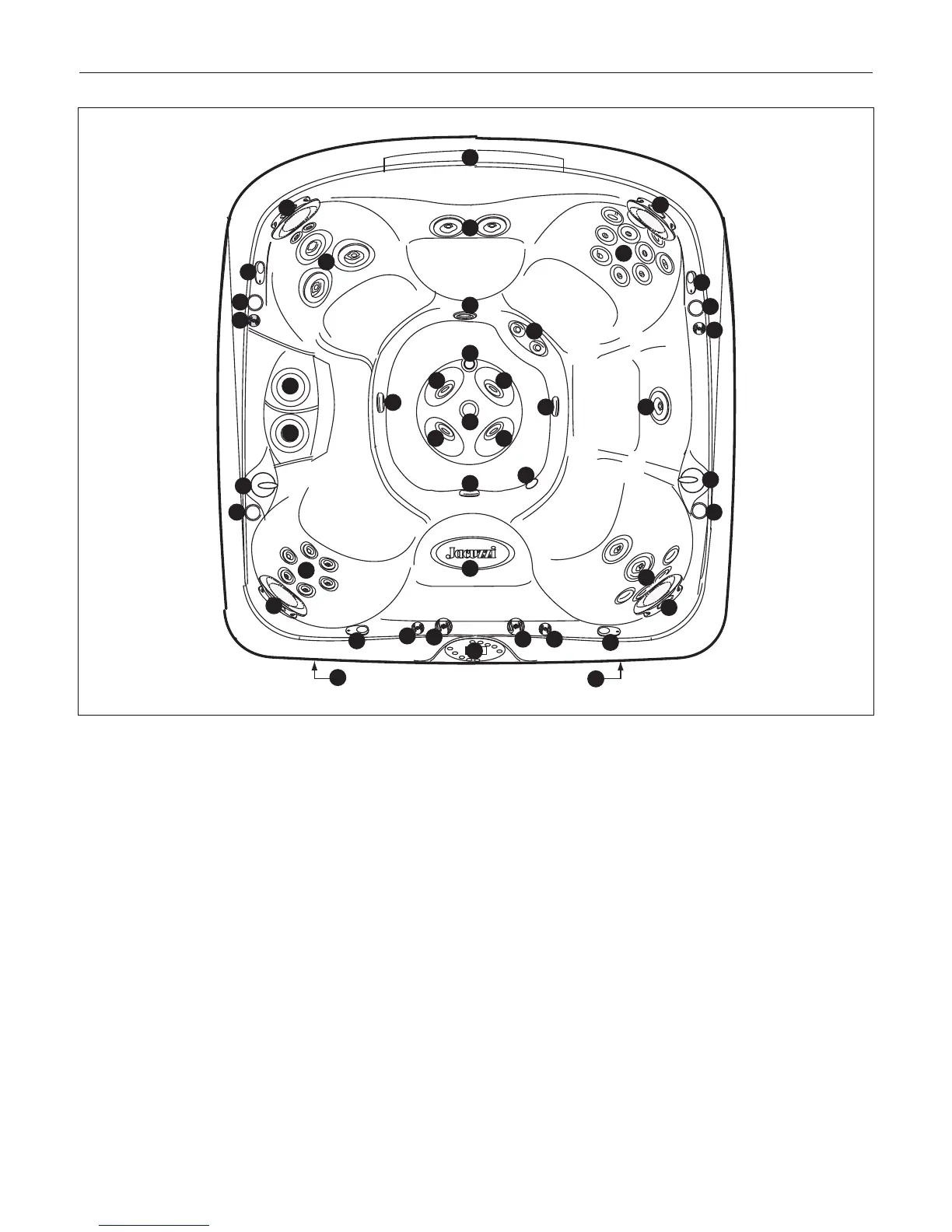

CHARACTERISTICS AND CONTROLS J-470
A
B
C
D
E
I
J
K
G
C
D
E
L
M
H
E
E
D
Z
D
G
F
F
F
F
N
O
S
R
P
X
C
V
Y AA
U U
UU
Q
Q
Q
T
W
C

Jacuzzi J - 480 Specifications

General

Circulation Pump	Yes
Stereo	Optional
Voltage	240V
Amperage	50A
Pump 1	2.5 HP
Pump 2	2.5 HP
Lighting	LED
Heater	SmartHeat™ Titanium Heater
