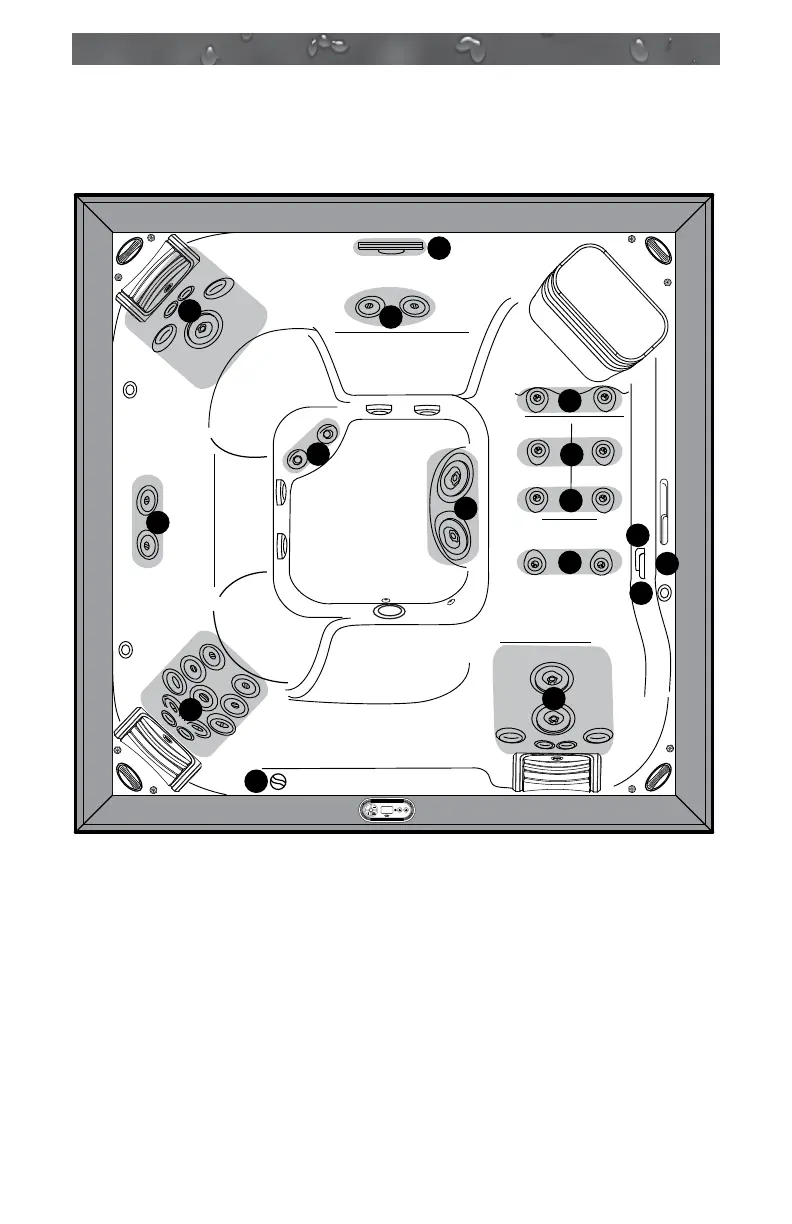

9.4 J-LXL Massage/Waterfall Selector Diagram
Massage Selector Operation
Rotate Massage Selector 1 to divert water between designated jet
groups.
1
+
_
2
2
2
2
1a
1b
1a
1
1b
1a
1b
3
3
b
1a
1a
a
Massage Selectors (1)
• Massage Selector #1 controls pump #1.
Jets (2)
• These jets are always on when the jets pump #2 is running.
Waterfall (3)
• Waterfall is on when the jets pump 1 is running. Waterfall valve con-
trols waterfall output (On/Off).
