4.3 OPTIMAL PATTERNING/CABLE
TANGLING
It is recommended to alternate the angle and direction
of the cleaning path every cleaning cycle to ensure the
cleaner is covering the whole pool, as well as prevent
cable tangling.
1. Turn the cleaner upside down. Locate the wheel
pins on the axle: one adjustable pin; one xed pin.
(Figure 8)
2. Reverse the positions of adjustable and xed
wheel pins (Figure 9).

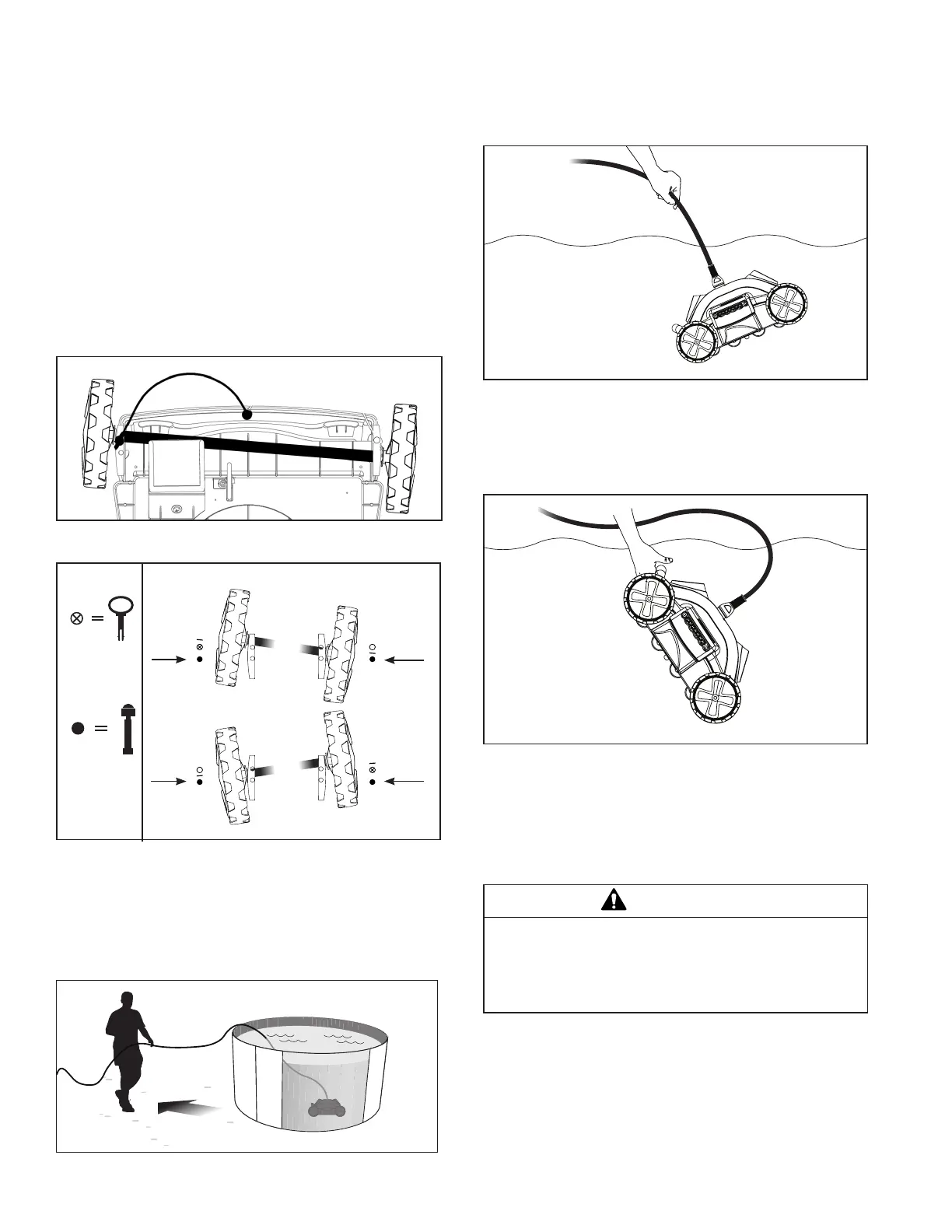

Figure 8. Change Wheel Turning Direction
Axle Position
Fixed
Pin
Adjustable
Pin
Figure 9. Alternate Wheel Axle Pins
4.4 REMOVE FROM POOL
1. Gently pull the oating cable to bring the cleaner
within arm's reach (Figure 10).
Figure 10. Bring Cleaner to Pool's Edge
2. Gently pull the cleaner up to the waterline
(Figure11).
Figure 11. Pull Cleaner to Waterline
3. Use the handle to lift the cleaner from the water
(Figure 12). Never lift the cleaner out of the pool
by the oating cable.
Figure 12. Lift Cleaner Using the Handle
4.5 REMOVE DEBRIS
For best performance, remove debris after every
cleaning cycle.
WARNING
To avoid electric shock and other hazards which could
result in permanent injury or death, disconnect (unplug)
the cleaner from the power source before performing
any cleaning and maintenance.
1. Unplug power to the cleaner at the control unit.
Unplug the control unit from the power source.
2. Push side tabs down and outward to release the
cleaner lid (Figure 13).
