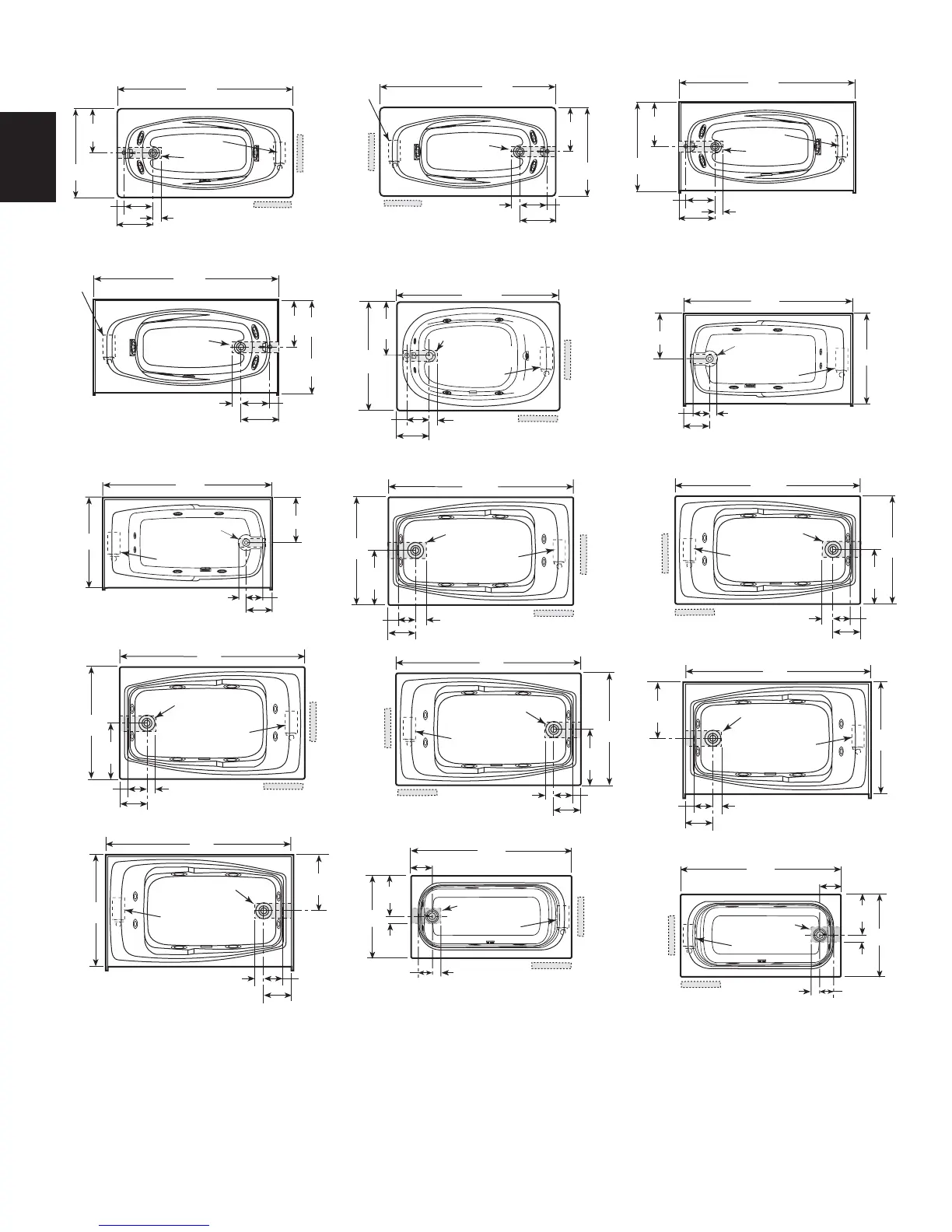

ROUGHING-IN REFERENCE (RECTANGULAR)
AMIGA™, Left Hand
*72''
18''
36''
2''
16'' x 4''
14''
12" H x 18" L Service Access
11-1/8''
Motor
Opt. Service Access
10
Jacuzzi Whirlpool Bath K272000AF 7/06
*72''
18''
36''
2''
16'' x 4''
14''
Motor
12" H x 18" L Service Access
Opt. Service Access
11-1/8''
AMIGA™, Right Hand
14-1/2"
AMIGA™ WITH INTEGRAL SKIRT,
Left Hand
*72''
36''
2''
16'' x 4''
11-1/8''
Motor
17-3/8"
*72''
36''
2''
16'' x 4''
14-1/2''
Motor
11-1/8''
AMIGA™ WITH INTEGRAL SKIRT,
Right Hand
17-3/8''
BIANCA™
*72"
24"
48"
8-1/2"
13-3/4"
13-1/2" x 4"
(Left-hand only as shown)
2"
Motor
12" H x 18" L Service Access
Opt. Service Access
*60"
32"
CETRA™ W/INTEGRAL SKIRT, Left Hand
15-5/8"
2"
10" x 4"
9-3/8"
5-11/16"
Motor
CETRA™ W/INTEGRAL SKIRT, Right Hand
*60"
32"
15-5/8"
2"
10" x 4"
9-3/8"
5-11/16"
Motor
9"
CETRA™ 532, Left Hand
*60"
32"
16"
12" x 4"
Motor
2"
5-3/4"
12" H x 18" L Service Access
Opt. Service Access
9"
CETRA™ 532, Right Hand
12" x 4"
Motor
2"
5-3/4"
12" H x 18" L Service Access
Opt. Service Access
*60"
32"
16"
9"
CETRA™ 536, Left Hand
*60"
36"
18"
12" x 4"
Motor
12" H x 18" L Service Access
Opt. Service Access
2"
5-3/4"
9"
CETRA™ 536, Right Hand
12" x 4"
Motor
12" H x 18" L Service Access
Opt. Service Access
2" 5-3/4"
*60"
36"
18"
9"
CETRA™ 536 WITH INTEGRAL SKIRT, Left Hand
*60"
36"
17-3/8"
12" x 4"
2"5-3/4"
Motor
9"
CETRA™ 536 WITH INTEGRAL SKIRT, Right Hand
12" x 4"
2"
5-3/4"
Motor
*60"
36"
17-3/8"
2-1/2"
*60"
16"
32"
12" x 5"
8-1/4"
LUXURA™ 5, Left Hand
Motor
12" H x 18" L Service Access
Opt. Service Access
2-1/2"
5-1/4"
LUXURA™ 5, Right Hand
2-1/2"
15" x 5"
8-1/4"
Motor
12" H x 18" L Service Access
Opt. Service Access
2-1/2"
5-1/4"
*60"
16"
32
"
ROUGHING-IN
*Add 1/4" (6,4 mm) to this dimension when roughing-in for 3-wall niche.
NOTE: 1. The overall dimensions are nominal with a tolerance of +0 and -1/4" (6,4 mm).
2. Service Access dimensions given are minimum. Service access is still required for units that do not have pre-installed Pump/Motor.
3. Measurements inside each unit represent cutout in floor to allow for drain/overflow.
4. All measurements are in inches. To convert to millimeters, multiply inches by 25.4.
5. Not all export units come with pre-installed Pump/Motor.
