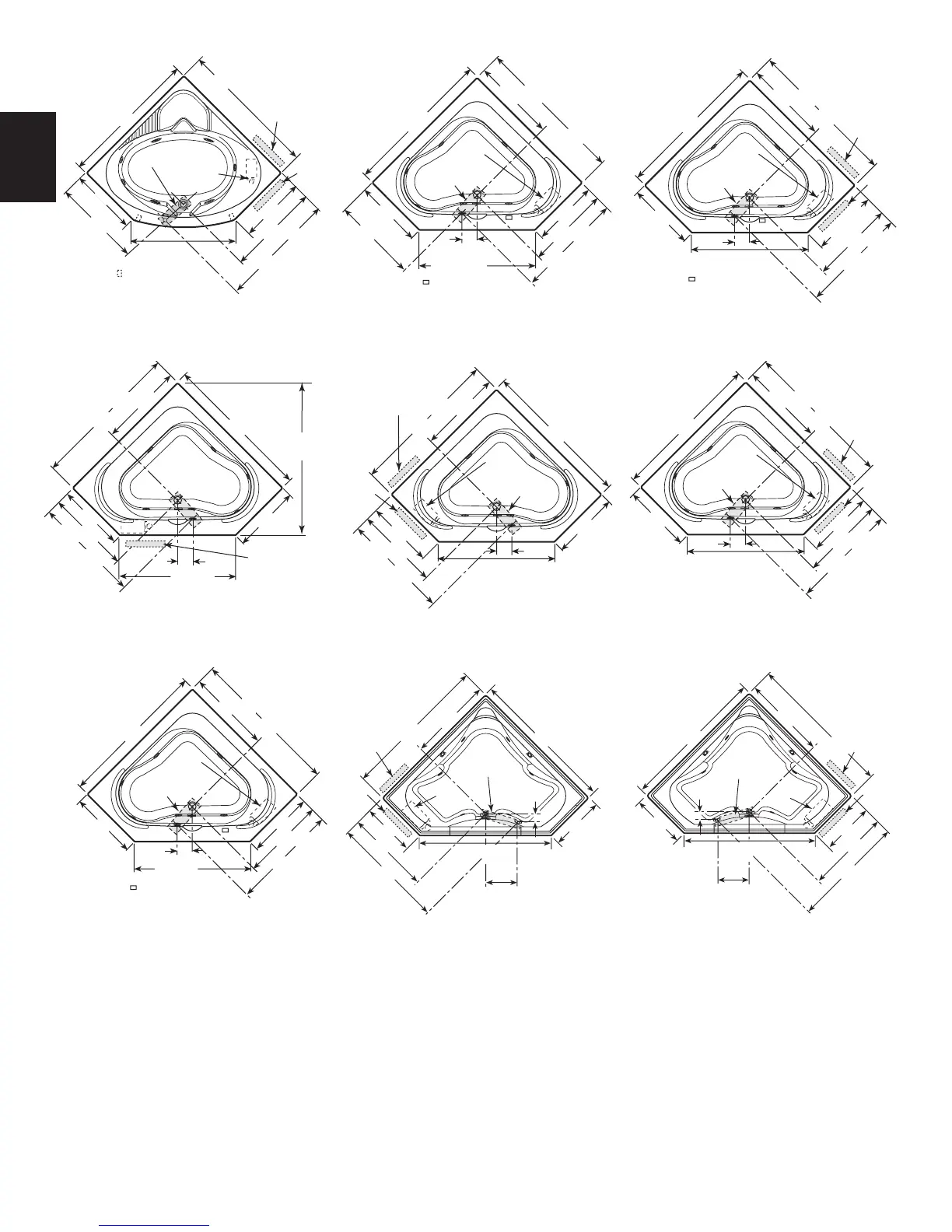

ROUGHING-IN REFERENCE (CORNER)
16
Jacuzzi Whirlpool Bath K272000AF 7/06
27"
27"
60"
43-1/8"
6"
60"
34-15/16"
14" X 4"
33-1/2"
46-5/8"
CAPELLA 60 w/FRONT LEFT MOTOR/PUMP,
Left Hand
Ref.
61-1/2
"
12" H x 18" L
Service Access
CAPELLA™ 55
55"
55"
27"
27"
39 1/2"
36 1/2"
44 1/2"
36 1/2"
12" x 4"
- 2" x 4" Stud
Motor
12" H x 18" L
Service Access
Opt.
Service
Access
(Right-hand only as shown)
CAPELLA™ 55 WITH INTEGRAL SKIRT
26"
40-7/16"
26"
55"
43-7/8"
9-7/8"
55"
32-1/2"
16" X 4"
32-1/4"
29-3/8"
- Junction Box
Motor
(Right-hand only as shown)
CAPELLA™ SPACESAVER
25-1/4"
49"
25-1/4"
60"
41-9/16"
6"
60"
33-13/16"
14" X 4"
33-13/16"
- Junction Box
Motor
Service
Access
Opt.
Service
Access
(Right-hand only as shown)
CAPELLA™ 60, Left Hand
27"
46-5/8"
27"
60"
43-1/8"
6"
60"
34-15/16"
14" X 4"
33-1/2"
Motor
12" H x 18" L
Service
Access
Opt.
Service
Access
CAPELLA™ 60, Right Hand
27"
46-5/8"
27"
60"
43-1/8"
6"
60"
34-15/16"
14" X 4"
33-1/2"
Motor
Service
Access
Opt.
Service
Access
CAPELLA™ 60 WITH INTEGRAL SKIRT
27"
46-5/8"
27"
60"
43-1/8"
6"
60"
34-15/16"
14" X 4"
33-1/2"
- Junction Box
Motor
(Right-hand only as shown)
60"
24"
24"
34"
47-3/4"
19" X 4"
7-1/2"
13"
34"
60"
GALLERY™ CORNER, Left Hand
50-1/4"
Motor
Service
Access
Opt.
Service
Access
GALLERY™ CORNER, Right Hand
60"
24"
24"
34"
47-3/4"
19" X 4"
7-1/2"
13"
34"
60"
50-1/4"
Motor
Service
Access
Opt.
Service
Access
ROUGHING-IN
NOTE: 1. The overall dimensions are nominal with a tolerance of +0 and -1/4" (6,4 mm).
2. Service Access dimensions given are minimum. Service access is still required for units that do not have pre-installed Pump/Motor.
3. Measurements inside each unit represent cutout in floor to allow for drain/overflow.
4. All measurements are in inches. To convert to millimeters, multiply inches by 25.4.
5. Not all export units come with pre-installed Pump/Motor.
