Jacuzzi Premium J-325 - Page 17

17

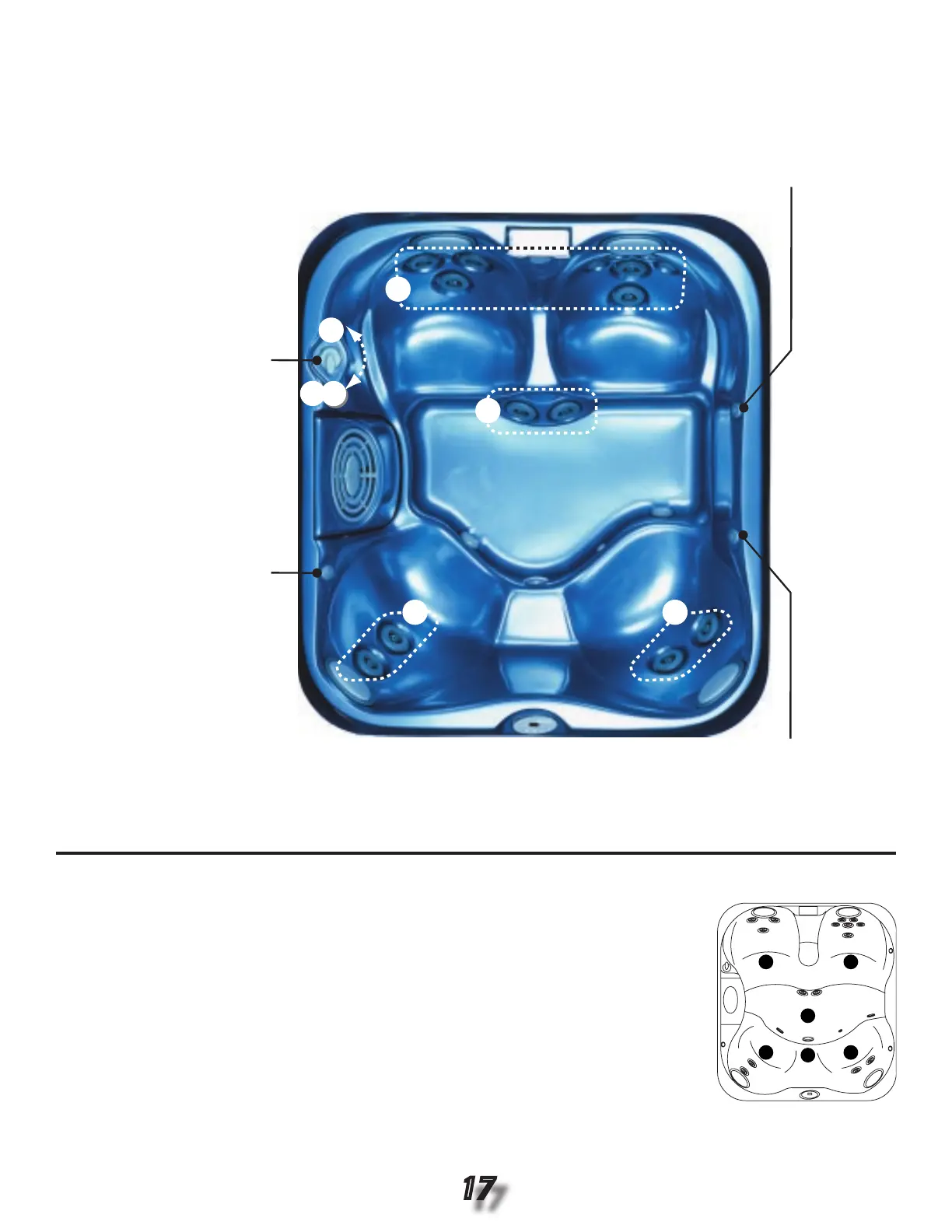

Jet Selector / Air Control Operation Diagram
Seat Depths
A = 27.00” (68.6cm) F = 31.25” (79.4cm) Listed Dimensions
B = 27.25” (69.2cm) Represent Distance from
C = 25.75” (65.4cm) Top of Acrylic to Lowest
D = 21.50” (54.6cm) Point in Seat.
E = 28.00” (71.1cm)
Dimensions/Speci cations Subject to Change Without Notice
A
Jet Selector:
Directs Jet Pump
Output Between
Jet Groups A or
B&C
Air Control 3:
Opens / Closes
Air Inlet to Jet
Group C
Air Control 1:
Opens / Closes
Air Inlet to Jet
Group
A
Air Control 2:
Opens / Closes
Air Inlet to Jet
Group
B
B
A
B
C
B
C
E
F
D
C
B
A
