INSTALLATION GUIDE – SIDE PANELS
Installing Side Panels
If you are using side panels with the Jade™ built-in refrig-
erator, they will need to be
1
⁄4" (0.6 cm) thick. Slide the
panel into position and secure with screws as indicated
by the shaded area (FIG. 11a). A
3
⁄16" spacer is required
between the cabinet and side panel (FIG. 11b). A
1
⁄2" thick by
10
1
⁄4 " tall spacer is required if the side panel extends up
into the machine compartment area on the refrigerator
side (FIG. 11c).

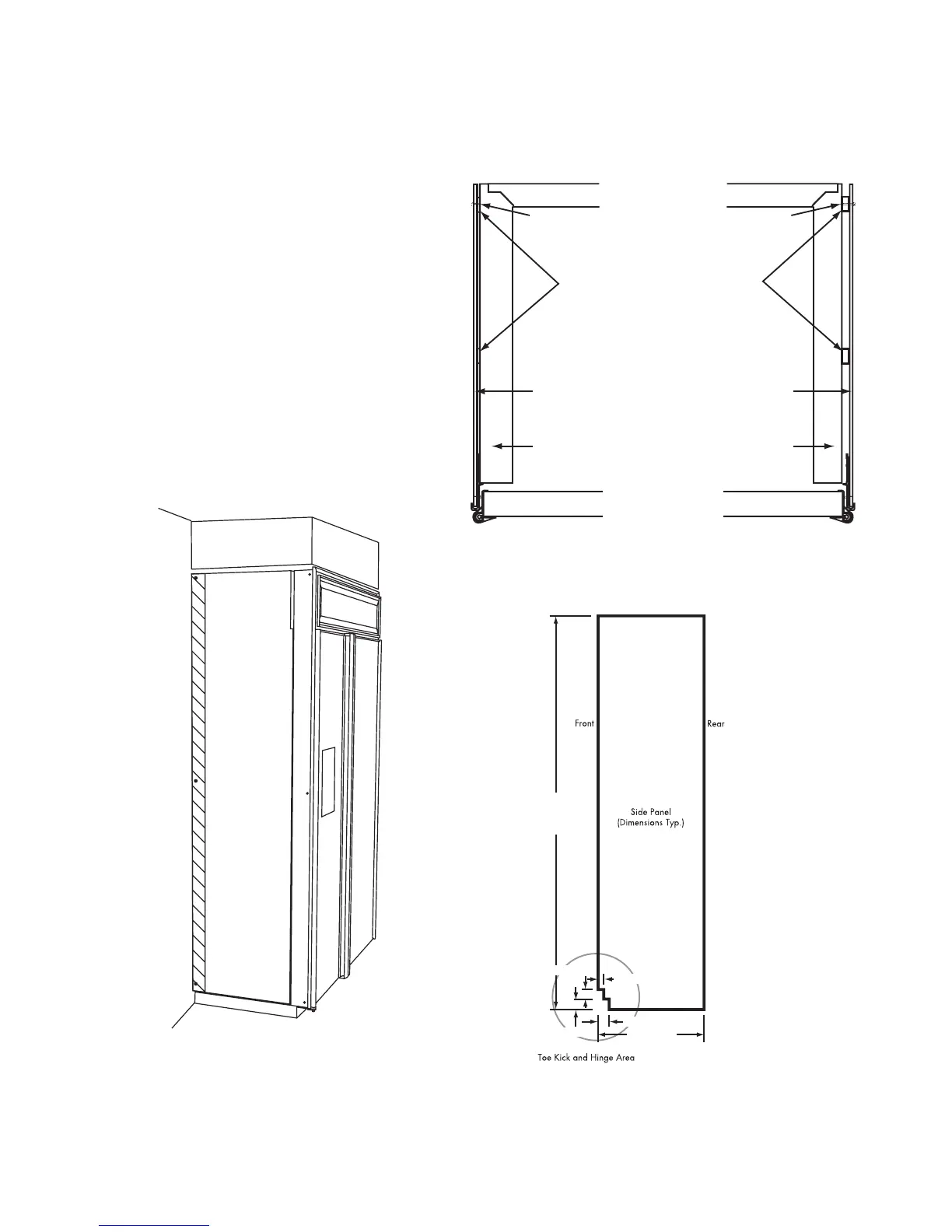

FIG. 11a
FIG. 11c
FIG. 11b
1
/4" side panel fi tted up to
the cabinet trim (top view)
of freezer side.
1
/4" side panel fi tted up to
the cabinet trim (top view)
of refrigerator side.
backside of unit
#8-32
1
/2" screw
3
/16" (0.48 cm)
spacers
1
/4" (0.64 cm) side panel
freezer side of unit
door door
backside of unit
#8-32
1
/2" screw
1
/2" (1.27 cm) spacers
on the side of machine
compartment (
3
/16"
(0.48 cm) below the
machine compartment)
1
/4" (0.64 cm) side panel
refrigerator side of unit
16
82
13
/16"
(210.3 cm)
1
3
/8" (3.5 cm)
2
7
/16" (6.9 cm)
3
/8" (0.95 cm)
24" (61 cm)
2
1
/2" (6.35 cm)
