INSTALLATION GUIDE – FRAMED MODEL PANELS
!
CAUTION
Refrigerator Panel Weight Not to Exceed
50 lbs. (22.36 kg)
Total Freezer Panel Weight Not to Exceed
33 lbs. (14.96 kg)
Grille Panel Weight Not to Exceed 22 lbs.
(9.97 kg)
A.
1
/4" (10.6 cm) Framed Panel Specifications for Framed Models
Jade offers 42" and 48" dispenser and nondispenser models with the framed
design. The framed trim remains visible when using the framed panel instal-
lation. These models accommodate up to a
1
/4" (0.6 cm) panel depth.
Refer to page 20 for toe kickplate panel information.
If installing side panels, refer to page 19.
Important: Because of continuing product improvements, Jade reserves the right to change specifications without notice. Dimensional specifications are provided for
planning purposes only. For complete details see installation instructions packed with product before selecting cabinetry, making cutouts or beginning installation.

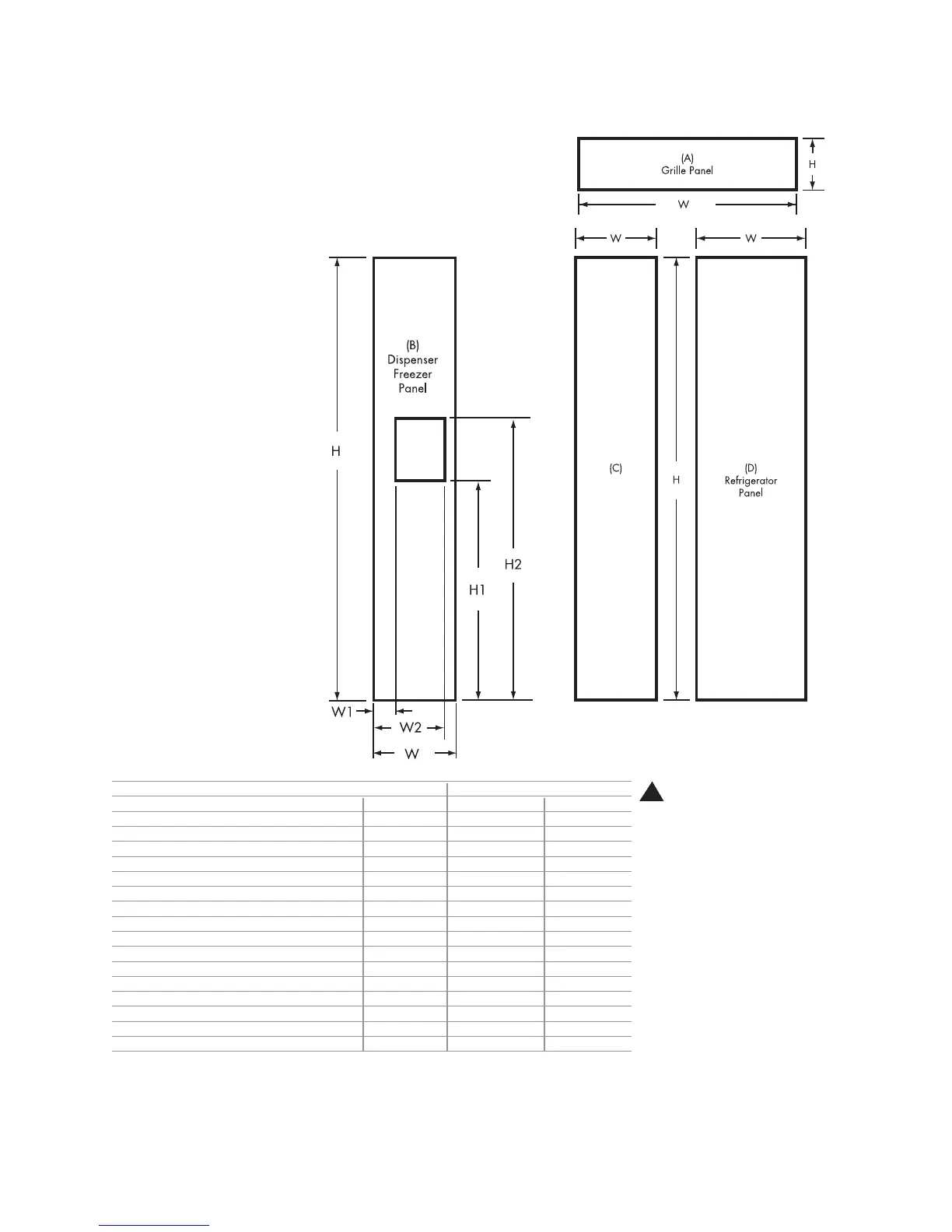

42"-Wide Cabinet 48"-Wide Cabinet
in. cm in. cm
(A) Grille Panel
W Width 40
1
/4 102.24 46
1
/4 117.47
H Height 8
3
/4 22.23 8
3
/4 22.23
(B) Freezer Dispenser Panel
W Width 15
1
/16 38.26 17
5
/16 43.97
W1 Width 2 5.08 2 5.08
W2 Width 14
1
/2 36.83 14
1
/2 36.83
H Height 69
1
/8 175.58 69
1
/8 175.58
H1 Height 34
1
/16 86.52 34
1
/16 86.52
H2 Height 48
1
/8 122.24 48
1
/8 122.24
(C) Freezer Nondispenser Panel
W Width 15
1
/16 38.26 17
5
/16 43.97
H Height 69
1
/8 175.58 69
1
/8 175.58
(D) Refrigerator Panel
W Width 22
5
/16 56.67 26
1
/16 66.20
H Height 69
1
/8 175.58 69
1
/8 175.58
10
Nondispenser
Freezer Panel
