Decorator panels for framed models cover the door trim for an
attractive, seamless look that flows into the overall design of the
room. Framed models include full-length extruded handles, unlike
overlay models. Attention must be paid
to hand clearance, or the depth of
space between the decorator panel and
the built-in handle. (See figures 12 and 13
on page 17 for more information.)
This application is often accomplished
by using three panels: the decorative
front panel, a spacer panel of .10" (2.5
cm) thickness and a
1
/4" (0.6 cm) backer
panel. Other options to achieve this
look (such as using one panel routed for
different dimensions) may be available
from your cabinet manufacturer.
Jade offers 42" and 48" dispenser and
nondispenser models with the framed
design.
Important: Because of continuing product improvements, Jade reserves the right to change specifications without notice. Dimensional specifications are provided for
planning purposes only. For complete details, see installation instructions packed with product before selecting cabinetry, making cutouts or beginning installation.
INSTALLATION GUIDE – FRAMED MODEL PANELS
B. Decorator Panel Specifications for Framed Models
Refer to page 20 for toe kickplate panel information.
If installing side panels, refer to page 19.
FIG. 8
FIG. 9

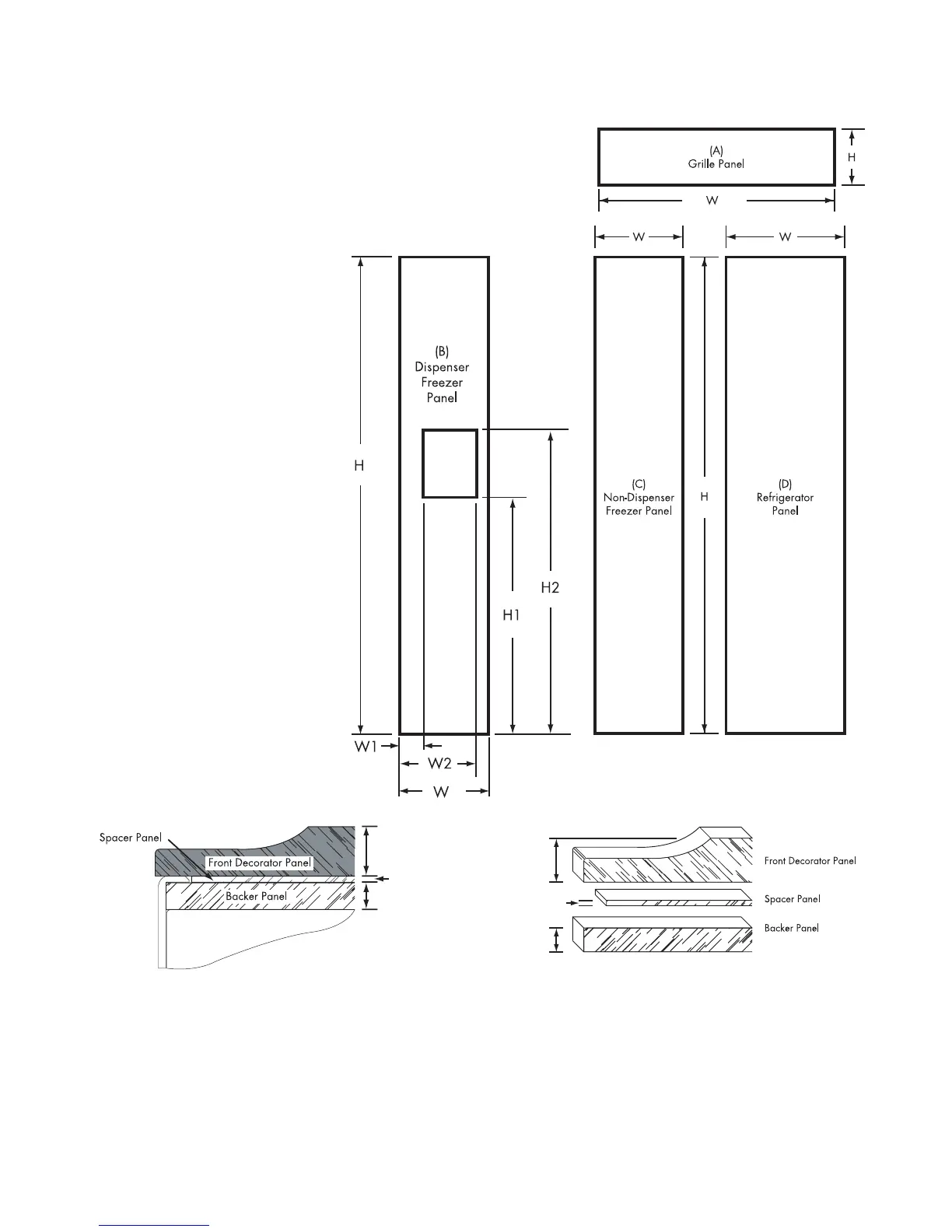

Figure 8 shows a cross-section view of the three-panel
assembly indicating the placement of the door/grille trim.
Figure 9 gives a rear view of the three-panel assembly and
important dimensions that are standard for framed and overlay
models. For routed-panel applications, the backer panel
dimension should not exceed
7
⁄32" (0.55 cm) thickness.
11
3
/4" (1.9 cm) Max.
1
/4" (0.6 cm)
3
/4" (1.9 cm) Max.
.10" (2.5 mm)
1
/4" (0.6 cm)
.10" (2.5 mm)
