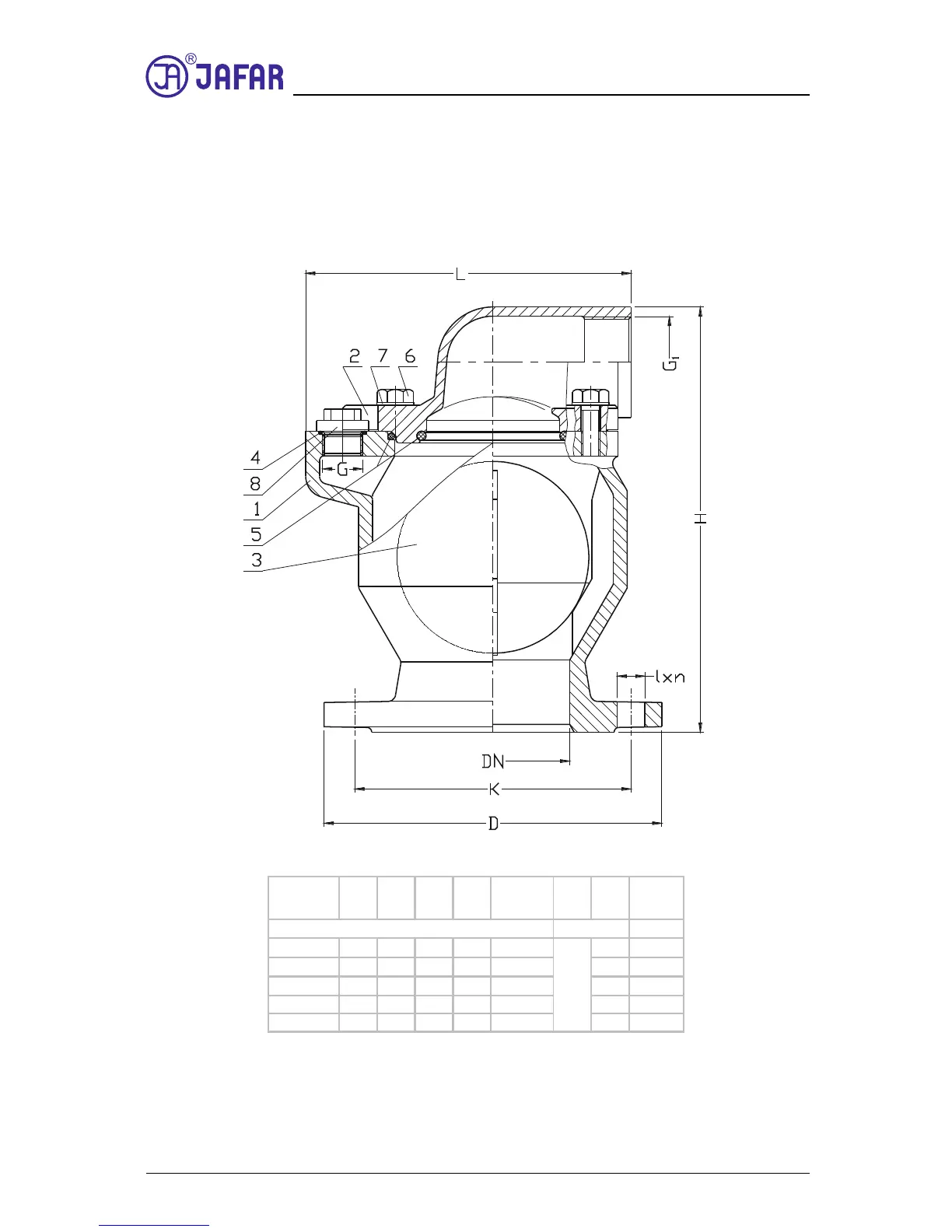

2.3 DIMENSIONS
TYPE 7010
DN H L D K l x n G
G
1
Masa
[kg]
50 / GW 2" 187 156 165 125 19x4 5/4" 7
80 242 195 200 160 19x8(4)* 2" 14
100 319 195 220 180 19x8 2" 18
150 350 265 285 240 23x8 3" 33
200 350 270 340 295 23x8(12)* 3" 34
[cal][mm]
3/4"
