Briza 12 - STAND ALONE / BUILT-IN - MANUAL - 9 juni 2020, 15:12
1” per 3ft

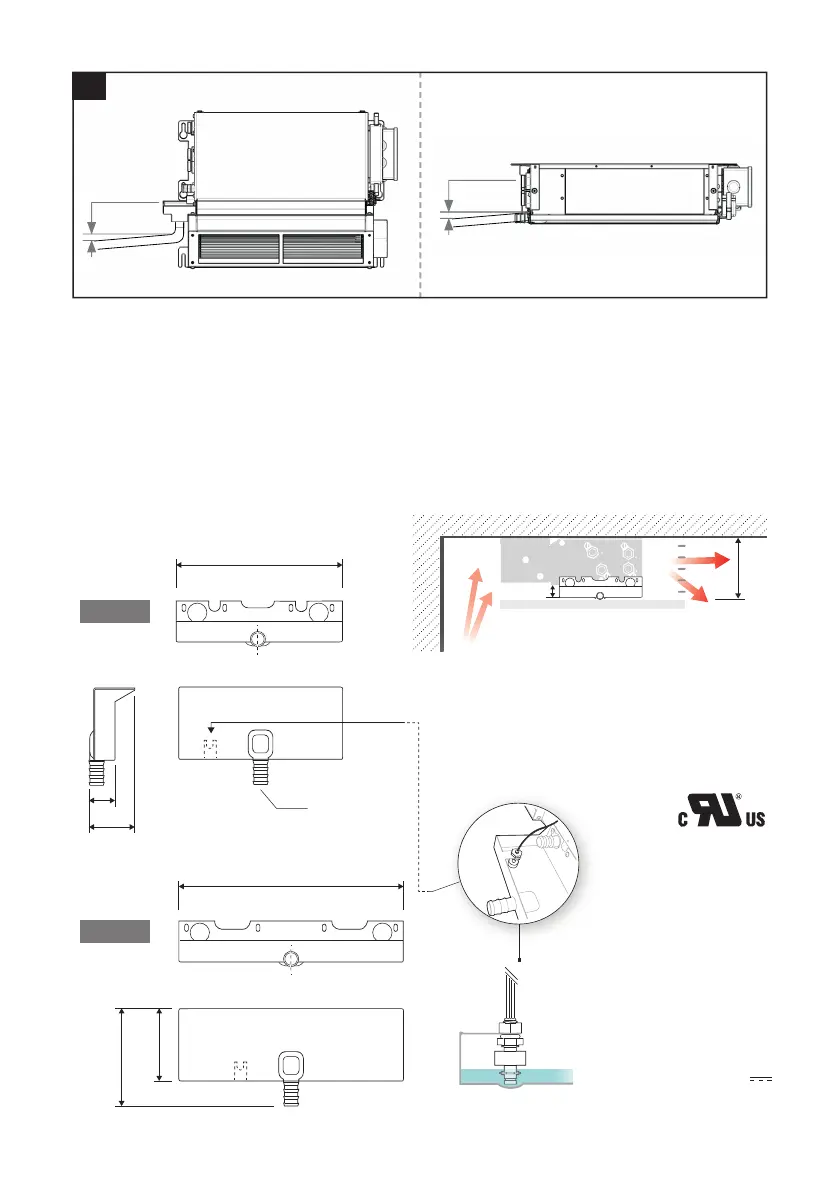

Setting up the condensate drain:
The condensate drain pipe must be installed with an adequate slope to make sure the water drains
properly.
The supply and return pipes for chilled water and their valves must be insulated against condensati-
on.
OPTION: secondary drain pan for Briza Built-In Ceiling
BRIZA H: ref. . / BRIZA H: ref. .
Ceiling
(≥ 15)
(2.8)
≥ 5 ⁄
1 ⁄
(Ø 2)
(128)
(95)
(3)
(5)
(29.5)
(21.5)
Ø ⁄
5 ⁄
3 ⁄
1 ⁄
1 ⁄
11 ⁄
8 ⁄
Briza H38
Briza H52
Option: condensate float switch
ref. .
switch features: Normally closed (NC)
white polypropylene silicone O-ring
E316052
Type switch 10W (NC)
Max. switching current 0,25 A
Max. switching voltage 100V
DC
Max. temperature 176°F
Max. pressure 25 PSIG
1” per 3ft
08
Wall
