Appendix B B -2
Revision 2 - 26 April, 2000 HP SERIES DIMMER TECHNICAL MANUAL

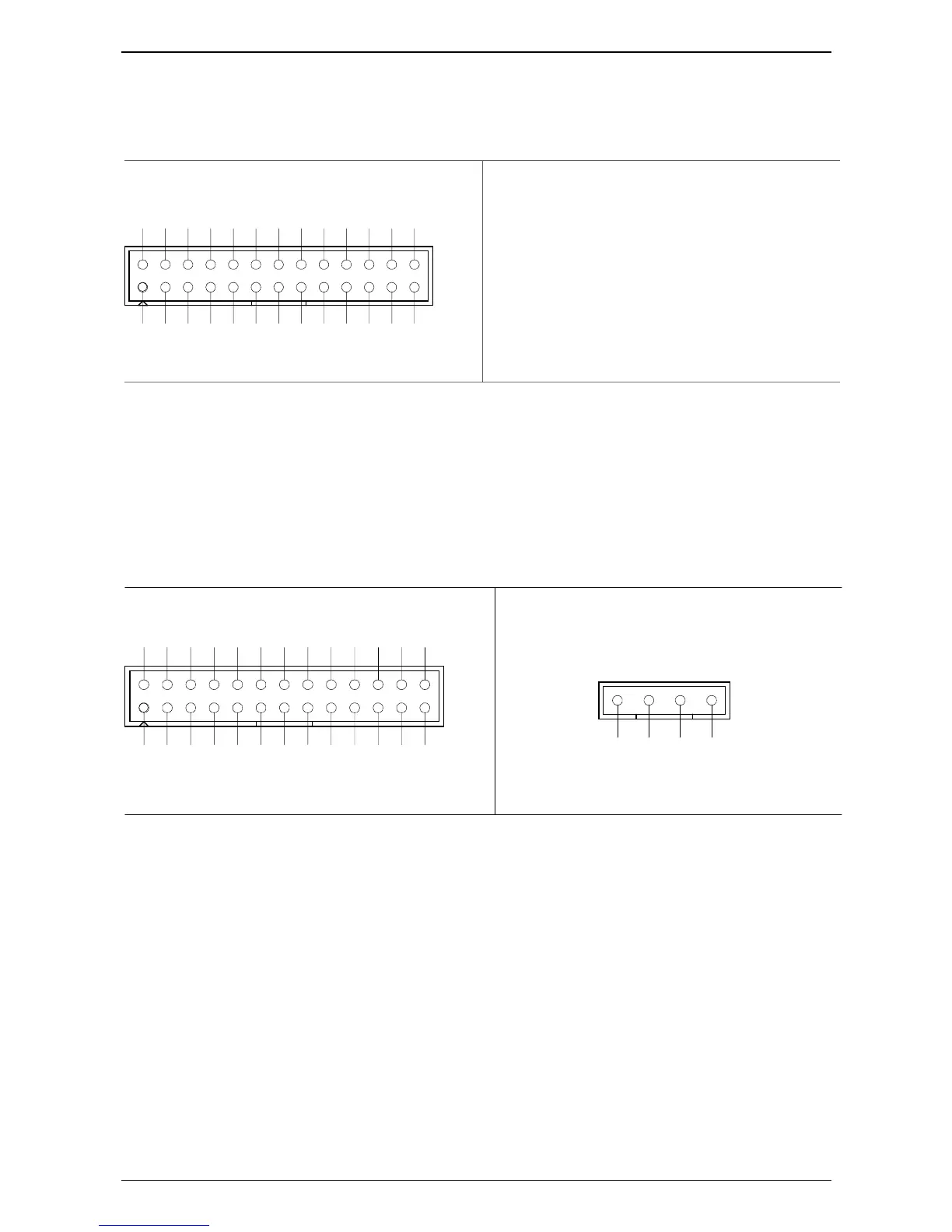

B.2 Front panel card
CPU CONNECTOR
ENC B
+5V
GND
PHS C
BGACK
+5V
ENC A
GND
PHS B
PHS A
D6
FC0
HC
FC2
D0
GND
D2
D4
D5
FC1
LC
A19
D1
GND
D7
D3
B.3 Output card
CPU CONNECTOR TEMP SENSE CONNECTOR
+5V
TEMP
NC
GND
+15V
HSIN A
HSIN B
HSIN C
GND
+15V
GND
+15V
GND
+5V
CHAN 1
CHAN 2
CHAN 3
CHAN 4
CHAN 5
CHAN 6
CHAN 7
CHAN 8
CHAN 9
CHAN 10
CHAN 11
CHAN 12
+15V
FAN
TEMP
GND
