Janome HD-3000BE - Care and Maintenance; Cleaning the Hook Race

39

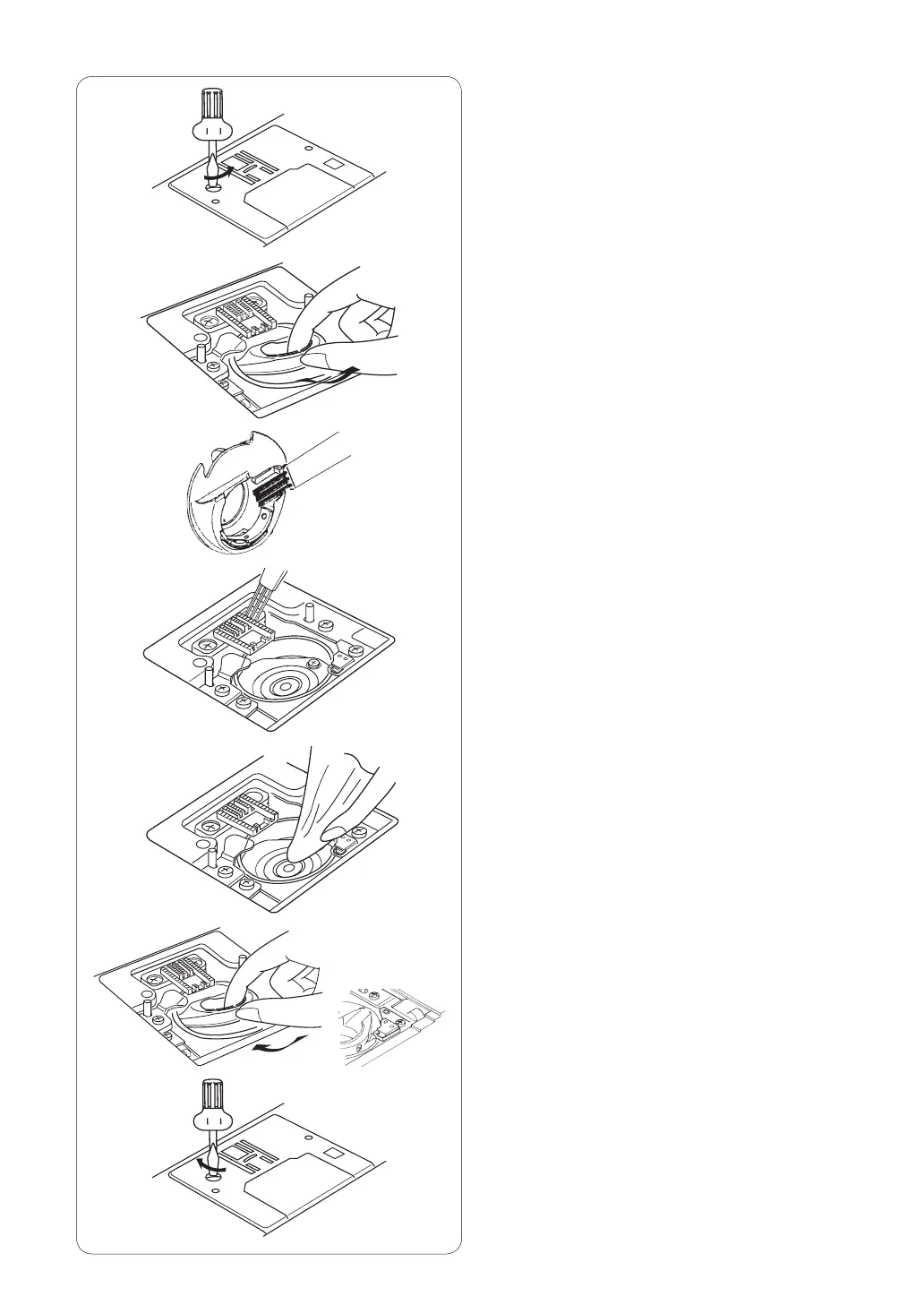

Cleaning the Hook Race
Unplug the machine and remove the presser foot and
needle.Remove the screw on the left hand side of the
needle plate with the screwdriver. Remove the needle
plate.
Take out the bobbin and bobbin holder.
Lift up the bobbin holder and remove it.
Clean the bobbin holder with a lint brush.
Clean the feed dogs, hook race and bobbin holder
with the lint brush and a soft dry cloth.
Inserting the Bobbin Holder
Line up the triangle marks and position the bobbin
holder so the notch ts next to the stopper in the hook
race.
Insert the bobbin.
Attach the needle plate, presser foot and needle.
SECTION VI
CARE AND MAINTENANCE
