Jardine DV601B4 - Install Mattress Support

ASSEMBLY INSTURCTIONS
DV601B4 4 IN 1 CRIB

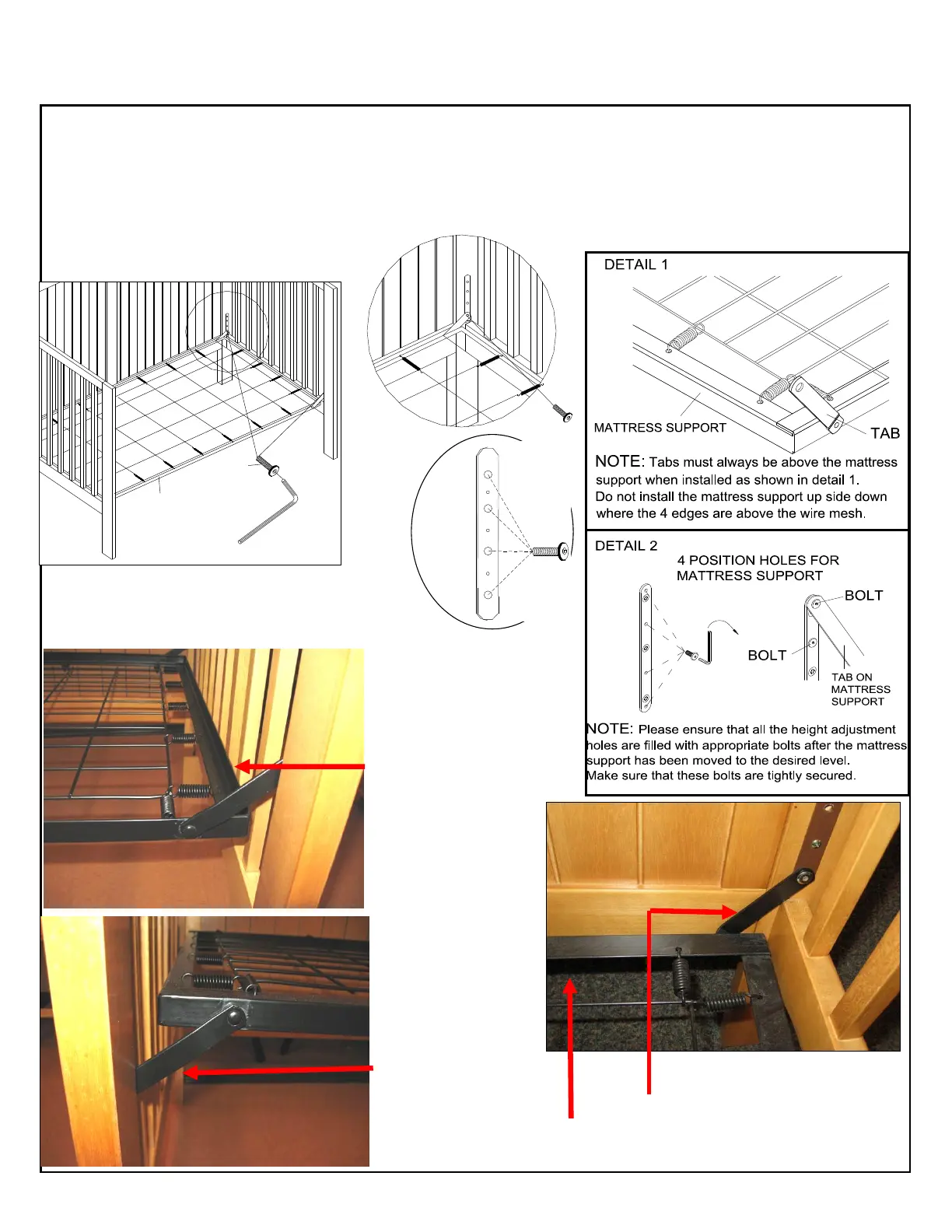

STEP 3:
Attach the mattress support to the 4 corner posts with the mattress support bolts (4). Use Allen Key to
tighten bolts. Refer to details 1 and 2 for direction on how to properly attach the mattress support.
INCORRECT-
Tabs on corners
of mattress
support should
point up
INCORRECT-
Raised edge
should face
down -this
photo shows
mattress
support is
upside down
CORRECT
*Tabs to point UP.
* Flat surface of mattress support to face up
- mattress must sit on flat surface.
