Controls
4

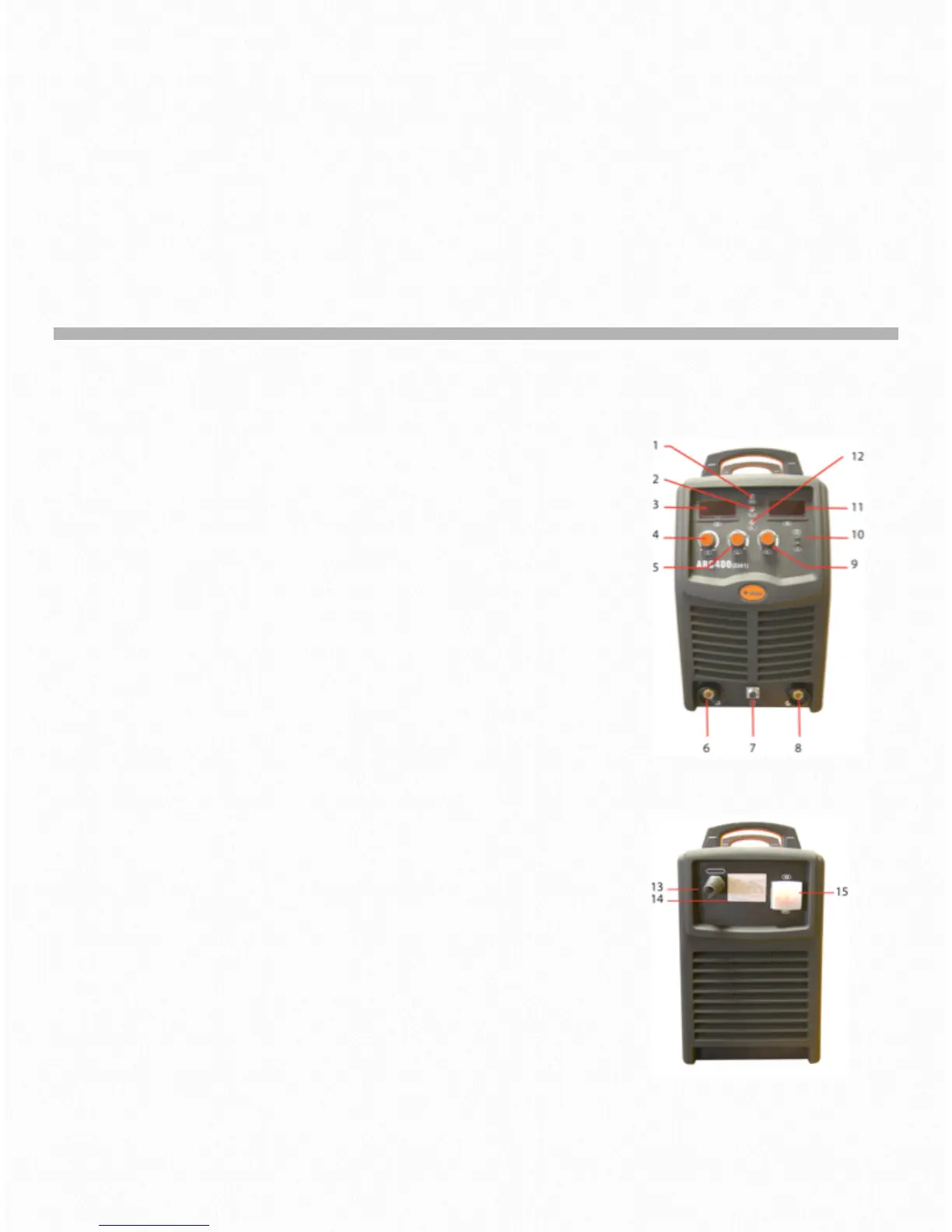

Front view
1.! Over current LED
2.! Low voltage LED: LED on indicates that the ! input voltage is low.
3.! Digital ammeter.
4.! Current control knob
5.! Arc force control
6.! "+" Output terminal: To connect the electrode ! holder.
7.! Remote control socket.
8.! "-" Output terminal: To connect the work clamp.
9! Hot start ignition control
10! Local / remote switch
11! Digital voltmeter
12! Overheating LED on indicates that the temperature inside the machine is too high
and the machine is under overheating ! protection status.
Rear view
13! Mains input cable gland
14! Data plate
15! Mains switch
