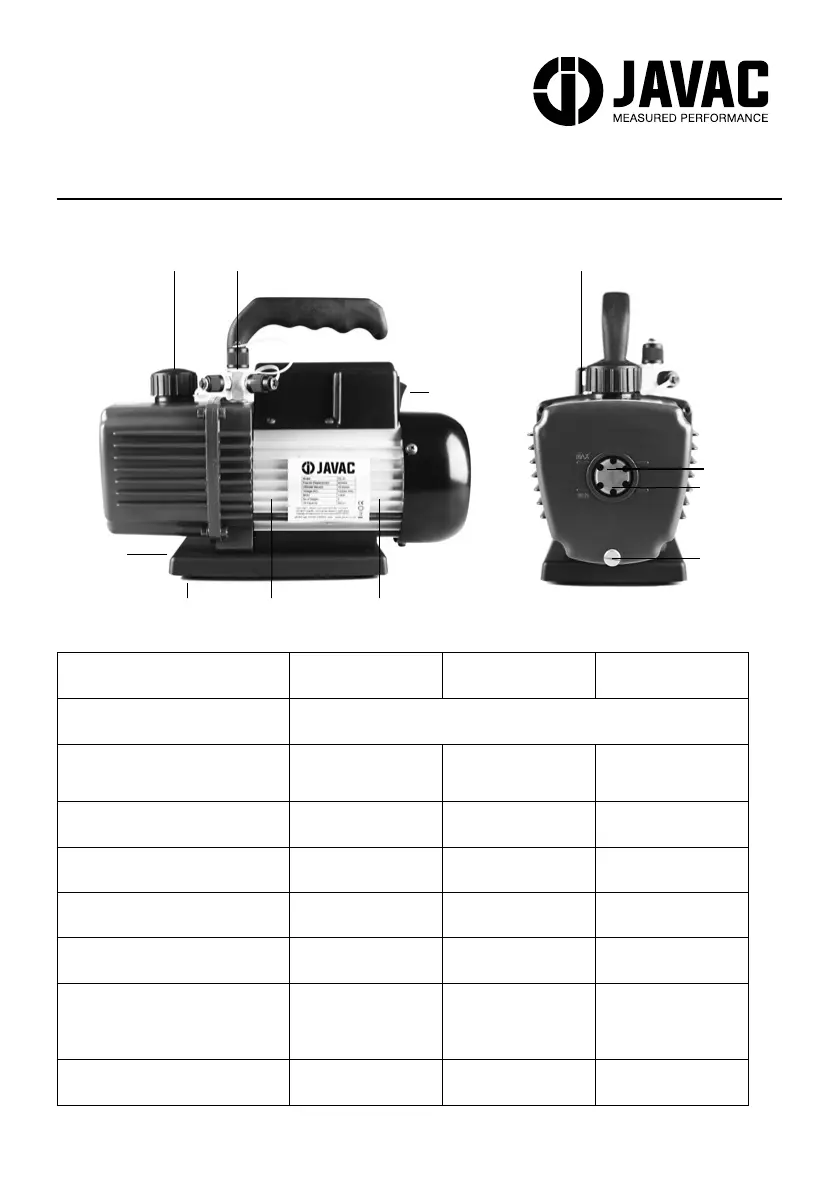

2.0 PUMP COMPONENTS
MODEL CC-31 CC-141 CC-231
VOLTAGE
110 V / 240 V 50 Hz
FREE AIR DISPLACEMENT
(CFM / L/M)
1.4 / 40 5.3 / 140 9, 225
ULTIMATE VACUUM
15 Microns 15 Microns 12 Microns
MOTOR
1/4 HP 1/3 HP 2/3 HP
MOTOR SPEED
1440 r/m 2880 r/m 2880 r/m
OIL CAPACITY
380 ml 450 ml 500 ml
DIMENSIONS
330 x 135 x 255
mm (130” x 53”
x 100”)
350 x 135 x 255
mm (138” x 53” x
100”)
380 x 160 x 285
mm (150” x 63” x
112”)
NET WEIGHT
9.8 Kg (21.6 lbs) 12 Kg (21.6 lbs) 15.5 Kg (34 lbs)
Exhaust
tting
Intake
tting
Gas
Ballast
Sight Glass
Oil Tank
Fan CoverMotorBase
Plate
Oil Drain
Power
Switch
Board
