Javac

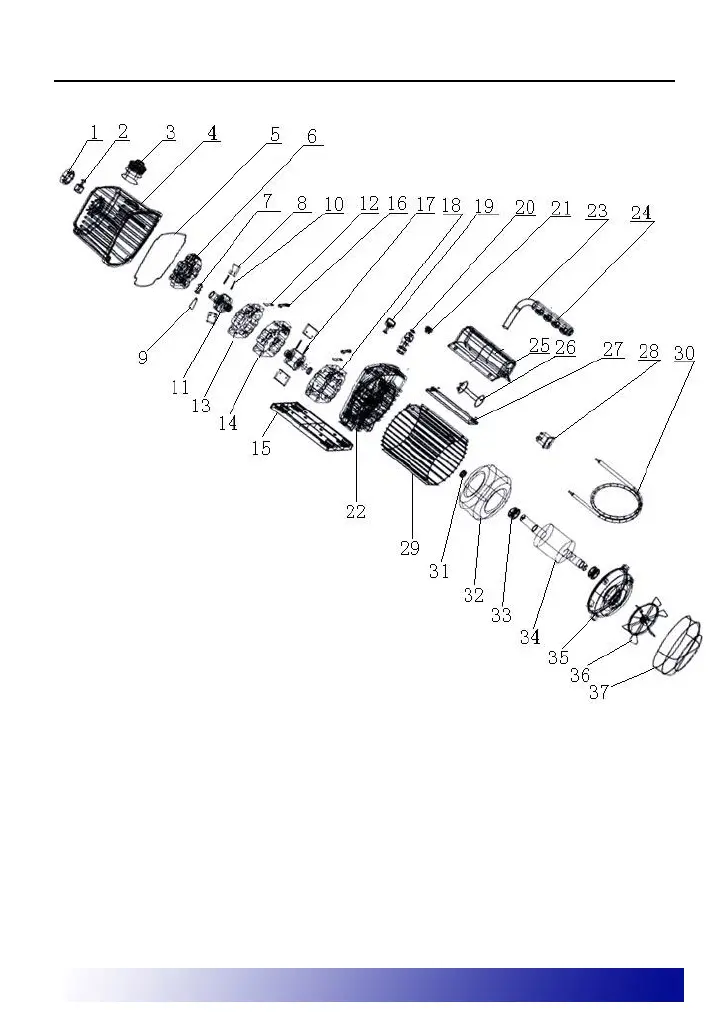

Exploded Drawing
1. Sight glass
2. Oil drain cap
3. Exhaust fitting
4. De-cast Aluminum oil tank
5. Housing gasket
6. Back-pump cover
7. Oil pipe 19. Dill fill port
8. Rotary-vane 20. Inter port
9. Spiral piece 21. Cap-like cover
10. Rotary-vane spring 22. Trestle
11. Back-pump rotor 23. Handle
12. Valve piece 24. Sleeve 31. Shaft seat
13. Back-pump stator 25. Cover 32. Motor Stator
14. Middle fence 26. Capacitor 33. Bearing
15. Molded base 27. Board 34. Motor rotor
16. Restricting piece 28. Switch 35. Motor cover
17. Front pump rotor 29. Motor hull 36. Fan
18. Front pump stator 30. Outlet 37. Fan cover
