VANITY FLAP INSTALLATION
1. Lift upper flap of J3 Back Cover (Fig. 17)
2. Match hook to loop and attach Vanity Flap to the back
of the J3 Back Cover (Fig. 17). Reposition upper flap of
cover to sandwich the Vanity Flap between the flaps the
upper and lower flaps (Fig. 18).
3. Remove Seat Cushion from wheelchair and sandwich
“tail” of Vanity Flap between wheelchair support surface
and Seat Cushion (Fig 20).
4. Adjust Vanity Flap as necessary by moving the tail in
or out from under the Seat Cushion. If necessary the
upper part of the vanity flap can be moved up or down
on the Seat Back also.
5. Insert Hook & Loop Wrap ties through the appropriate
grommets on the Vanity Flap, then wrap around the
wheelchair frame and insert the leading end through
the slot end of the Wrap (Fig. 21). Snug up and close
outside gaps in Vanity Flap (Fig. 22).
Optional Storage Bag
NOTE: There is an optional storage bag available to
attach onto the vanity flap, (Fig.16).

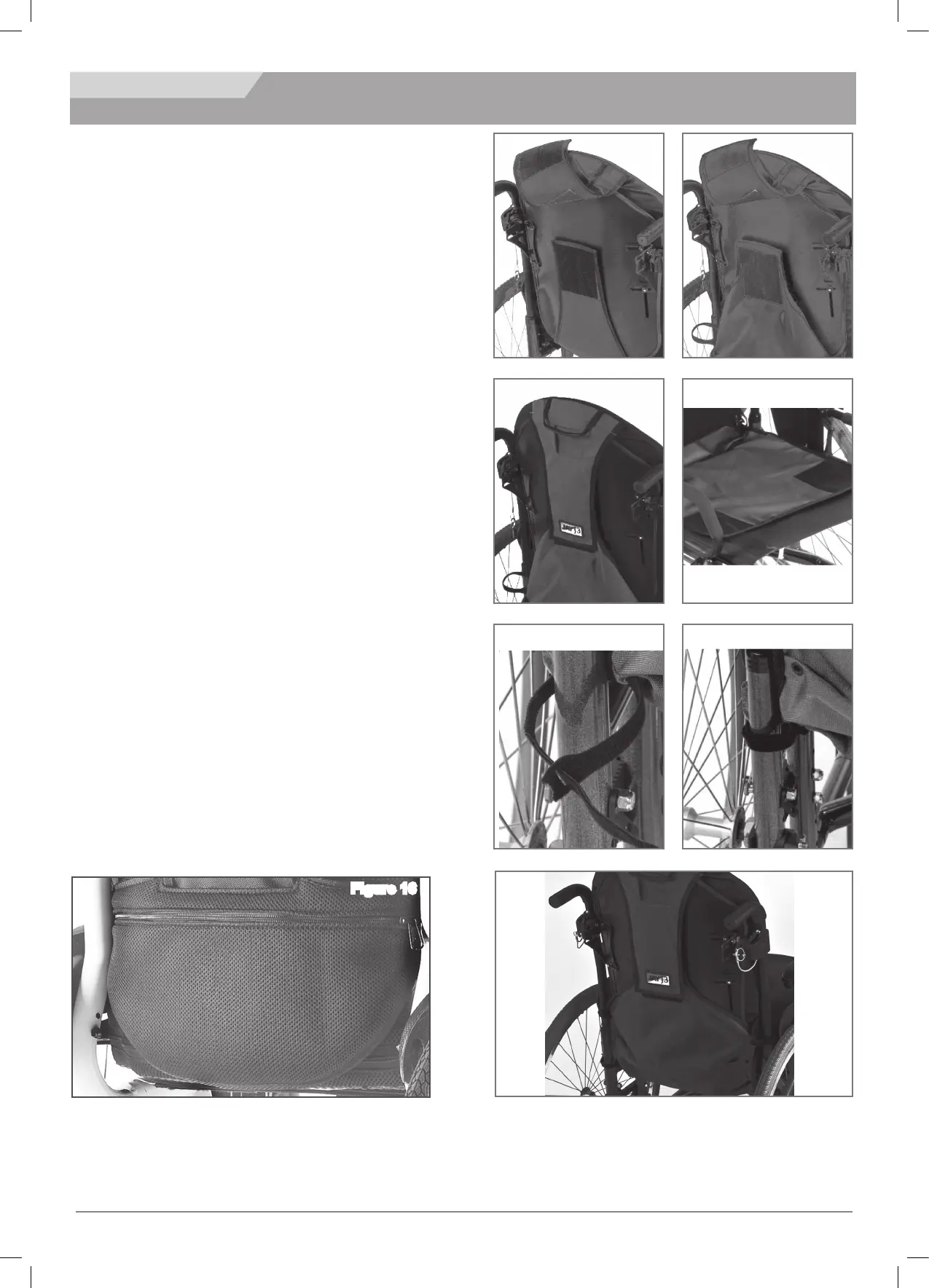

Figure 17 Figure 18
Figure 19 Figure 20
Figure 21 Figure 22
Figure 23
Finished J3 Vanity Flap Installation
VANITY FLAP INSTALLATION
Figure 16
