JAYCO TOWABLE SECTION 5 - SLIDEOUT SYSTEM
E/PNC/WHK 5-3
Lippert slideout System (flush floor)
For optimum performance, the slide-out system requires full battery current and
voltage. Although the system is designed to be almost maintenance free, actuate
the room once or twice a month to keep the seals and internal moving parts
lubricated. Check for any visible signs of external damage after and before
movement of the travel trailer.
NOTE: For long-term storage it is recommend the room be closed (retracted).
MANUAL OPERATION
The Lippert Electric slide comes with a manual over ride system.
Locate the crank extension with pin outside of the chassis main rail as, Fig. 5.3,
shows underneath the unit on the end of the motor (If your crank extension is
under the inside of the frame, please refer to Fig. 5.5 and 5.6).
This is where the crank handle (standard fifth wheel landing gear crank handle) or
3/4” or 5/8” socket (size will vary depending on model) and ratchet fits on to allow
the manual extension/retraction of the room, Fig. 5.5 and 5.6. Simply take the
crank handle (through-frame models) or wrench, ratchet or drill with a nut driver
(in-frame models) and rotate it clockwise to retract and counterclockwise to extend
slide-out.
It is important to note that you DO NOT need to attempt to disengage the motor as
the actuator is “manual ready” Just hook up and crank. Use EXTREME CAUTION
when extending and/or retracting room using the manual override feature. It is
possible to operate the slideout beyond the maximum extension and/or retraction
and damage the slide components, slide room structure or trim components.
MANUAL OPERATION - THROUGH FRAME

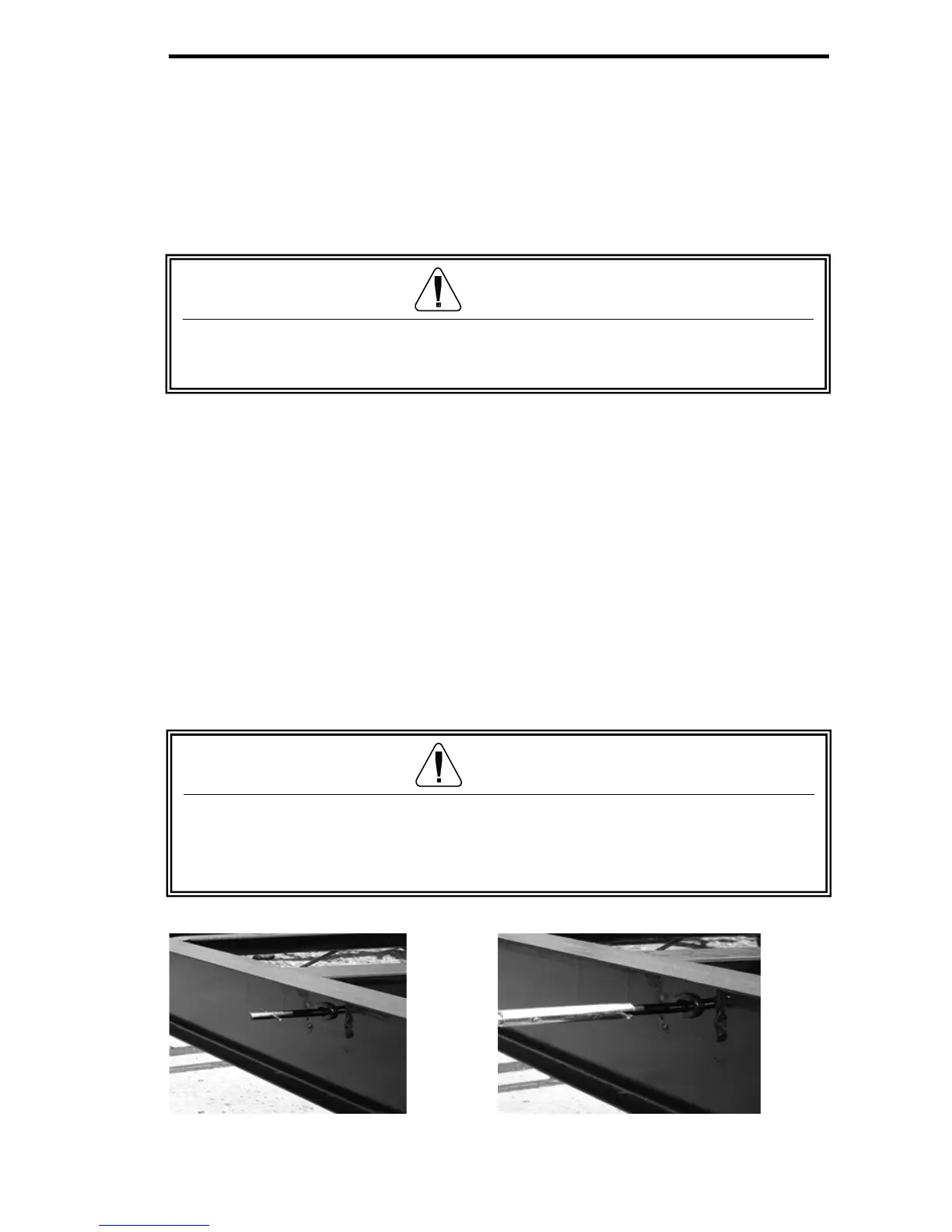

Fig 5.3 Through Frame Crank Fig 5.4 Crank Handle
Extension w/ pin
CAUTION
Always disconnect battery from system prior to manually operating system.
Failure to disconnect battery can cause electricity to back feed through the
motor and cause serious dama
