SECTION 5 - SLIDEOUT SYSTEM JAYCO TOWABLE
5-4 E/PNC/WHK
MANUAL OPERATION - IN FRAM

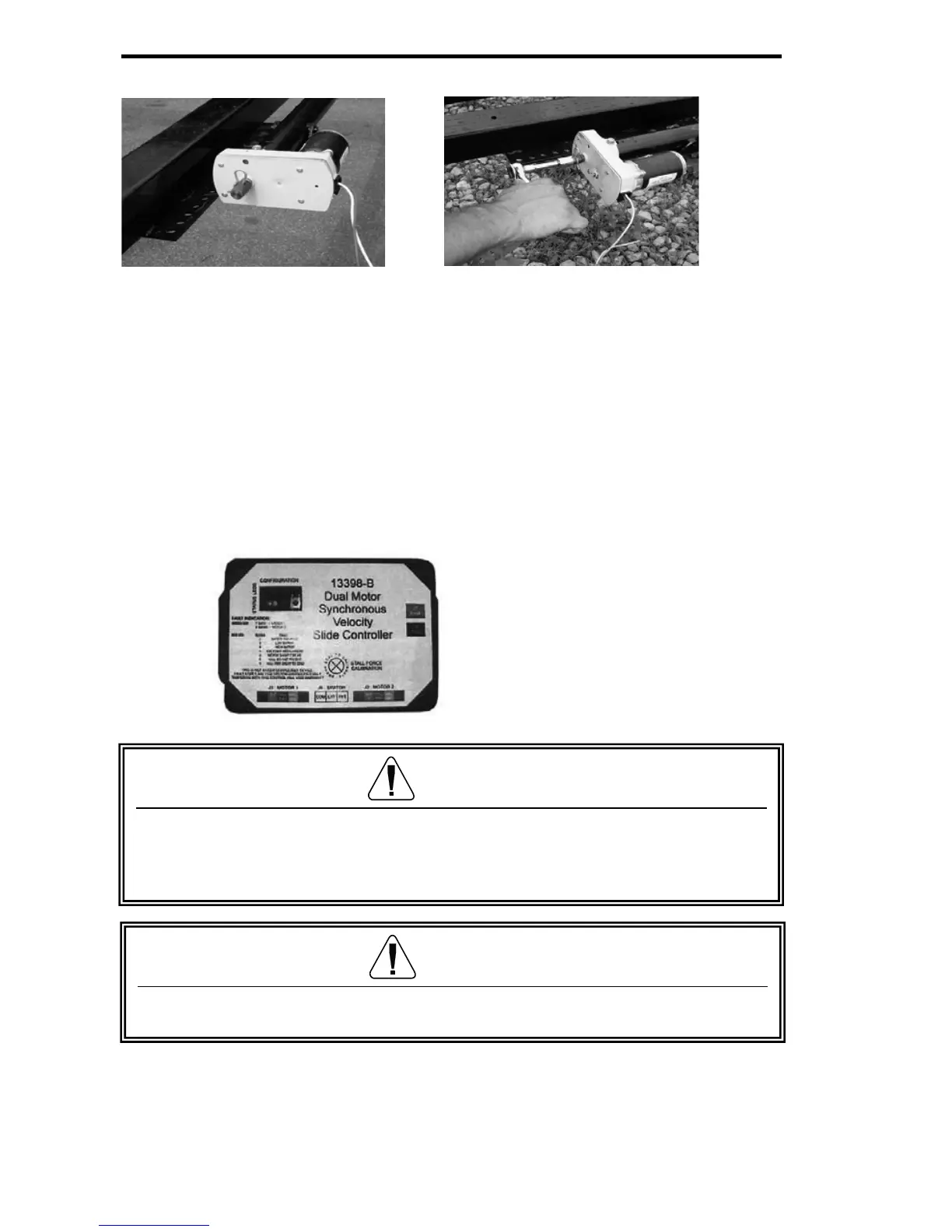

Fig 5.5 Hex Head Crank Extension Fig 5.6 Ratchet
Schwintek Inwall slideout system
The Schwintek system comes with an “electronic” manual override. In event the
slide out does not extend or retract follow these steps to override the system:
1. Locate the slideout system circuit board.
2. Press the “mode button” six times quickly, press a 7
th
time and hold for
approximately 5 seconds.
3. The red and green LED lights will begin to flash indicating you are in override
mode.
4. Using the wall switch, press and hold the “in” button until the unit comes
completely in.
Fig 5.7 Slideout System
Circuit Board
CAUTION
During this override procedure the motors are not synchronized. Visually
watch the room, and if one side is moving significantly slower than the other
(or not at all), immediately stop and call your dealer or Jayco Customer
Service.
CAUTION
If the system stalls our before reaching end of stroke OR if the room does not
close and seal tightly, call your dealer or Jayco Customer Service.
