7-6

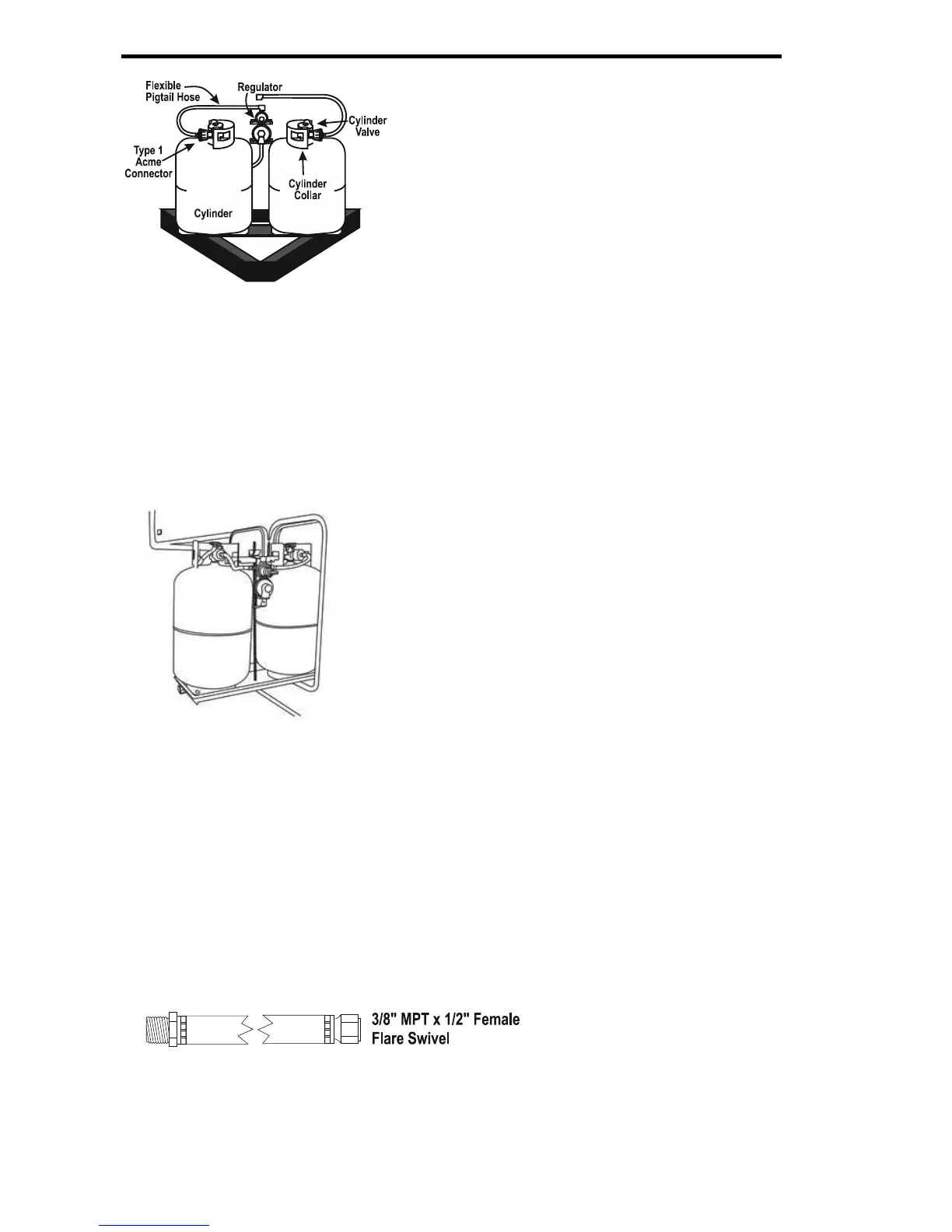

Fig. 7.6 Double cylinder
1. Place the second cylinder on the A-frame bracket so the cylinder valve is
pointed to the roadside of the folding camping trailer.
2. Secure the second cylinder to the A-frame using the bolts, nuts and washers
provided.
3. If a vinyl cylinder cover is used, slip it over the new single cylinder, or a
double cylinder cover may be used in lieu of single covers.
4. Attach the second 24" hose to the tee check valve on the regulator and the
right handed swivel nut to the cylinder valve.
Located in a recessed compartment or housing (if so equipped)
Fig 7.7 Two propane cylinders
1. Connect the 3/8” low-pressure hose to the outlet of the two-stage regulator.
2. Place the cylinder on the bracket in the recess compartment or housing and
secure them so the outlets of the cylinder valves are facing the “sidewalls” of
the compartment or housing (opposite of each other).
3. Mount the regulator on the center back wall of the compartment or housing so
the vent is pointed downward.
4. Attach the 1/4” inverted flare x 18” Type-1 pigtail hose to the regulator inlet
and the right hand swivel nut to the cylinder valve.
Main Supply Hose – Low Pressure
Attach the main supply hose from the regulator to the brass manifold fitting in the
frame of the trailer. The swivel brass nut on the main hose will be your final
attachment
.
Fig. 7.8 Main supply
hose
Several things to remember each time the propane container is removed:
1. Check that ALL fittings are tight.
2. Check that ALL connections are tested with a propane leak detector (or soapy
water) solution.
