4-18 JFB/JFD

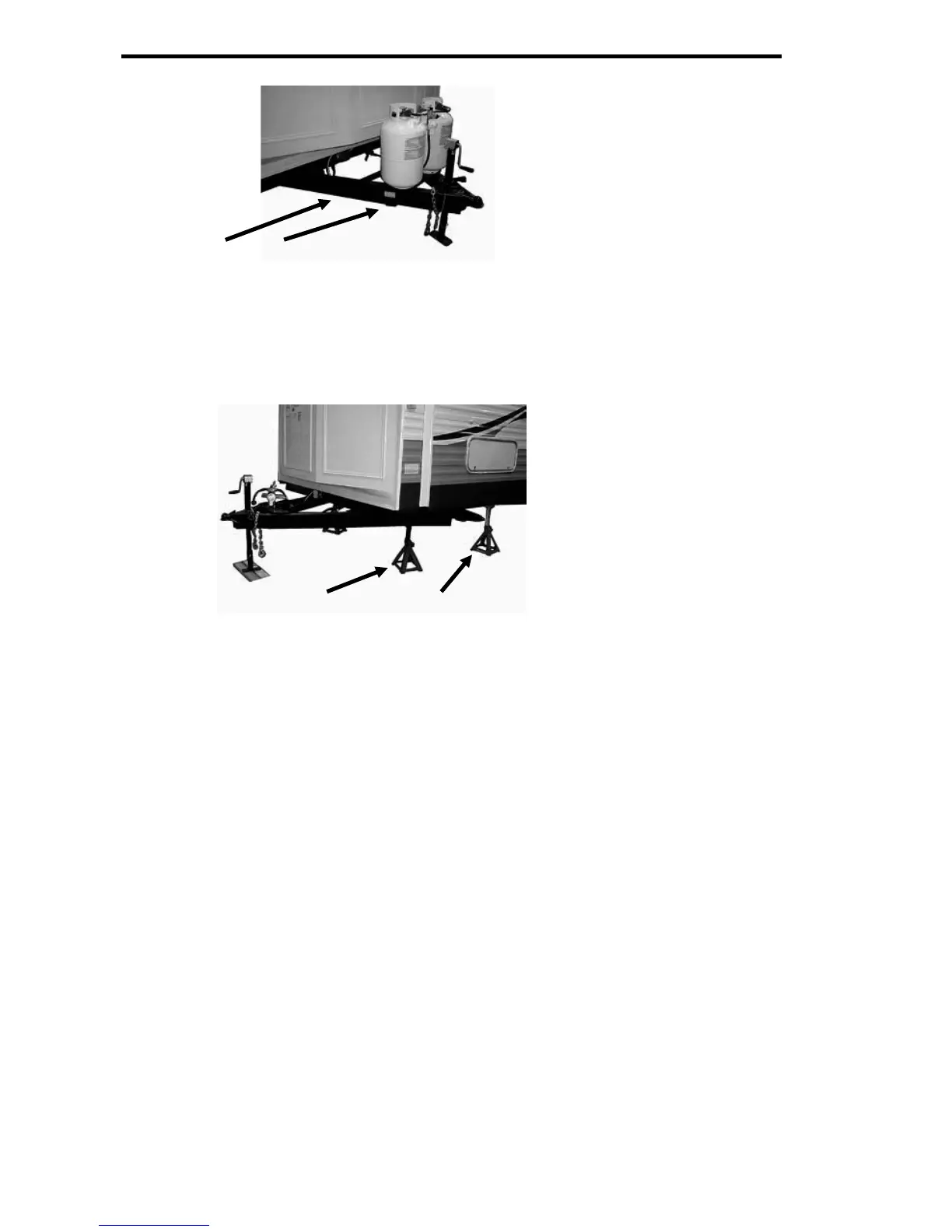

Fig. 4.8 Detachable Hitch
4. Coil wires up and place behind front crossmember.
5. Raise tongue up with tongue jack.
6. Place two jack stands (3 ton minimum rating each, one on each side of the
trailer) approximately 4’ behind the front crossmemeber under the main I-
beam.
Fig. 4.9 Jack stands
7. Lower frame down onto jack stands.
8. Place another 2 jack stands (3 ton minimum rating each, one each side of
tongue) under tongue between 2 tongue connection plates.
9. Remove tongue from trailer by removing ¾” bolts and nuts (4 per connection
plate, 16 total).
To reinstall the hitch, reverse these steps. (tighten the bolts to 60-70 ft/lbs torque).
It is your responsibility to take your travel trailer to the dealer for warranty or
service repair (please refer to the Limited Warranty in Section 1).
