120-Volt AC/12-Volt DC Layout

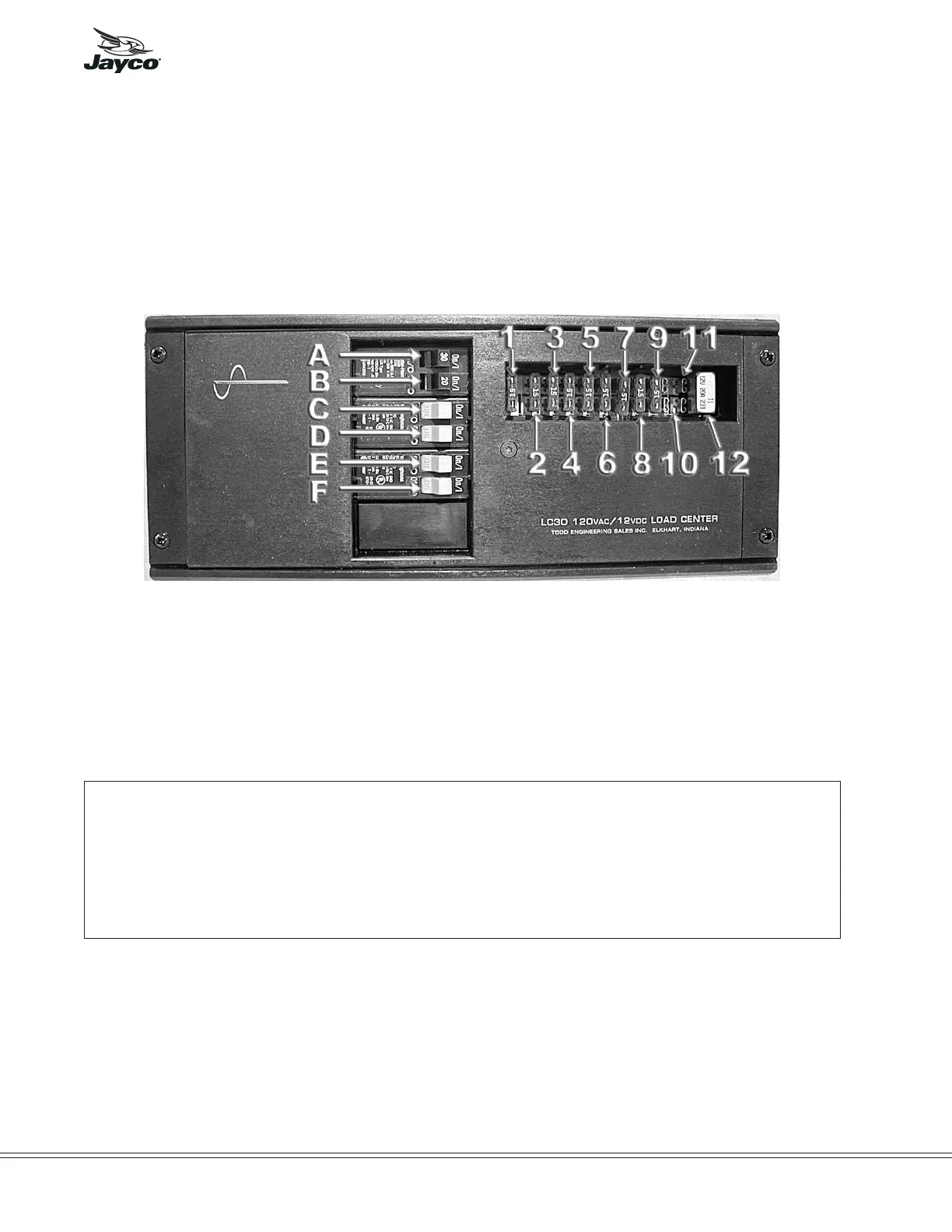

The diagram below defines the layout for the complete electrical system
#
CAUTION: Your recreation vehicle has many 12-volt DC loads. When combined, their
total is more power consumption than the power converter can produce. Periodic overloads
can be handled with an auxiliary battery for limited periods of time. Prolonged overload on a
converter will shorten the life of its components. It is recommended to plan and conserve the
usage of your 12-volt DC system in a priority method.
40 Escapade Type C Owner’s Manual
A - Main
B - Air Conditioner
C - Microwave
D - Kitchen, Bath, Outside, GFCI
E - Converter/Utility
F - Electric Water Heater
1 - Bath
2 - Pump
3 - Furnace/Refrigerator
4 - Bed Lights
5 - TV/Radio
6 - Ceiling Lights
7 - Optional
8 - Optional
9 - Optional
10 - Optional
11 - Optional
12 - Optional
120-volt AC layout
12-volt DC Layout
Fig. 4-31
