If the energy source is interrupted:
•
The refrigerator stops operation.
•
A fault code flashes in the center display.
•
Refer to the “Fault Codes” section of manufacturer’s owner’s manual.
Ignition of propane gas in either auto or gas mode:
NOTE: On initial start up of the refrigerator, ignition of the propane gas may not occur
within 30 seconds.
If ignition of the propane gas does not occur within 30 seconds:
•
The gas safety valve of the refrigerator closes.
•
The refrigerator stops operation.
•
Refer to the “Fault Codes” section of the manufacturer’s owner’s manual.
•
The fault code remains until you push the selector switch to the OFF position and then back to
either the AUTO or GAS mode.
•
If ignition does not occur after two or three times:
•
Check the gas supply line.
Consult your local dealer or an authorized Norcold service center.
Model N821 (Option)
CONTROL PANEL
The refrigerator control panel is between the freezer compartment and the fresh food compartment.
To maintain the operating control functions of the refrigerator, a 12-volt DC power supply is
necessary. The refrigerator and any other DC components in the vehicle, receive DC power from
the 12-volt system of the vehicle; either an auxiliary battery, a converter, or the vehicle engine
battery.
The ON/OFF button (Fig. 5-6A) starts and shuts down the refrigerator:
•
If the refrigerator is shut down, press the ON/OFF button to start the refrigerator in auto mode.
•
If the refrigerator is operating, press and hold the ON/OFF button for two seconds to shut
down the refrigerator.
Appliances 61
N
O
RCOLD
AC
AUTO
LP GAS
DC
1-COLD
COLDEST-9
ON
OFF
MODE
TEMP
SET
A
B
C
D

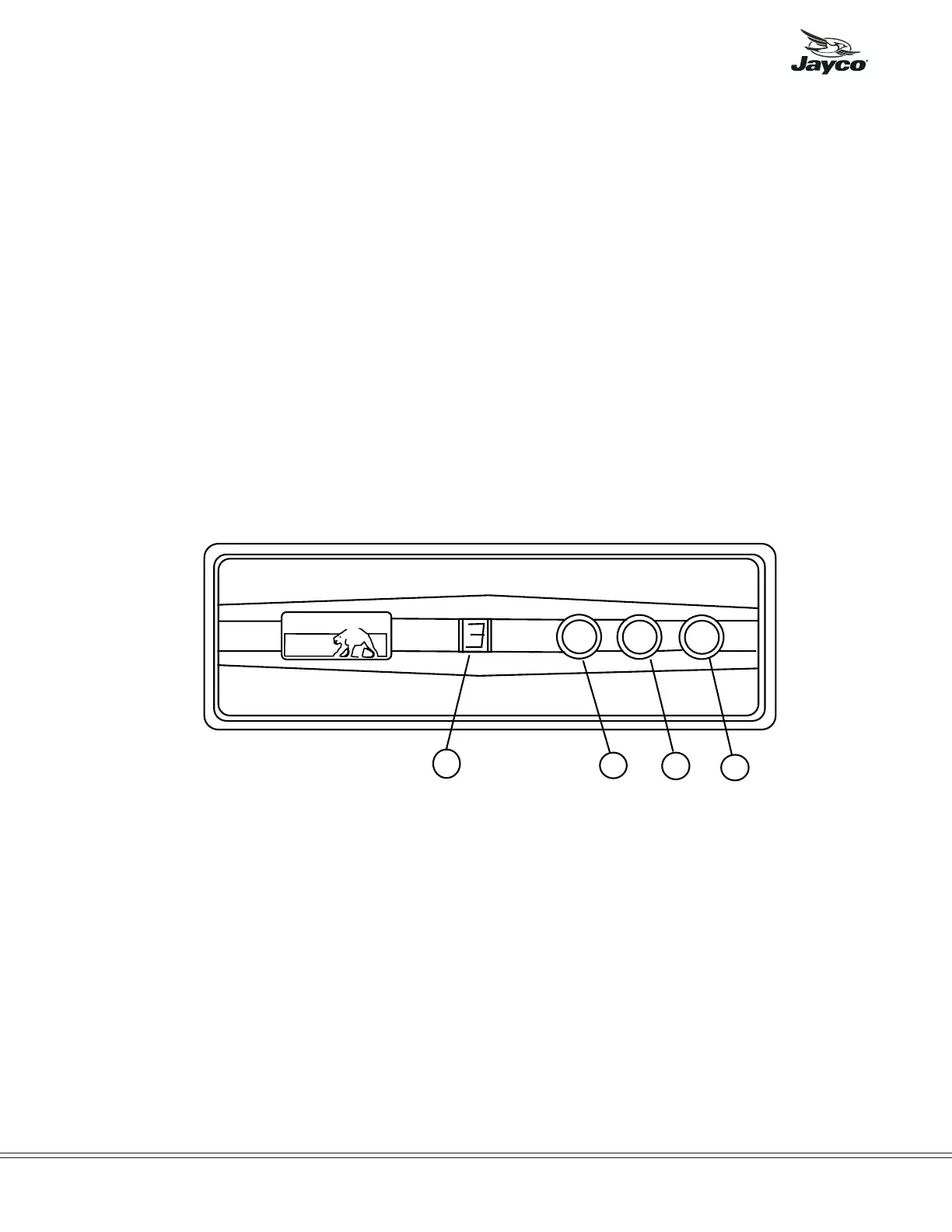

Fig. 5-6
