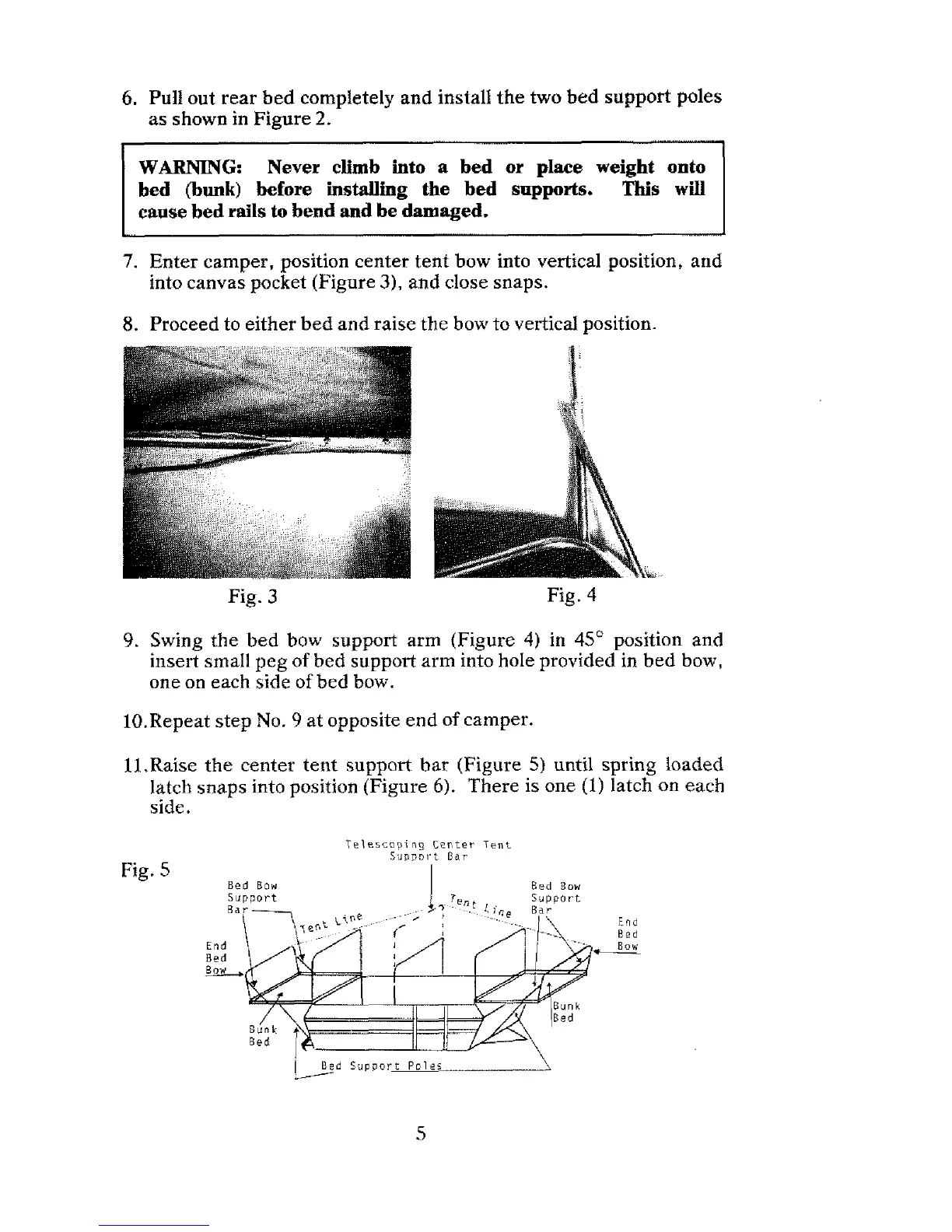

6. Pulf out rear bed completely and install the two bed suppo~ poles
as
shown in Figure 2.
WARNING: Never climb into a bed or pIace weight onto
bed (bunk) before insang the bed supports. This will
cause bed rails to bend and be damaged.
r
7. Enter camper, position center tent bow into vertical position, and
into canvas pocket (Figure
3), and close snaps.
8. Proceed to either bed and raise the bow to vertical position.
Fig. 3
Fig. 4
9. Swing the bed bow support arm (Figure 4) in 45' position and
insert
smaIl peg of bed support arm into hoIe provided in bed bow,
one on each
side of bed bow.
10.Repeat step No. 9 at opposite end of camper.
11.Raise the center tent
support bar (Figure 5) until spring loaded
latch snaps
into position (Figure 6). There is one (1) latch on each
side.
Fig. 5
Telescoping Center Tent
Suopor; Bar
Bed Bow I Bed Bow
End
Bed
Bow
-
I
1 Bed Support Poles
