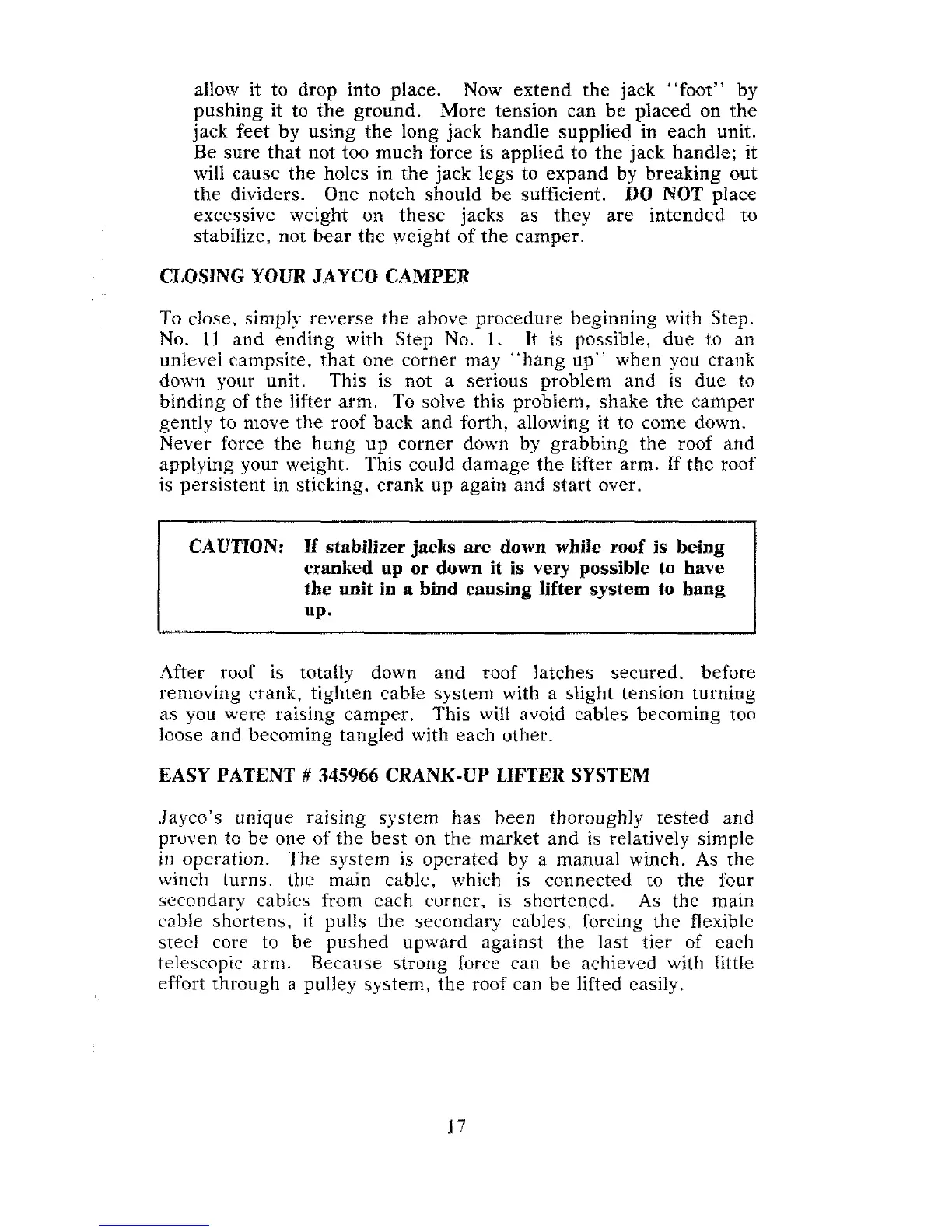

allow it to drop into place. Now extend the jack "foot" by
pushing
it
to the ground. More tension can be placed on the
jack feet by
using
the
long jack handle
supplied
in each unit.
Be
sure that not too much force is applied to the jack handle; it
will cause the holes in the jack
legs
to expand
by
breaking out
the dividers.
One
notch should be sufficient.
DO
NOT
place
excessive weight on these jacks as they are intended to
stabilize, not bear the weight of the camper.
CLOSING
YOUR
JAYCO
CAMPER
To close, simply reverse the above procedure beginning with Step.
No,
11
and ending with Step No.
1.
It
is
possible, due to an
unlevei
campsite, that one corner may "hang
up"
when you crank
down your unit. This is not a serious problem and is due to
binding of the lifter arm. To solve this
probkm, shake the camper
gently to
move the roof back and forth. allowing it to come down.
Never force the
hung
up corner down
by
grabbing the roof and
applying your weight. This could damage the lifter arm.
If
the roof
is persistent in sticking, crank up again and start over.
CAUTION:
If
stabilizer
jacks
are
down
while
roof
is
being
cranked
up
or
down
if
is
very
possible
to
have
the
unit
In
a
bind
causing
Iifter
system to
hang
UP.
After roof is totally down and roof latches secured, before
removing crank, tighten cable system with
a
slight tension turning
as you were raising camper. This
will
avoid cables becoming too
loose and becoming tangled with each other.
EASY
PATENT
#
345966
CRANK-UP
LIFTER
SYSTEM
Jayco's unique
raising
system
has
been thoroughly tested
and
proven to be one of the best on the market and
is
relatively simple
in
operation.
The
system
is
operated by a manual winch. As the
winch turns, the main cable, which
is
connected to the four
secondary
cables
from
each
corner,
is
shortened.
As
the main
cable shortens, it pulis the secondary cables, forcing the flexible
steel core
to
be
pushed upward against the last tier of each
telescopic arm. Because strong force can be achieved with little
effort through a
pulley
system, the roof can be lifted easily.
