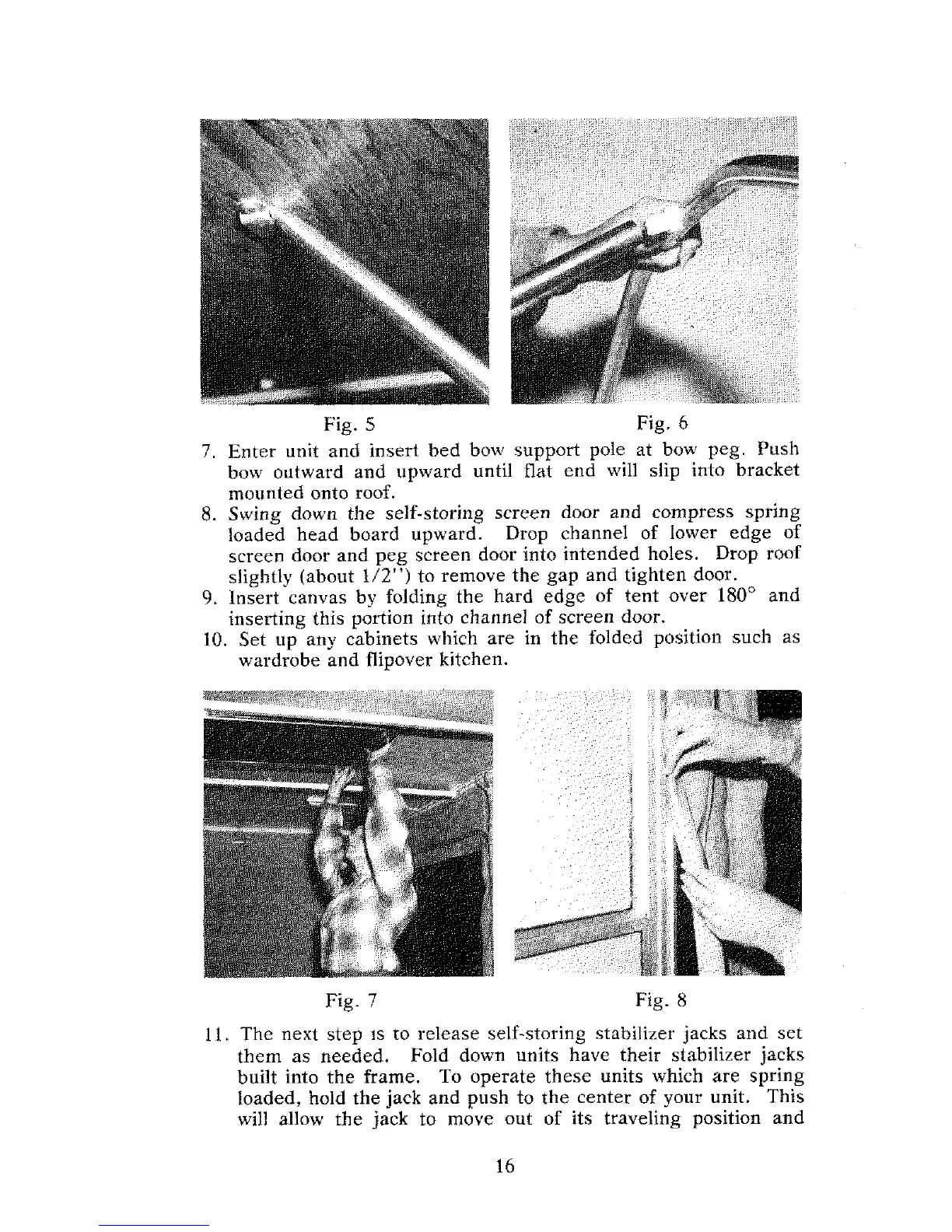

Fig.
5
Fig.
5
7.
Enter unit and
insert
bed
bow
support
pole at bow
peg.
Push
bow outward and upward
until
flat end will slip
into
bracket
mounted onto roof.
8.
Swing
down the self-storing screen door
and
compress spring
loaded head board upward.
Drop channel
of
lower edge of
screen door and peg screen door
into
intended holes.
Drop roof
slightly (about
1/2")
to
remove the gap and tighten door.
9.
Insert
canvas
by folding the hard edge of tent
over
180'
and
inserting this portion into channel
of
screen door.
10.
Set up
any
cabinets which are
in
the folded position such as
wardrobe and flipover kitchen.
Fig.
7
Fig.
8
1
I.
The next step
IS
to release self-storing stabilizer jacks and set
them
as
needed.
Fold down units
have
their stabilizer jacks
built
into
the frame. To operate these units which are
spring
loaded,
hoId
the
jack and push to
the
center of your unit.
This
will
allow
the jack to
move
out
of
its traveling position and
