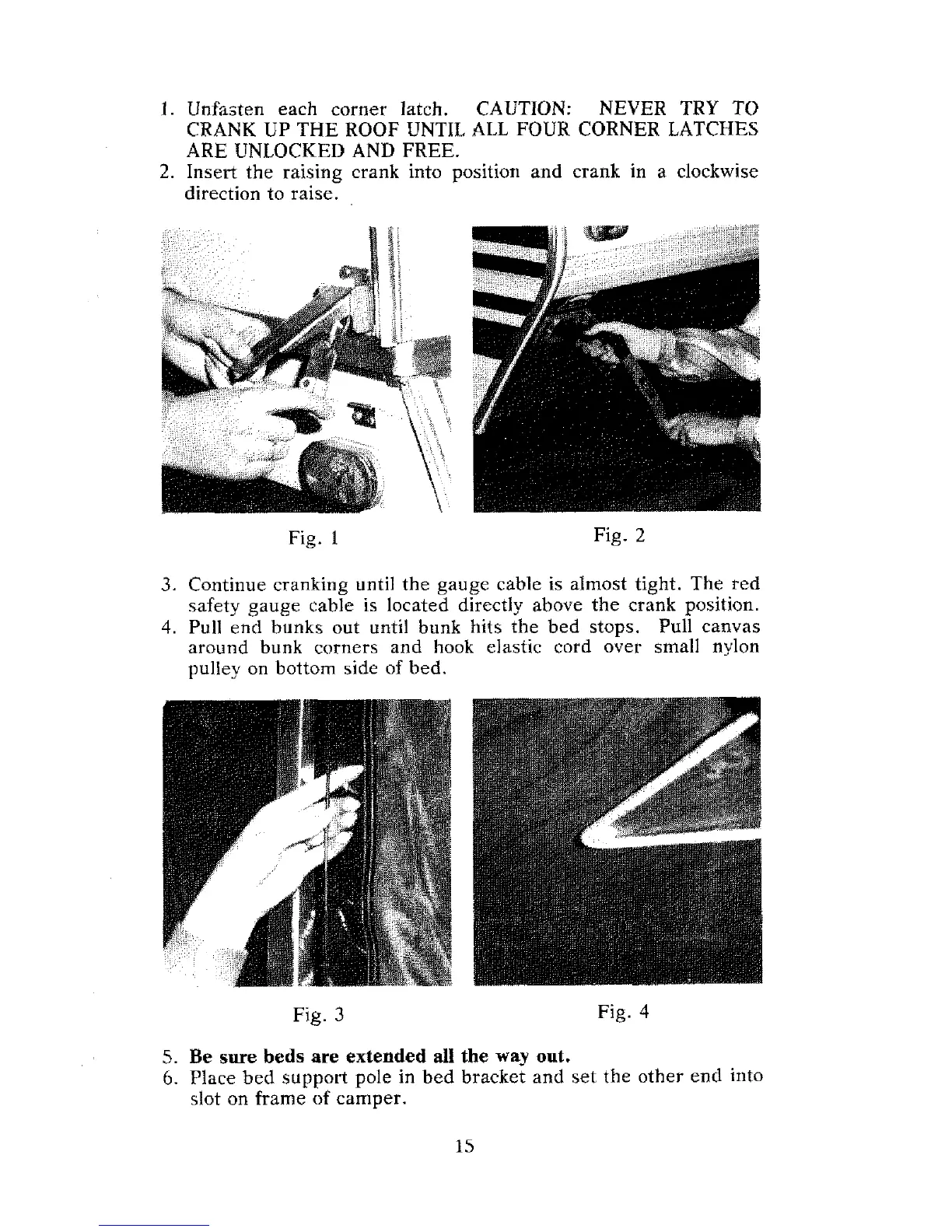

Unfasten each corner latch. CAUTION: NEVER TRY TO
CRANK UP THE ROOF UNTIL ALL FOUR CORNER LATCHES
ARE UNLOCKED AND FREE.
Insert the raising crank
into position and crank in a clockwise
direction to raise.
Fig. 1
Fig. 2
3. Continue cranking until the gauge cable is almost tight. The red
safety gauge cable is located directly above the crank position.
4. Pull end bunks out until bunk hits the bed stops. Pull canvas
around
bunk corners and hook elastic cord over small nylon
pulley on bottom
side of bed.
Fig. 3
Fig. 4
5. Be sure beds are extended all the way out.
6. Place bed support pole in bed bracket and set the other end into
slot on frame of camper.
