SECTION 4 – VEHICLE OPERATION JAYCO TOWABLE TABLE OF CONTENTS
4-14

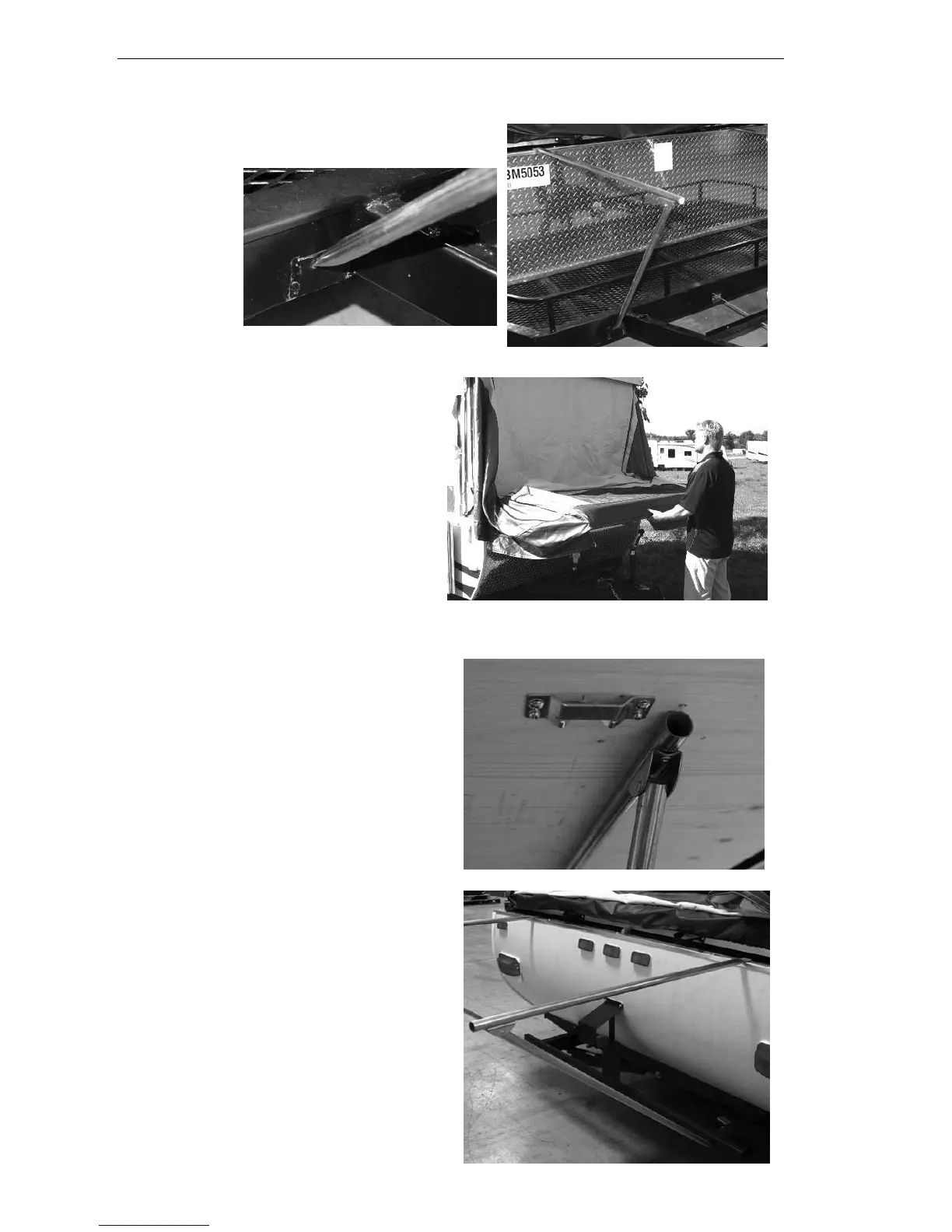

Step 5a – bumper mount
Install the
other end of
the pole set
into the
bumper slot.
Step 6 – bumper mount
Pull out the front bed. Make sure the bed
is fully extended.
Step 7a – bumper mount
Install the both pole sets into the bracket(s)
on the bottom of the bed.
Step 7b – bumper mount
Repeat the process on the rear bed.
