SECTION 4 – VEHICLE OPERATION JAYCO TOWABLE TABLE OF CONTENTS
4-16

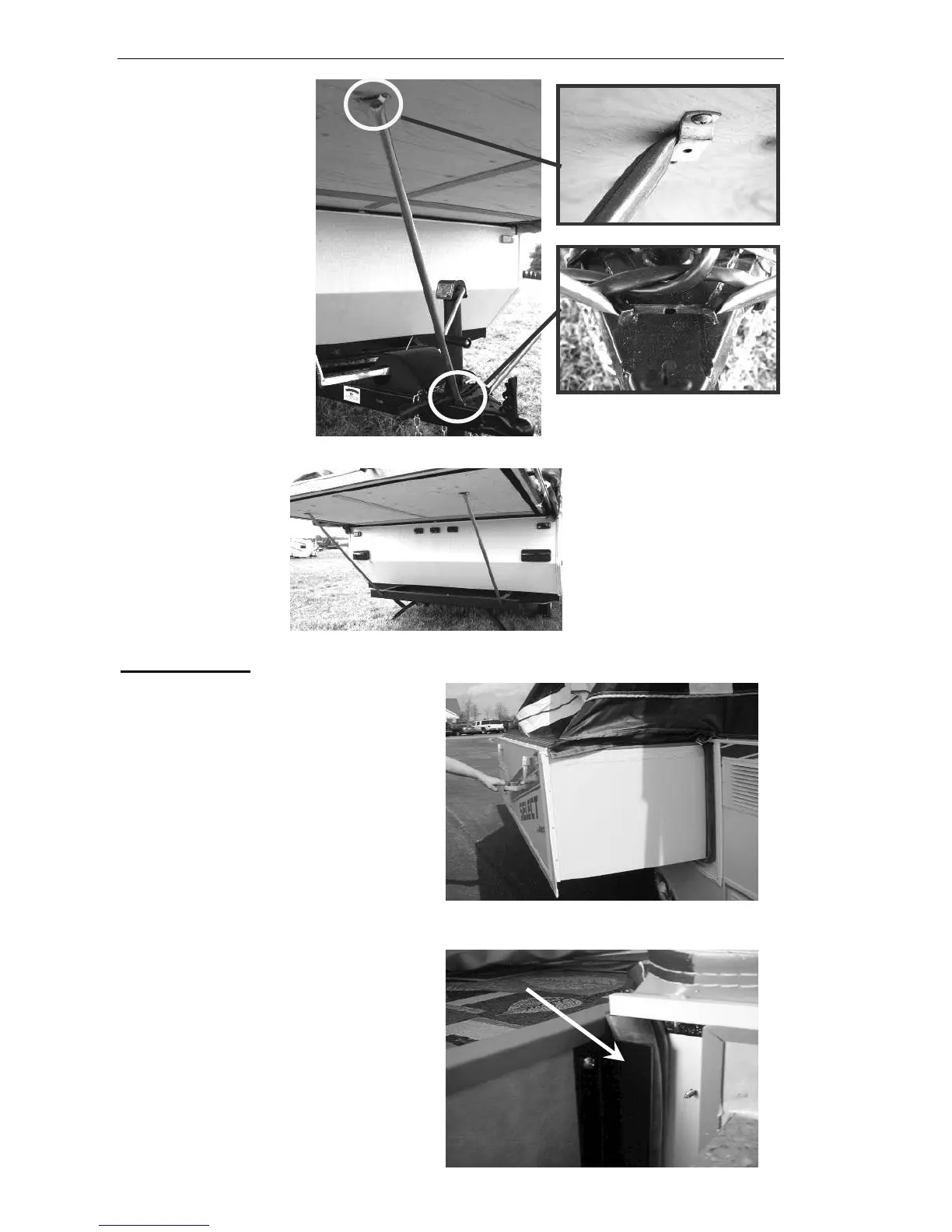

Step 7b - hitch
mount
Bed brace installation.
Insert one end of the
bed brace into the
bracket in the bed.
Insert the other end in
the slots on the tongue
(front bed) and the
bumper (rear bed)
Rear Bed
TENT SET UP
Step 8
Pull out the slideout (if so equipped)
until interior slideout seals make
contact..
Step 8 Continued
The arrow shows the slideout seal
Making contact on the interior of the
RV.
