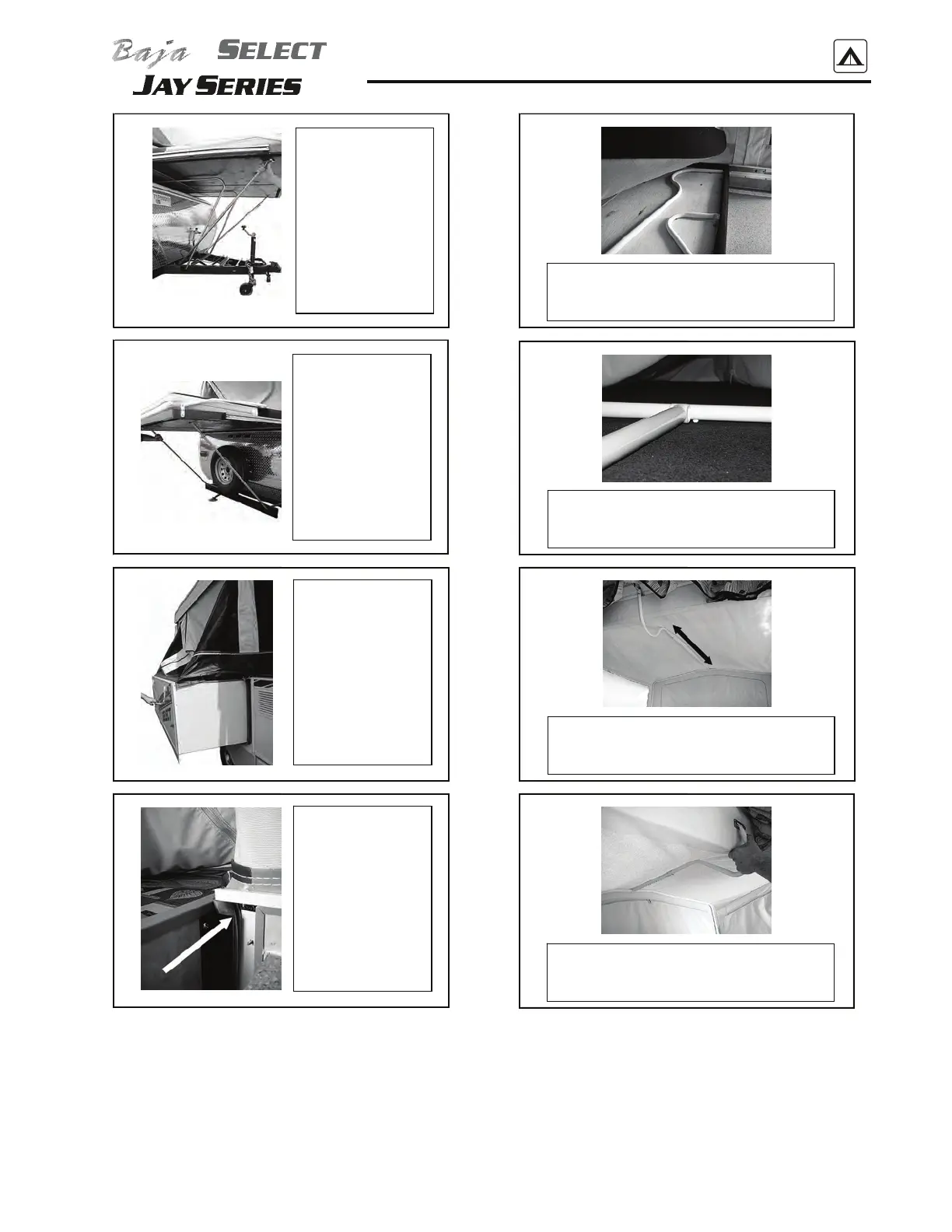

DURA-TEK TENT
67
Put remaining
front bed braces
in place
9
10
Pull out back
bed and install
bed braces
Pull out
slideout…
11a
until unit
seals contact
11b
12
Bed bow brace is stored under front mat
13
A
ttach U-shaped clip to bed bow
(between the screw heads)
14
Install bed bow brace (front shown); for wate
r
run-off, set brace so tent fabric fits tightly
15
Install slideout brace by fitting end in slot,
then slide over to lock in place
