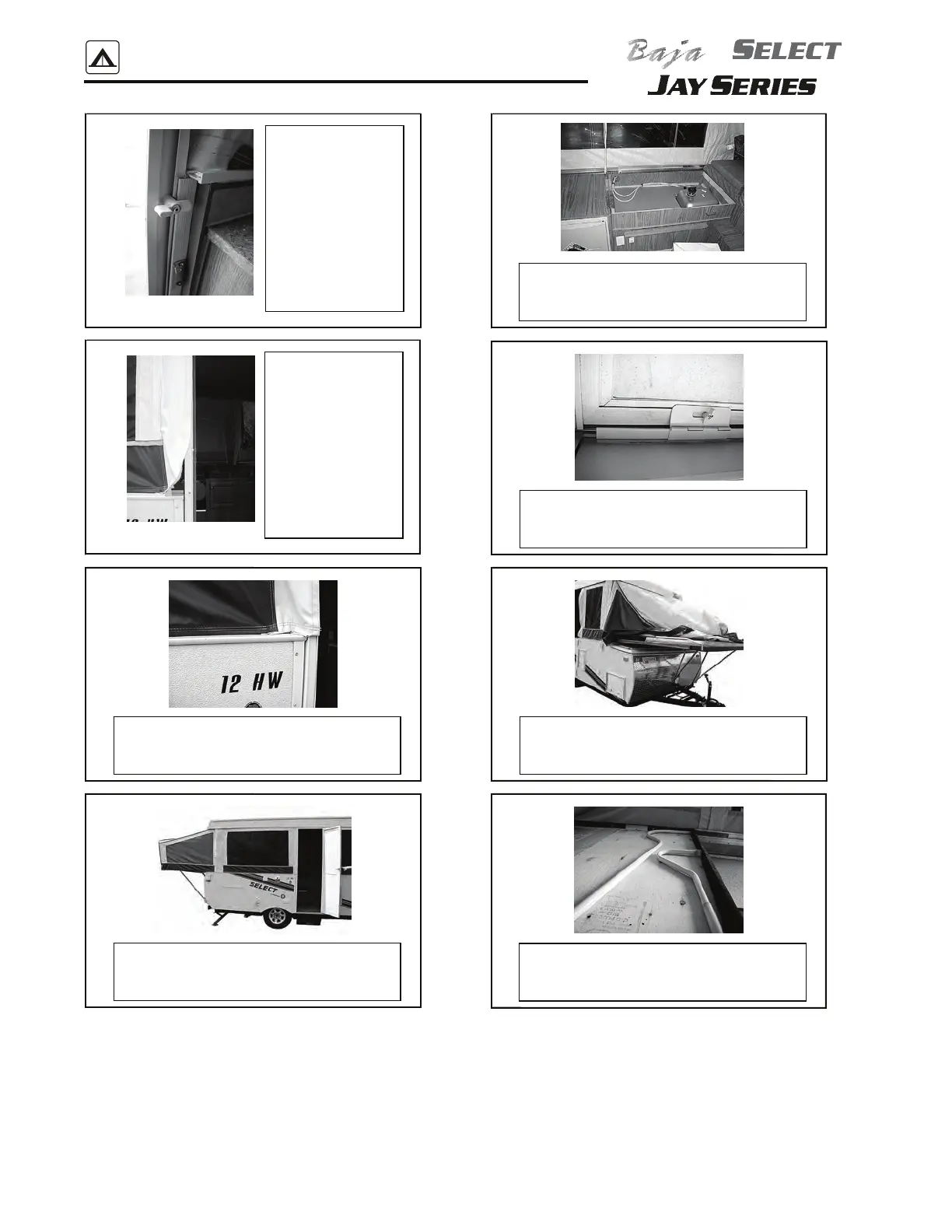

Jayco JAY SERIES - Page 74

SECTION 9
DURA-TEK TENT
70
29
Lock the
turn fasteners
to secure
screen doo
r
to unit box
30a
Fasten
velcro at
screen doo
r
sides
30b
Make sure bottom tent corners are
pulled out for water run-of
f
31
Finished setup
(shown with screen door installed and open)
32
To take tent down, make sure bed slides
are not obstructed
(2007 Select not shown in photo)
33
Reverse steps 23 – 31 to place screen door
in transit position
34
Take out all bed bow braces, and let
down bed bows; unhook velcro
around beds and slideout
35
Store bed bow braces under mat
(sharp ends placed against
bed edge trim as shown)
