58

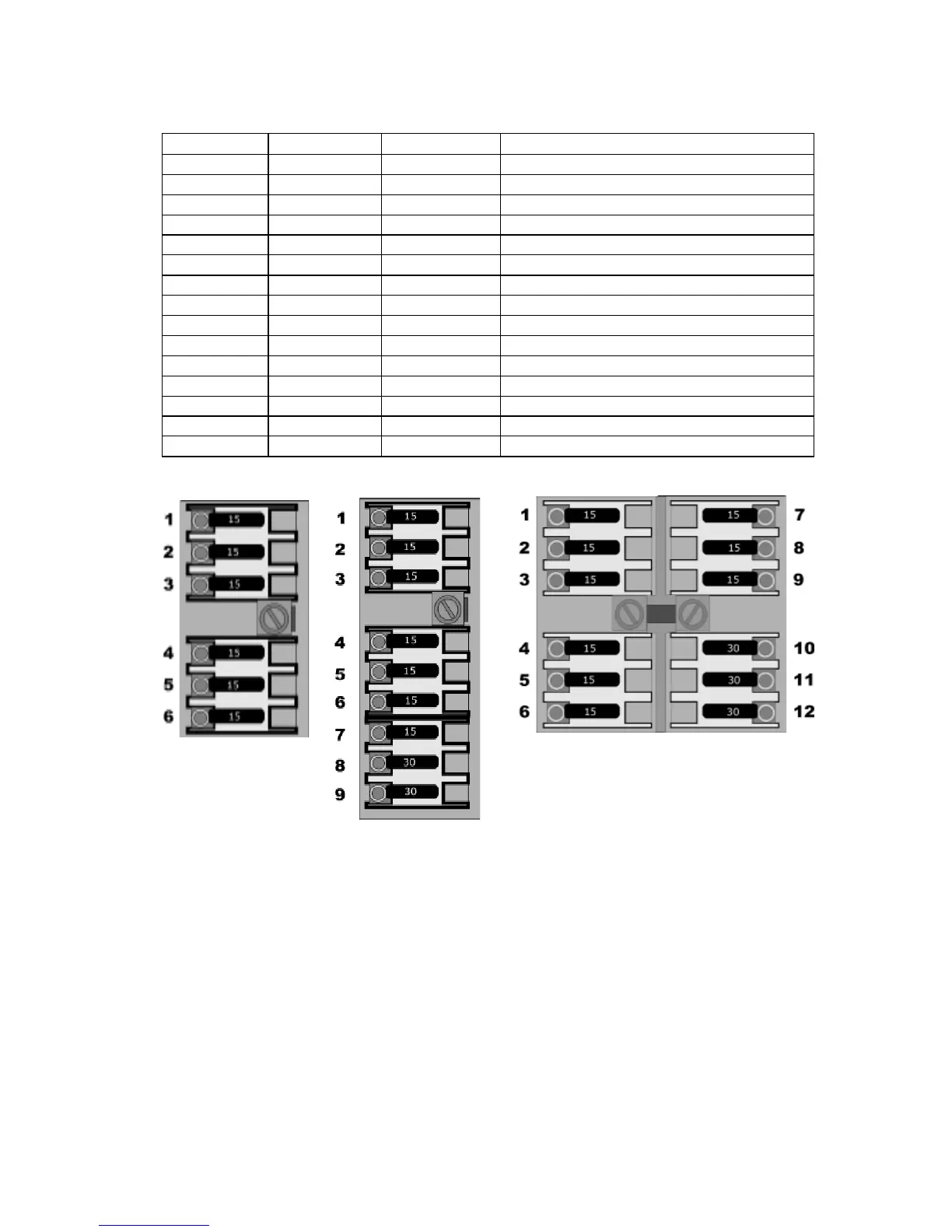

DC Fuse Panel Layout
Note: Below is a typical wiring layout. Your individual travel trailer may be different.
POSITION CIRCUIT NO. FUSE SIZE DESIGNATION
6 Positions 1 15 Monitor Panel/Range Hood/Pump
(Fig. 4-28) 2 15 Front Bed Lights
3 15 Refrigerator/Furnace
4 15 Bath Lights
5 15 Entry Lights
6 15 TV/Radio/Lights
9 positions 7 15 Main Slideout (1) Lights/Security Lights
(Fig. 4-29) 8 20 Reset Main Slideout (1) Motor
9 12.5 Reset Bed Slideout (2) Motor
12 Positions 7 15 Main Slideout (1) Lights/Security Lights
(Fig. 4-30) 8 15 Dinette Slideout (2) Lights
9 15 Spare
10 20 Reset Main Slideout (1) Motor
11 Spare +2
12 12.5 Bed Slideout (3) Motor
Fig. 4-28 Fig. 4-29 Fig. 4-30
Brakes
The electric brakes operate on 12 volt DC power from tow vehicle through blue and
white wires on 7 way pigtail and harness. More information on the brakes is found in
Chapter #3.
