Jazz DV150 Manual

26)You can Run the control wires from the switch board as shown below. Remove the tripod
mount and exit the wires out of the tripod hole.

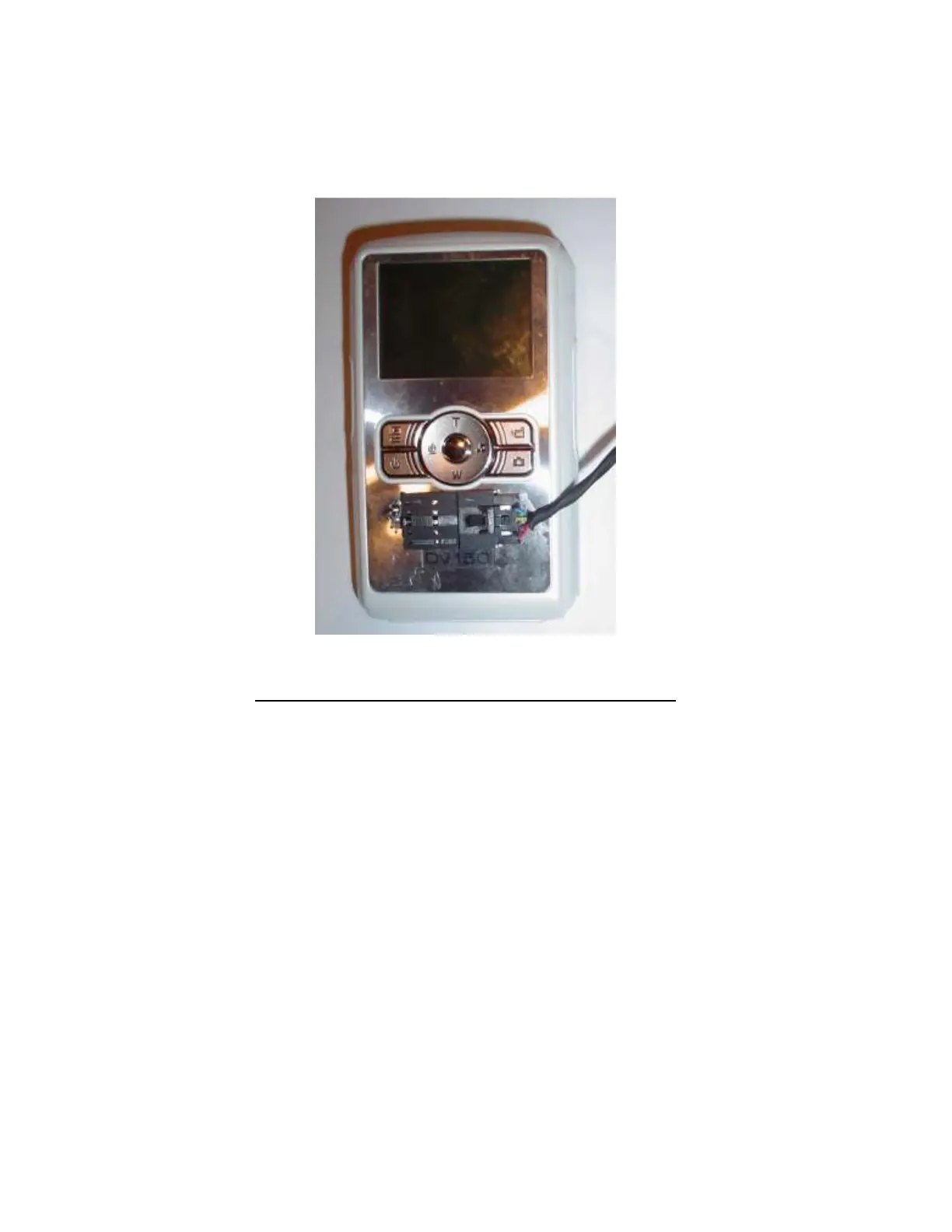

Or you can drill a small hole just below the circuit board and attach the servo connector on the
back of the Case right below the Lcd screen and above the button pad.
Connecting the Jazz to the Bigfoot board

Jazz DV150 Specifications

General

Brand	Jazz
Model	DV150
Category	Camcorder
Language	English
