18. W-DMX DONGLE INPUT: this USB-input can be used to connect an (optionally available) wireless
DMX-dongle. With this dongle you can control the projector via wireless DMX.
OVERHEAD RIGGING
Important: The installation must be carried out by qualified service personal only. Improper
installation can result in serious injuries and/or damage to property. Overhead rigging requires
extensive experience! Working load limits should be respected, certified installation materials
should be used, the installed device should be inspected regularly for safety.
Make sure the area below the installation place is free from unwanted persons during rigging, de-rigging
and servicing.
The device should be installed out of reach of people and outside areas where persons may walk by or be
seated.
Before rigging make sure that the installation area can hold a minimum point load of 10times the device’s
weight.
Always use a certified safety cable that can hold 12times the weight of the device when installing the unit.
This secondary safety attachment should be installed in a way that no part of the installation can drop
more than 20cm if the main attachment fails.
The device should be well fixed; a free-swinging mounting is dangerous and may not be considered!
Don’t cover any ventilation openings as this may result in overheating.
The operator has to make sure that the safety-relating and machine-technical installations are approved by
an expert before using them for the first time. The installations should be inspected every year by a skilled
person to be sure that safety is still optimal.
ELECTRICAL INSTALLATION
Important: The electrical installation should be carried out by qualified personal only,
according to the regulations for electrical and mechanical safety in your country.
Electrical installation for 1 standalone unit:
Insert the mains cable. The unit starts working immediately in the last selected mode.
Refer to chapter HOW TO SETUP to learn how to switch between the different working modes.

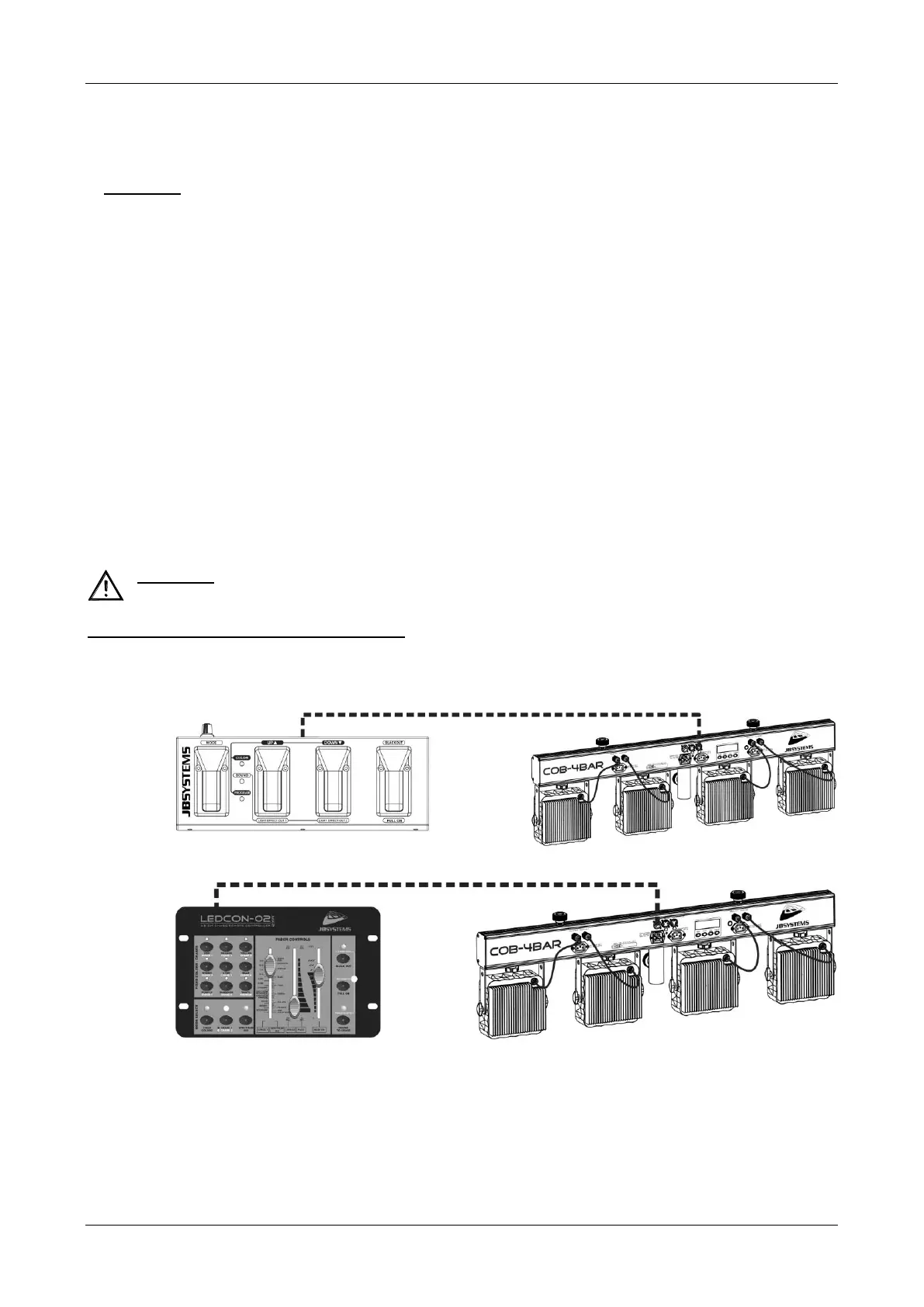

If you like, you can control the unit using the optionally available:
COB-4BAR FOOTCONTROL: foot controller, perfect for music bands etc.
LEDCON-02 Mk2: (must be Mk2 version!) perfect for use by DJs!
See chapters HOW TO SETUP and OPERATING INSTRUCTIONS for more information.
