ENGLISH OPERATION MANUAL
JB SYSTEMS® 1/82 SCANMASTER 1612 (SM-1612)
OPERATION MANUAL
Thank you for buying this JB Systems product. To take full advantage of all
possibilities, please read these operating instructions very carefully.
FEATURES
• 192 DMX channels
• 12 Fixtures of 16 channels each (best used with fixtures having up to 8 channels)
• 30 Banks of 8 programmable scenes (total = 240 scenes)
• 6 Programmable chases of 240 scenes
• 8 Sliders for manual control of channels
• Assignable joystick for ease of use
• File Dump allows data to be sent or received between two units
• Auto mode program controlled by speed and fade time sliders
• Fade time/Assign fade time
• Reversible DMX channels allows fixture to react in opposition to others in a chase
• 8 channel or 16 channel mode
• Fine adjustment for joystick pan and tilt
• Blackout master button
• Manual Override button allows you to grab any fixture on the fly
• Built in microphone for music triggering
• MIDI control over banks, chases and blackout
• DMX Polarity selector
• Power failure memory
BEFORE USE
Check the contents:
Check that the carton contains the following items:
• Scanmaster 1612 (SM-1612)
• AC/DC adapter
• Operating instructions
Some important instructions:
• To prevent fire or shock hazard, do not expose this appliance to rain or moisture.
• In order to prevent electric shock, do not open the cover. If a problem occurs, contact
your dealer.
• Don’t place metal objects or spill liquid inside the unit. Electric shock or malfunction
may result.
• Prevent use in dusty environments, clean the unit regularly.
ENGLISH OPERATION MANUAL
JB SYSTEMS® 2/82 SCANMASTER 1612 (SM-1612)
Some words explained:
•
SCENE:
A scene is a set of different fader values that describes a certain condition
at a given moment.
Example
: You have set the faders on the SM-1612 to put a fixture in a certain
direction, with a certain gobo and a certain color. The combination of these different
fader values is called “SCENE”
•
BANK
: On the SM-1612 there are 8 scene buttons. Under each scene button a
scene can be stored. To have a total of 240 scene memories you need to put these
scenes in banks. That is why you have 30 banks with each 8 scenes: 30 x 8 = 240
scenes.
Example:
BANK1 (scene1 ; scene2 ; scene3 ; … scene8)
BANK2 (scene1 ; scene2 ; scene3 ; … scene8)
BANK3 (scene1 ; scene2 ; scene3 ; … scene8)
…
BANK30 (scene1 ; scene2 ; scene3 ; … scene8)
• CHASE
: On the SM-1612 there are 6 programmable chases. A chase is a
succession of scenes. This succession of scenes can be programmed by the user in
any order. One chase contains a maximum of 240 scenes.
•
SPEED
: time between 2 scenes in a chase running in automatic mode.
• FADE TIME
: This is the amount of time it takes for a fixture (or fixtures) to move from
one place to another.
•
PAN/TILT
: PAN means moving horizontally or moving on the X-axis.
TILT means moving vertically or moving on the Y-axis.

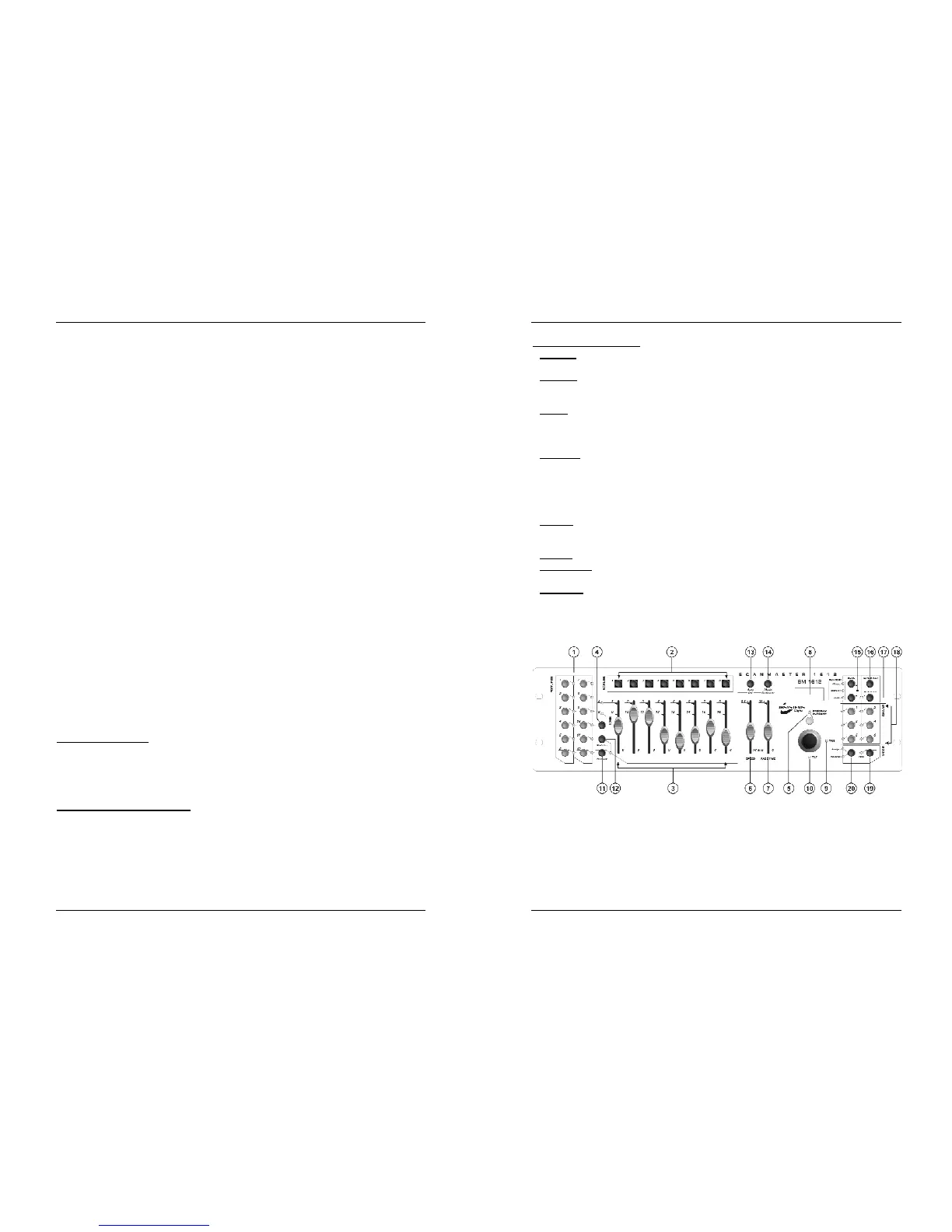

FUNCTIONS (FRONT)
1. FIXTURE BUTTONS: Used to select one or more fixtures.
2. SCENE BUTTONS: Used to load or store a certain scene.
3. FADERS: Used to control the values of the different channels.
4. PAGE SELECT BUTTON: Every fixture can have up to 16channels. These 16
channels are divided over 2 pages with each 8 channels (faders):
• PAGE A: channels 1Æ8
• PAGE B: channels 9Æ16
