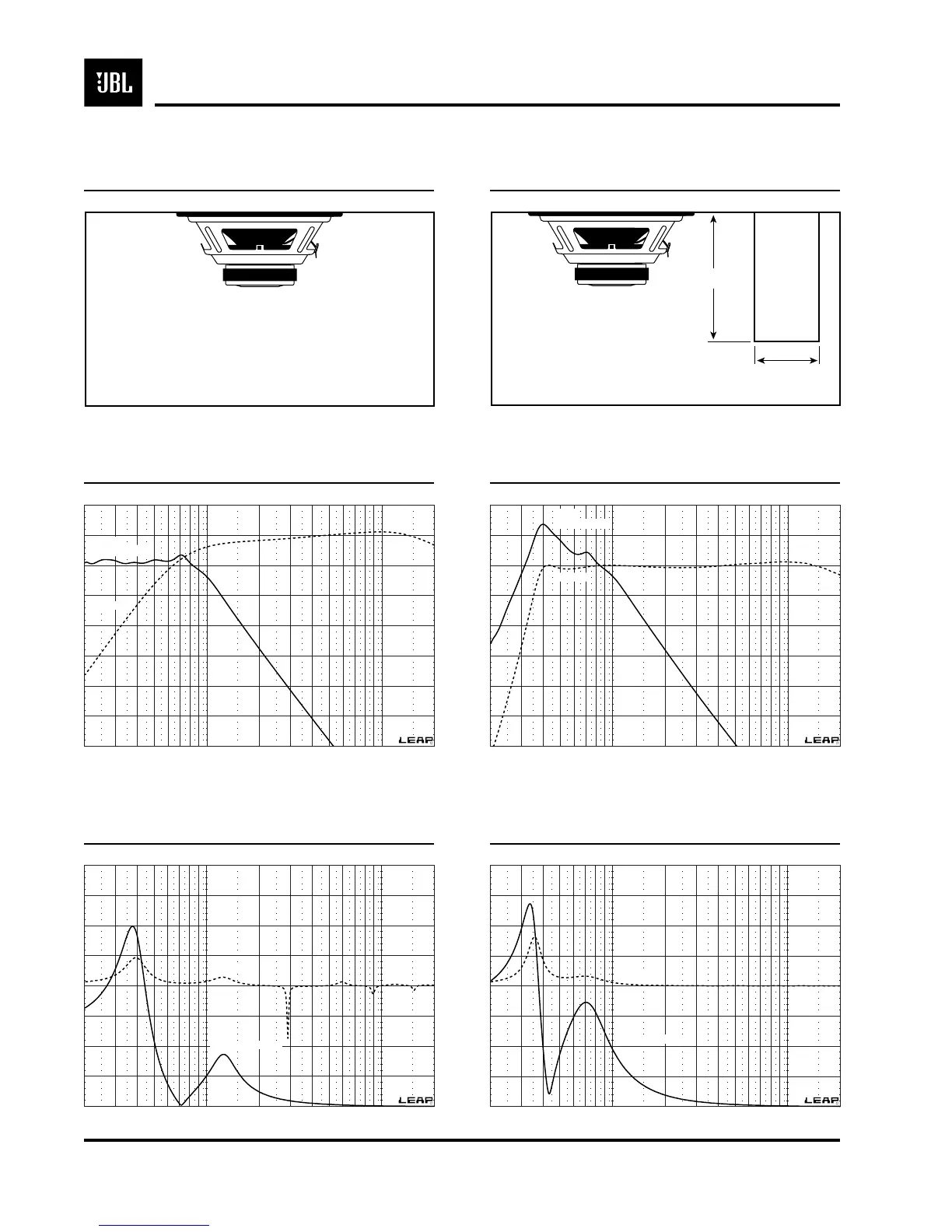

JBL 1000GTi - Enclosure Volume Configurations; Sealed Box Volume; Vented Box Volume; Performance Graphs by Enclosure Type

SEALED
BOX VOLUME
SEALED
FREQUENCY RESPONSE @ 2.83 V
SEALED
EXCURSION/GROUP DELAY @ 300 W
VENTED
BOX VOLUME
VENTED
FREQUENCY RESPONSE @ 2.83 V
VENTED
EXCURSION/GROUP DELAY @ 375 W
1000GTi 10" Woofer – Technical Data
7•48 . . . . . JBL Technical Data
GTi1000
(side view)
Port
f
o
= 42 Hz
diameter = 4.0"
length = 7.26"
V
BOX
= 1.50 ft
3
(42.48 liters)
(all sides lined with 1-inch fiberglass or fiberfill)
C
dB
105
100
95
90
85
80
75
70
65
20 Frequency 50 100 Hz 200 500 1k 2 k
Out-Of-Car
In-Car
12 dB LP @ 90 Hz
C
Xd mM
20.0
17.5
15.0
12.5
10.0
7.5
5.0
2.5
0
T mSec
100
75
50
25
0
-25
-50
-75
-100
20 Frequency 50 100 Hz 200 500 1k 2 k
Transducer Excursion
Group Delay
V
BOX
= 1.75 ft
3
(49.56 liters)
(all sides lined with 1-inch fiberglass or fiberfill)
GTi1000
(side view)
C
dB
100
95
90
85
80
75
70
65
60
20 Frequency 50 100 Hz 200 500 1k 2 k
Out-Of-Car
In-Car
12 dB LP @ 70 Hz
C
Xd mM
20.0
17.5
15.0
12.5
10.0
7.5
5.0
2.5
0.0
T mSec
100
75
50
25
0.0
-25
-50
-75
-100
20 Frequency 50 100 Hz 200 500 1k 2 k
Transducer Excursion
Group Delay
