CHANNEL 2
PROGRAM SOURCE
CHANNEL 1
PROGRAM SOURCE
(LOW FREQUENCY"
LOUDSPEAKERS)
LOUDSPEAKER SYSTEM
OPTIONAL

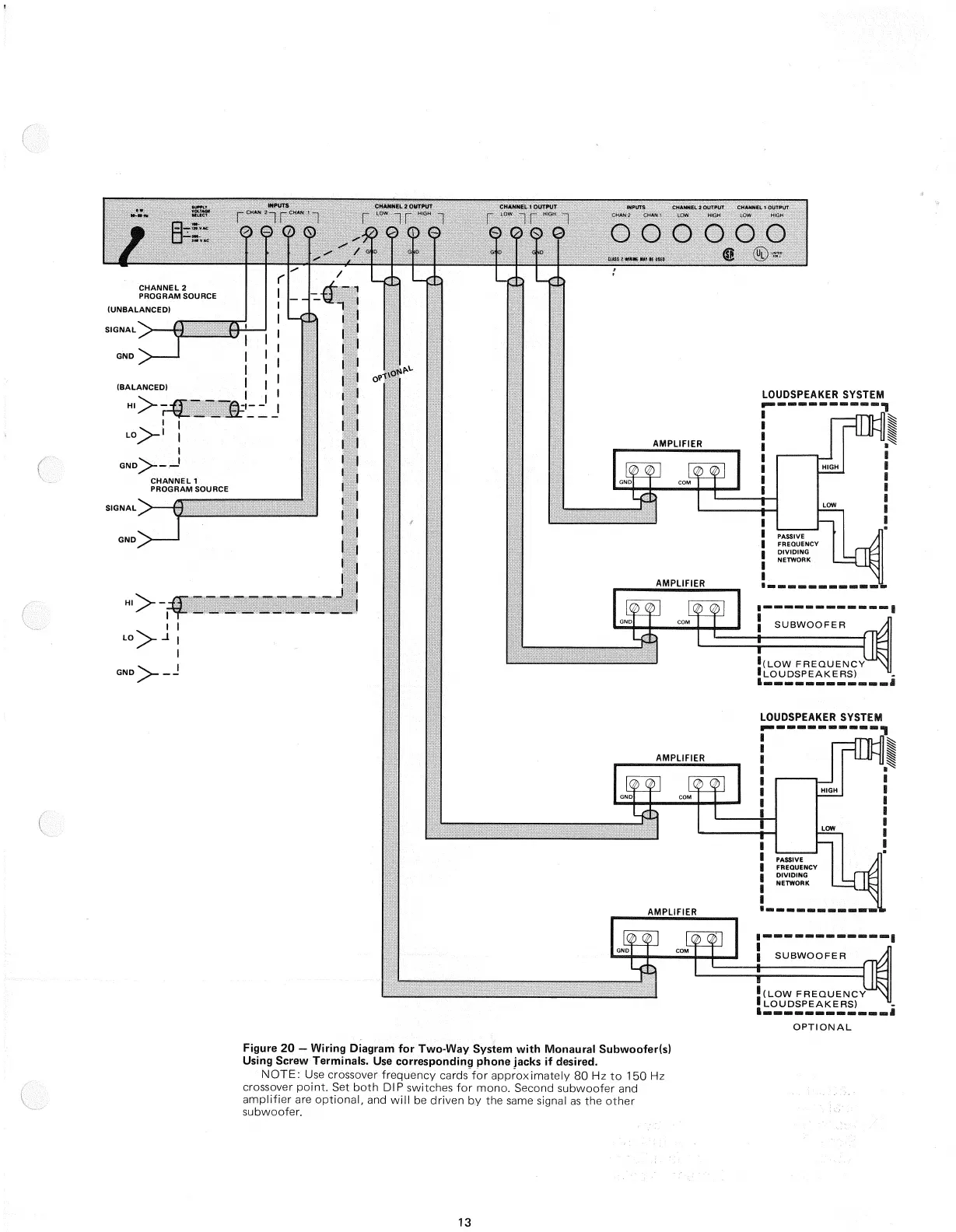

Figure 20 — Wiring Diagram for Two-Way System with Monaural Subwoofer(s)
Using Screw Terminals. Use corresponding phone jacks if desired.
NOTE: Use crossover frequency cards for approximately 80 Hz to 150 Hz
crossover point. Set both DIP switches for mono. Second subwoofer and
amplifier are optional, and will be driven by the same signal as the other
subwoofer.
13
(UNBALANCED)
SIGNAL
(BALANCED)
SIGNAL
AMPLIFIER
AMPLIFIER
LOUDSPEAKER SYSTEM
PASSIVE
FREQUENCY
DIVIDING
NETWORK
HIGH
LOW
SUBWOOFER
HIGH
LOW
PASSIVE
FREQUENCY
DIVIDING
NETWORK
AMPLIFIER
SUBWOOFER
(LOW FREQUENCY
LOUDSPEAKERS)
