JBL CONTROL 25T/WH
JBL CONTROL 25T/WH

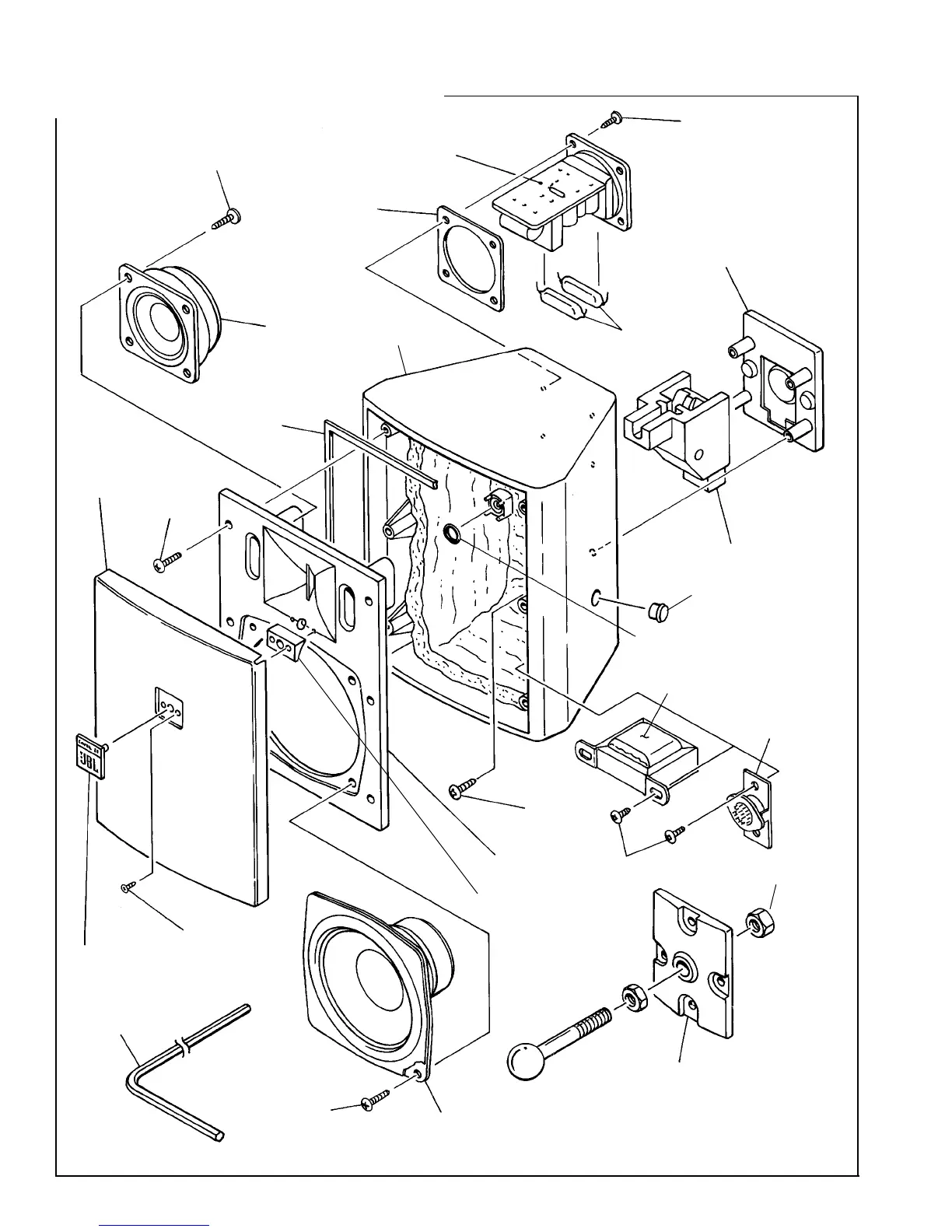

COMPONENT EXPLODED VIEW
Speaker,
High Freq
123-00001-00
Grille Assy
128-00163-60 BLK
128-00163-61 WHT
SK3
Lamp (2)
Gasket
(Ref)
Gasket
(Ref)
Network
338142-001
Pivot
888-00026-00
Switch Plug
921-00008-00
Cabinet
(Not For Sale)
“O” Ring
*
Hardware Kit
179-00005-00
Ball Mount Assy
179-00002-00 BLK
179-00002-01 WHT
Screw (4)
*
Baffle Assy
380-00007-00
Speaker, Low Freq
124-10000-00
Screw (4)
*
Screw (2)
*
Hex Wrench
885-00019-00
6mm x 4
JBL Logo
950-00007-00
Enclosure Plate
888-00025-00
Screw (4)
*
Screw (4)
*
Screw (6)
*
Nut 7/16 x 20 (2)
Grille Spacer
389-00001-00
Screw (4)
*
Transformer/Switch Assy
562-00027-00
Switch
546-00003-00
Blank Logo (Black)
950-00007-BK
Blank Logo (White)
950-00007-WH
