JBL CONTROL ONE AW User Manual

2
uNPACkiNg ThE sYsTEM
Carefully unpack the system. If you suspect damage from transit,
report it immediately to your dealer and/or delivery service. Keep
the shipping carton and packing materials for future use. Open the
package and verify the following contents:
INCLUDED
2 JBL Control One AW speakers
2 x wall-mount, rotatable brackets
(includes bar wrench and backup cords)
1 x Owner’s Manual
PLACiNg ThE sPEAkERs

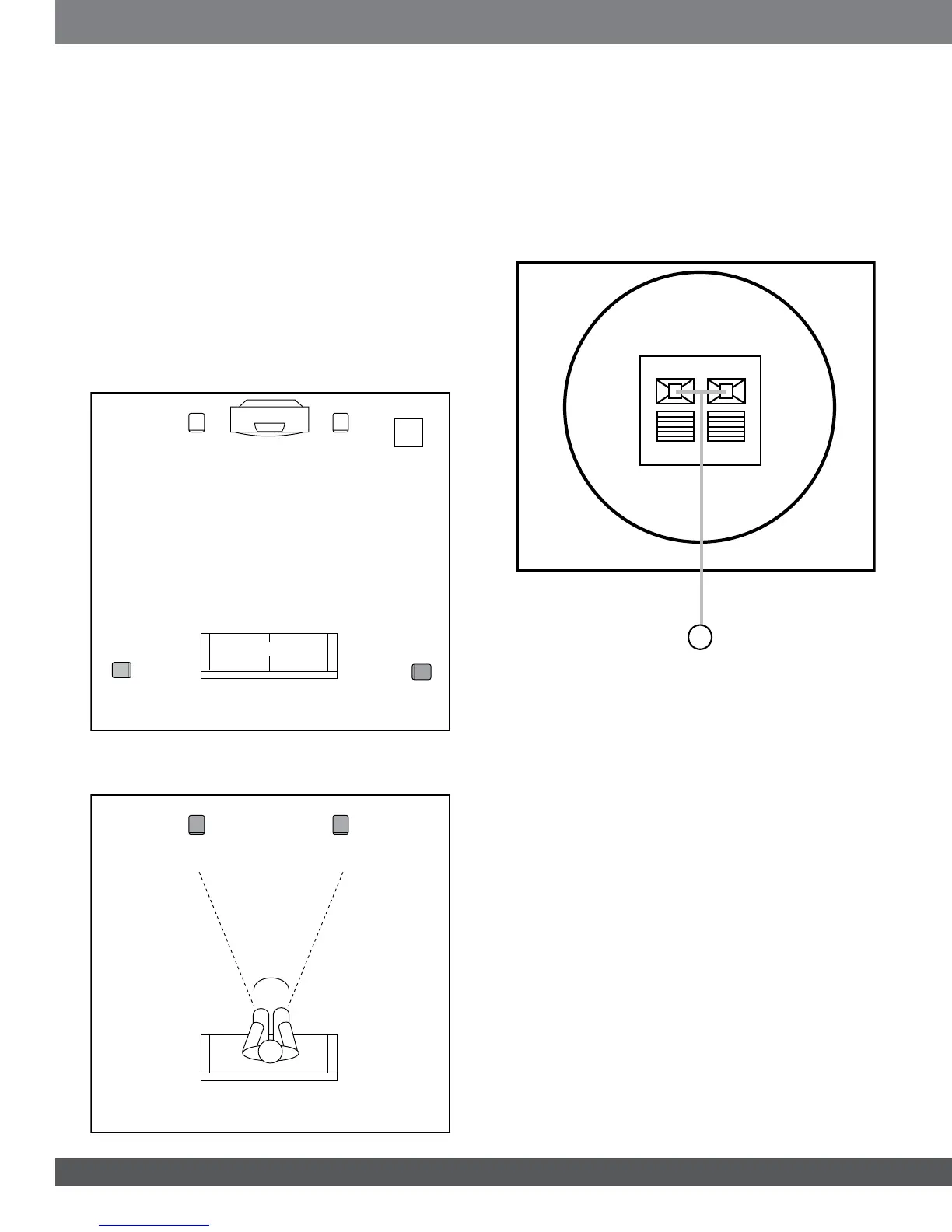

Determine where to place the speakers. The following figures show
two possible applications.
Application 1: Adding surround speakers to a home theater system.
Left
Surround
Channel
Right
Surround
Channel
Left Front
Channel
Subwoofer
Right Front
Channel
Center
Channel
Couch
Application 2: Adding speakers to remote locations in your home.
Left Rear
Channel
Right Rear
Channel
Center Rear
Channel
Left Front
Channel
Right Front
Channel
45
o
CONNECTiNg ThE sPEAkERs
Connect the speaker wire (included) to the push terminals on the
rear of the speaker (10). Please note that the speaker wire supplied
features a polarity stripe to help distinguish its two conductors. Use
this polarity stripe to ensure that you are connecting the positive (+)
terminal on the JBL Control One AW speakers to the positive (+)
terminal on the amplifier, and the negative (-) speaker terminal to the
negative (-) speaker terminal. It does not matter whether you use
the striped conductor for connecting the postive (+) terminals or the
negative (-) terminals.
+–
10
WALL ANd sTANd PLACEMENT
Adjustable wall brackets are included for the JBL Control One AW
speakers. The included brackets are for wall-mounting only.
Ceiling-mounting of the JBL Control One AW speakers is not
recommended, regardless of the bracket used.
WALL-MOUNTING THE SPEAKERS USING INCLUDED WALL
BRACKETS
IMPORTANT SAFETY NOTE: Proper selection of mounting
hardware not included herein, and proper assembly and
installation of brackets, in cluding, but not limited to, selection
of appropriate weight-bearing support and bracket use with
the specified speaker only is the exclusive responsibility of the
customer. Manufacturer disclaims any liability for the selection
of mounting hardware and/or bracket installation.

JBL CONTROL ONE AW Specifications

Audio Specifications

frequency range	80Hz – 20kHz
power handling (peak/continuous)	200W/50W
maximum recommended amplifier power	100W RMS
low-frequency driver	4" (100mm), magnetically shielded
high-frequency driver	1/2" (12mm) titanium-laminate, magnetically shielded
sensitivity	87dB/2.83V/1m
nominal impedance	8 Ohms

Weight and Dimensions

dimensions (H x W x D)	9" x 6-1/8" x 5-1/2" (229mm x 156mm x 140mm)
weight	4.3 lb (2.0kg)
