Important safety note: Proper
selection of mounting hard-
ware not included herein and
proper assembly and installa-
tion of brackets, including but
not limited to selection of
appropriate weight bearing
support and bracket use with
the specified speaker only is
the exclusive responsibility
of the customer. Manufac-
turer disclaims any liability
for the selection of mounting
hardware and or bracket
installation.

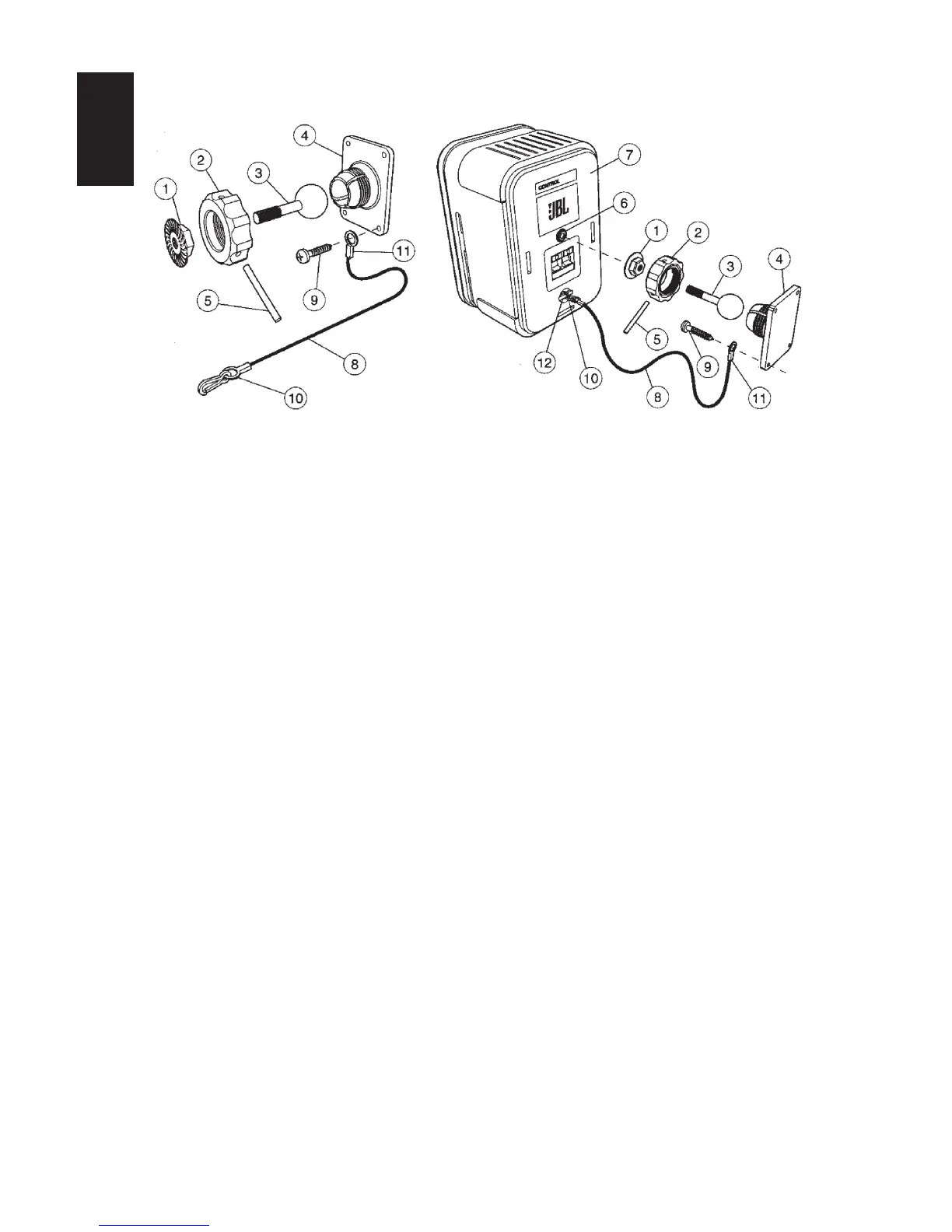

a. Loosen and remove the
molded nut
™
by turning it
counter clockwise. Use the
supplied metal bar
∞
if
necessary by inserting it in
one of the holes on the
molded nut
™
.
b. Pull the ball/shaft
£
out of
the wall bracket
¢
.
c. Slide on the molded nut
™
onto the ball/shaft
£
with
threaded opening facing
the ball, and thread on the
metal nut
¡
all the way
onto the ball/shaft
£
, with
the nut
¡
’s ”knurled” sur-
face facing away from the
ball.
d. Screw on the ball/shaft
£
into the threaded insert on
the back of the speaker
cabinet
§
until it is fully
seated against the bottom
of the insert.
e. Tighten the ”knurled” nut
¡
using a crescent
wrench until it is firmly
seated against the back of
the speaker and has fully
locked the ball/shaft
£
and
the speaker cabinet
together. Pleace note that
once this nut is tightened, it
may embed some marks on
the back of the speaker
where the attachment is
made. However, these
marks will be covered by
the nut
¡
.
f. The back-up cord
•
pro-
vided as an additional mea-
sure to prevent the fall of
the speaker in case the
speaker becomes detached
from the wall bracket. One
of the two lower screws
ª
that attach the wall bracket
¢
to the wall, will need to
go through the eyelet
⁄
at
the end of the cord before
going through the wall
bracket hole. Mount the
wall bracket
¢
onto a
wood stud on the wall,
using #10, minimum 1 inch
long, pan head wood
screws. Make sure that all
4 screws are driven into the
stud and not in drywall. If
the bracket needs to be
mounted on drywall, the
use of properly selected
and installed wall-anchors
and screws is essential.
Make sure that the screw
head is at least 0.36 inches
(approximately 3/8 inches)
or larger in diameter so that
it can properly hold the
backup cord eyelet
⁄
.
g. Holding the speaker cabi-
net
¶
with both hands,
reinsert the ball portion of
the ball/shaft
£
into the
wall bracket
¢
.
h. Hand tighten the molded
nut
™
while positioning the
speaker for the intended
orientation.
i. Once the orientation of the
speaker is finalized, use the
metal bar
∞
in one of the
holes on the molded nut
™
and tighten securely.
j. Securely attach the other
end
‚
of the backup cord
•
to the Control ONE, by
engaging it through the bar
¤
on the back speaker.
CONTROL ONE Bracket assembly and mounting:
