CAUTION - TO REDUCE THE RISK OF
ELECTRIC SHOCK, GROUNDING OF THE
CENTER PIN OF THE PLUG MUST BE
MAINTAINED.
1 - CH1 TO AMP2
2 - CH2 TO AMP2
3 - CH3 TO AMP2
4 - CH4 TO AMP2
5 - AMP1 Hi-Z
6 - PHANTOM
7 - CH5 TO AMP1
8 - CH6 TO AMP1
9 - CH7 TO AMP1
10 - CH8 TO AMP1
11 - AMP2 Hi-Z
12 - NC
F J

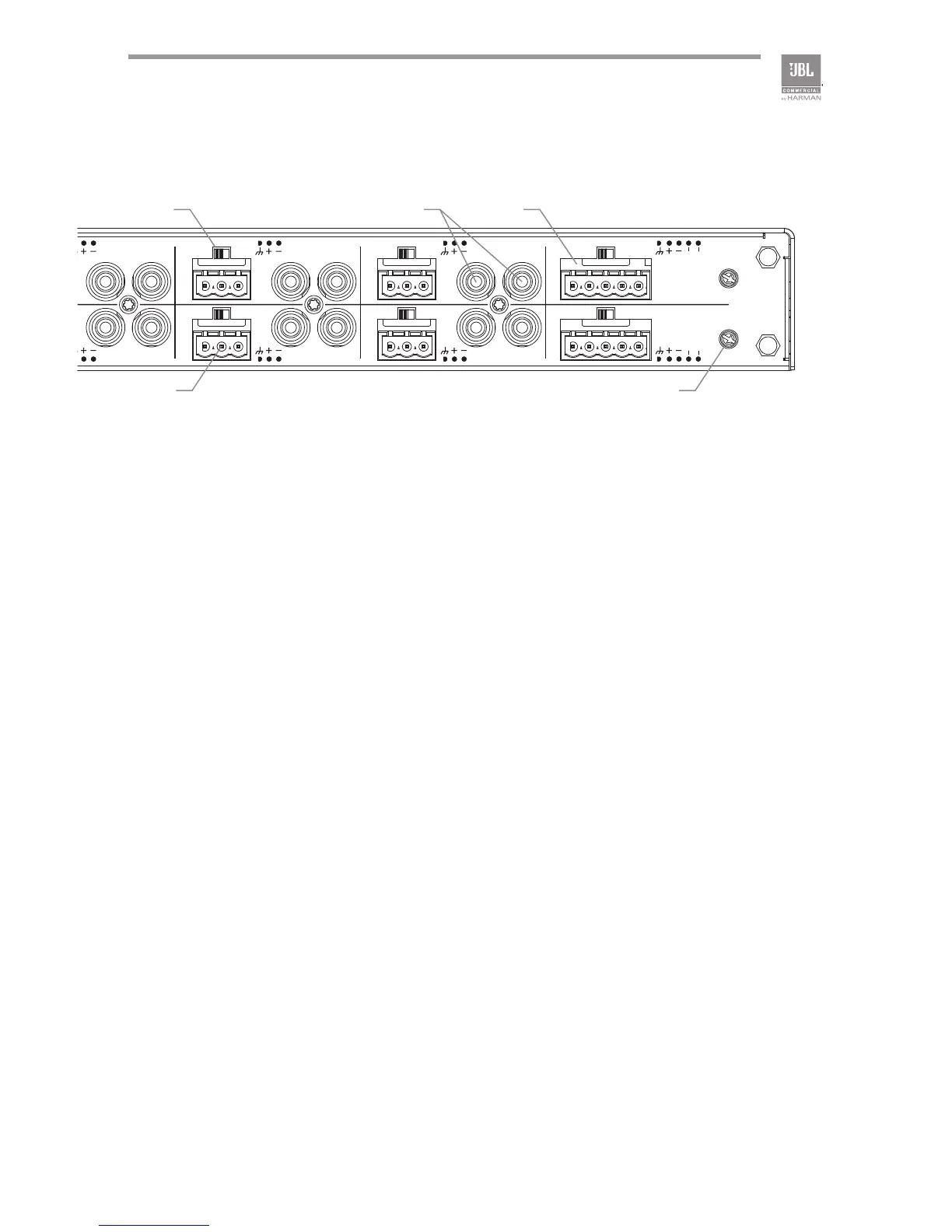

F. Mic/Line Input Connector – 3 pin Euro-block connector for a balanced input
source. (Ch 2-4 & 6-8)
G. Dual RCA Input Connector – Stereo, unbalanced sources will be summed
together. (Ch 2-8)
H. Priority Input Connector – 5 pin Euro-block includes 3 pins for a balanced
input as well as two pins that, when shorted together, activates the priority
function. (Ch 1 & 5)
I. Mic/Line Selection Switch – Allows the user to select the gain depending upon
the source used.
J. VOX Adjustment – Allows the input level to be set that will invoke priority
override. (Ch 1 & 5)
