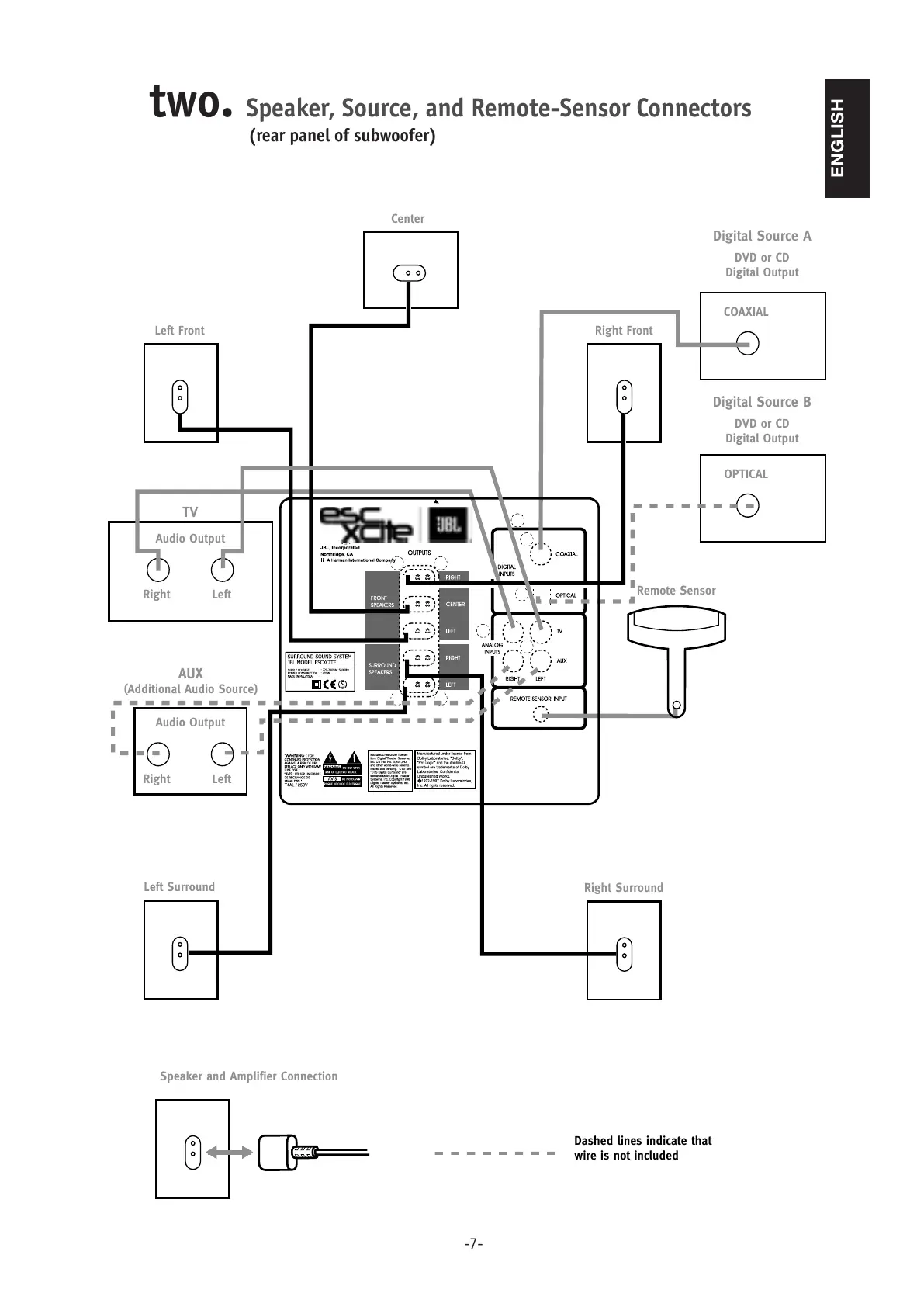

two. Speaker, Source, and Remote-Sensor Connectors
(rear panel of subwoofer)
Speaker and Amplifier Connection
Dashed lines indicate that
wire is not included
Left Front
TV
Audio Output
OPTICAL
Right Left
Center
Right Front
Remote Sensor
COAXIAL
Right Surround
Left Surround
AUX
(Additional Audio Source)
Audio Output
Right Left
Digital Source A
DVD or CD
Digital Output
Digital Source B
DVD or CD
Digital Output
