CONNECTIONS – GTO301.1/GTO301.1II
The GTO subwoofer amplifiers are
single-channel amplifiers. There are
two sets of terminals to make it easy
to connect multiple woofers. Either
set of (+/–) terminals may be used
when connecting woofers.
To the right are two application
diagrams to help plan your subwoofer
system installation.
Figures 2 and 3
show how to configure the GTO
subwoofer amplifiers
NOTE: For simplicity, Figures 2 and 3
do not show power, remote and input
connections.
NOTE: Minimum speaker load is
2 ohms.
3
GTO Amplifier
(partial end panel)
Subwoofer
–
+
GTO Amplifier
(partial end panel)
Subwoofer Subwoofer
+
–
–
+

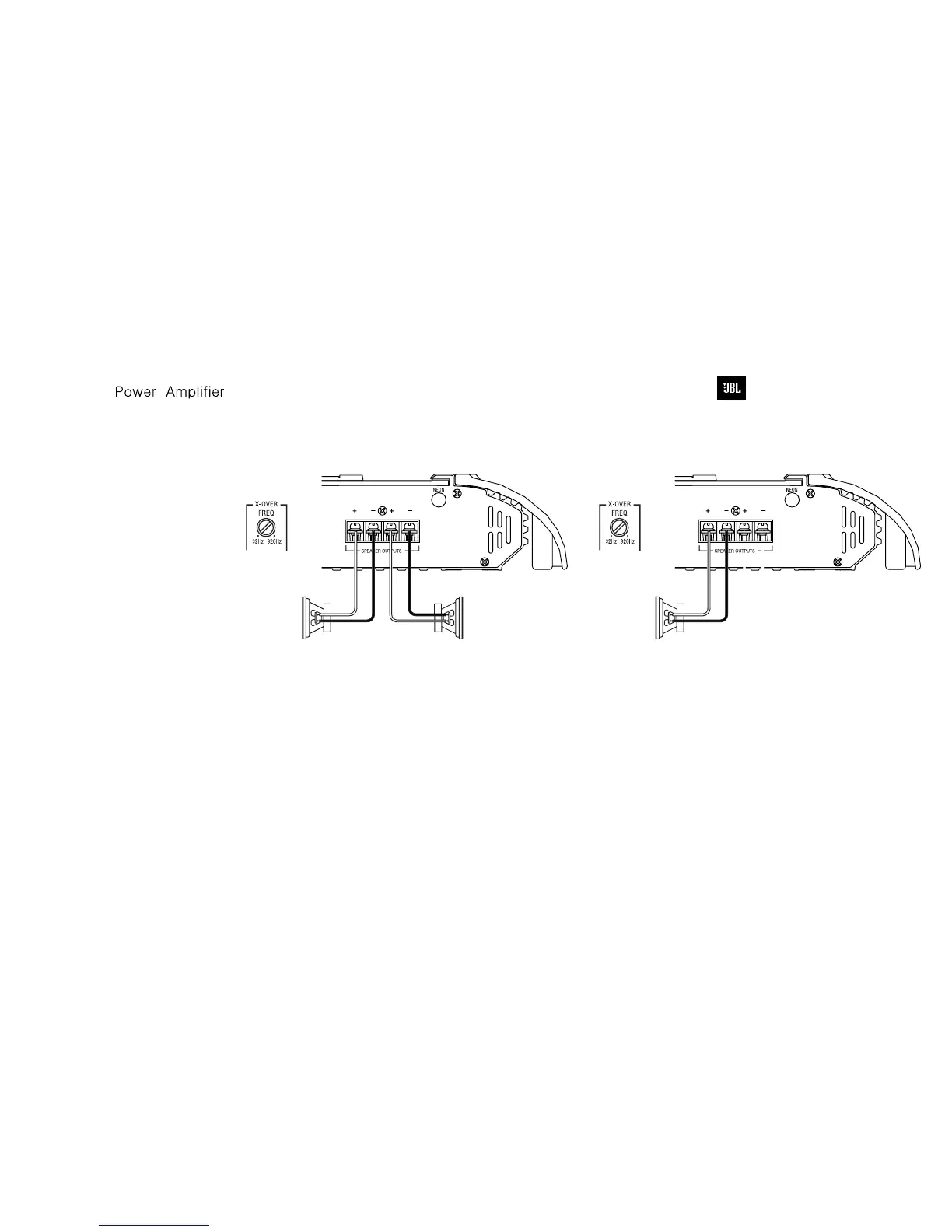

Figure 2. GTO subwoofer amplifier with two woofer connections.
Figure 3. GTO subwoofer amplifier with one woofer connection.
