JBL GX-A604 Owner's Manual

www.jbl.com
English
13
13
GX-A602 INPUT CONNECTIONS: 2-CHANNEL OPERATION

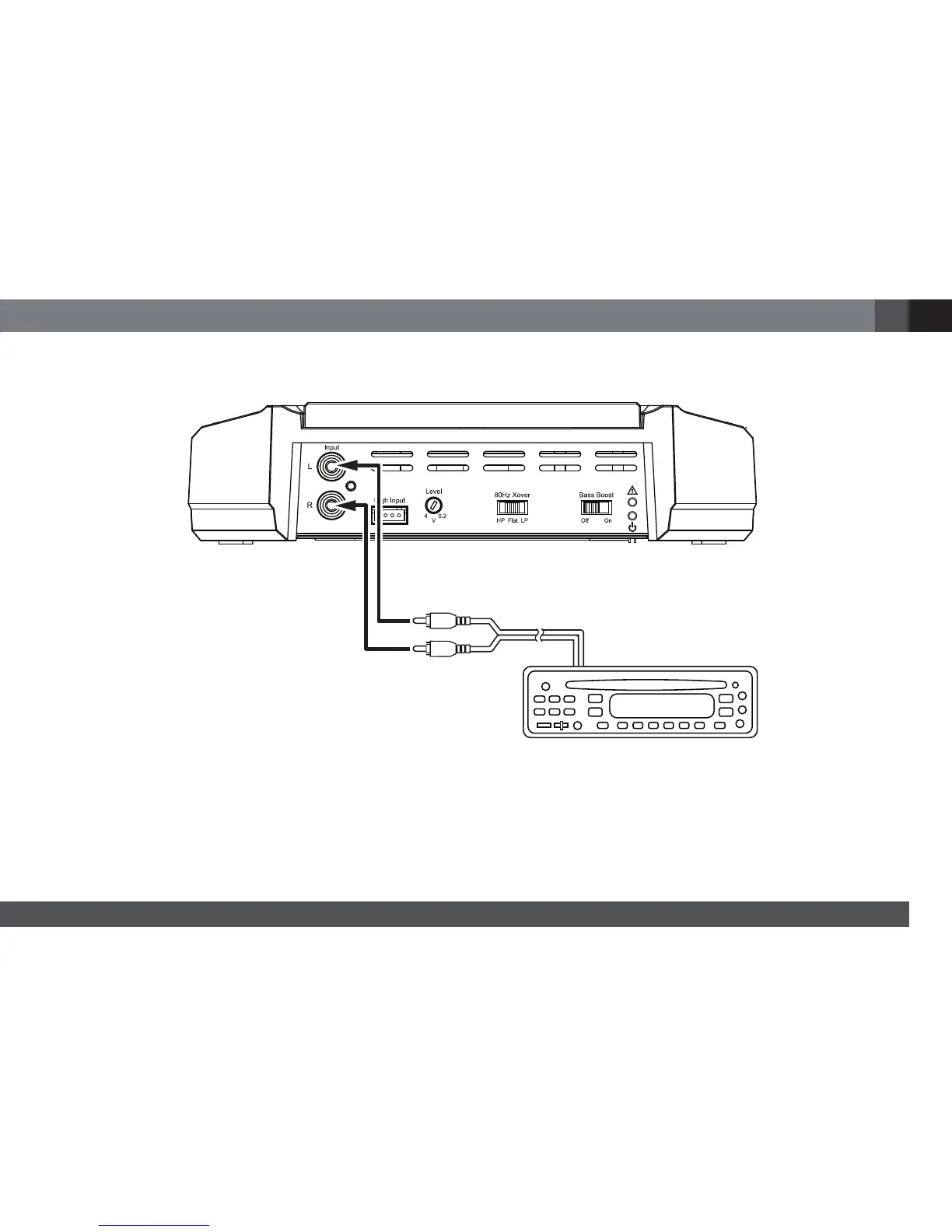

Connect your source unit or processor's line outputs as shown in the illustration below.
L+L–R–R+
Source Unit
Line Outputs
See Set The Crossover Controls, on page 11, for information about setting the amplifier's controls for 2-channel operation.
To use the speaker level inputs instead of the line-level inputs, see Using The Speaker-Level Inputs, on page 12.

JBL GX-A604 Specifications

General

Signal-to-Noise Ratio (SNR)	93 dB
Number of amplifier channels	4 channels
Frequency response	20 Hz
