JBL/Infinity Soundbar Quick-Start Guide
Connectingtoamobilephoneorportableaudiodevice
Connectthemobilephon e’sorportabledevice’sheadphoneporttothesoundbar’sblack3.5mmaudio
cable,asshownintheillustrationbelow.

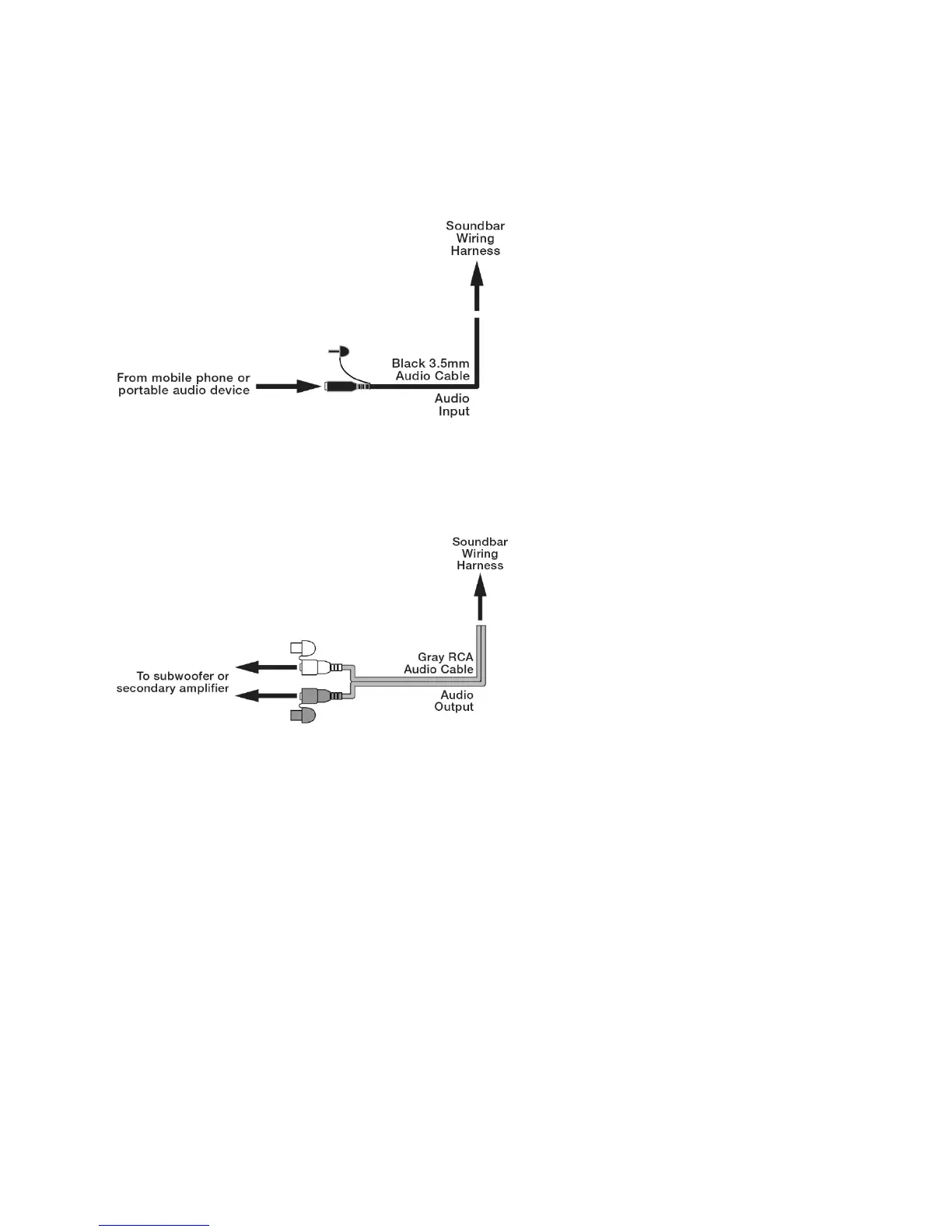

[Insertillustration:“PhoneConnect_090516.ai”]

Connectingtoasubwooferorsecondaryamplifier
Connectthesubwooferorasecondaryamplifiertothesoundbar’s(gray)audiooutputcable,asshown
intheillustrationbelow.
[Insertillustration:“SubwooferConnect_090516.ai”]

Afteryouhavecompletedallofthesoundbarconnections:
1.Insertthe40Afuseintothefuseholderyouinstalledonthesoundbarpowerwire.
2.Re‐connectthevehicle’snegative(–)batteryterminal.
3.Forcompletesetupandoperationinformation,downloadthefull[Soundbar]UserManualat
[jbl.com][infinitysystems.com].
Specifications
Frequencyresponse: 20Hz–20kHz
MaximumSPL: 100dB
Totalamplifierpower: 160watts
Drivers: 4xlong‐excursion4”woofers;2x1”tweeters
Dimensions(assembled,LxWxH): 31‐1/2”(800mm)x6‐1/8”(155.5mm)x5‐1/16”(128mm)
Weight(net): 19.8lb
(9kg)
